Eneo IRLED-402E: DE EN FR PL RU

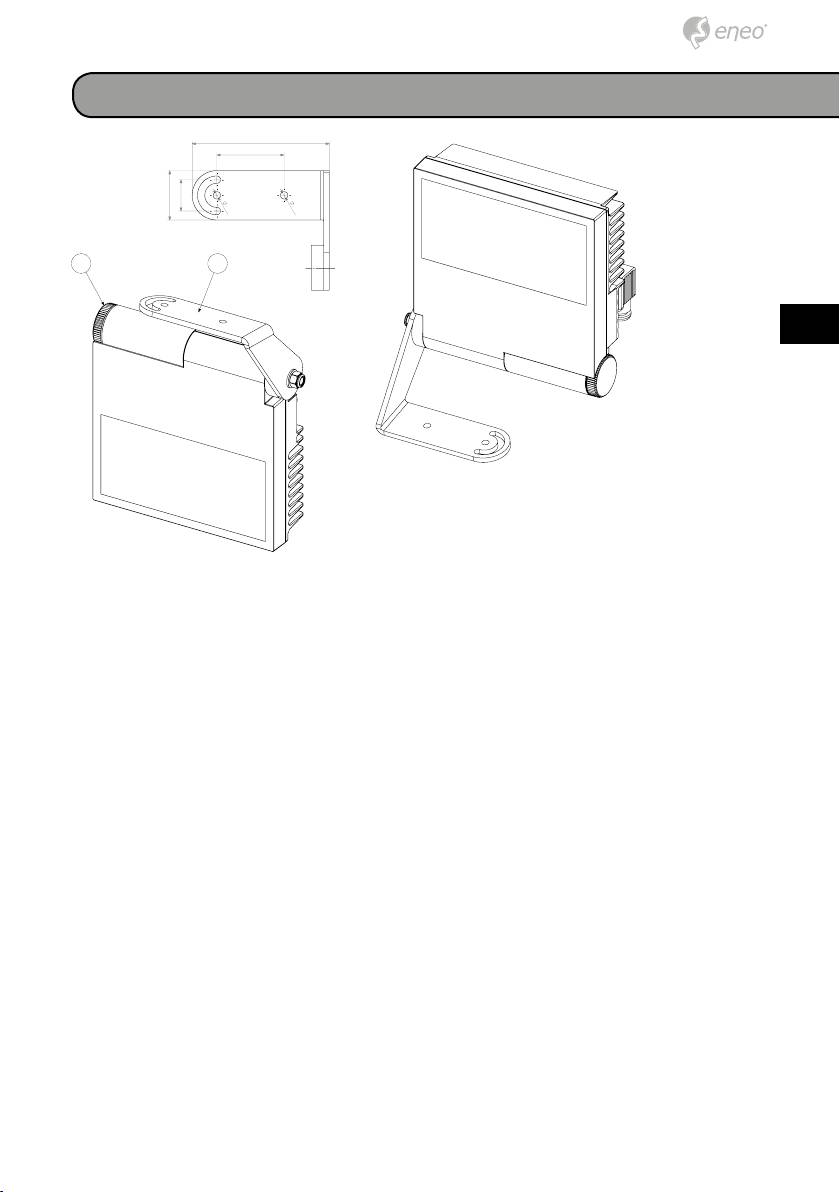

Ceiling or parapet mounting

60

44

28

6,5

6,5

AB

DE

EN

FR

PL

RU

• Install the illuminator in a properly airy zone.

• Place the bracket ⓐ in the desired position against the ceiling or para-

pet.

• To make this operation easier, it is possible to loosen the knurled hand-

wheel ⓑ or in case the nut opposite to the handwheel, and rotate the

bracket ⓐ as to the illuminator.

• Mark the position of mounting holes.

• Make the mounting holes, taking into consideration the type of material,

which the wall or the ceiling is made of, and the type of fixings to be

used.

• Mount the bracket ⓐ to the ceiling or parapet in a firm way.

• If loosened during the bracket installation, please remember to tighten

the knurled handwheel ⓑ and/or the nut opposite to the handwheel.

17

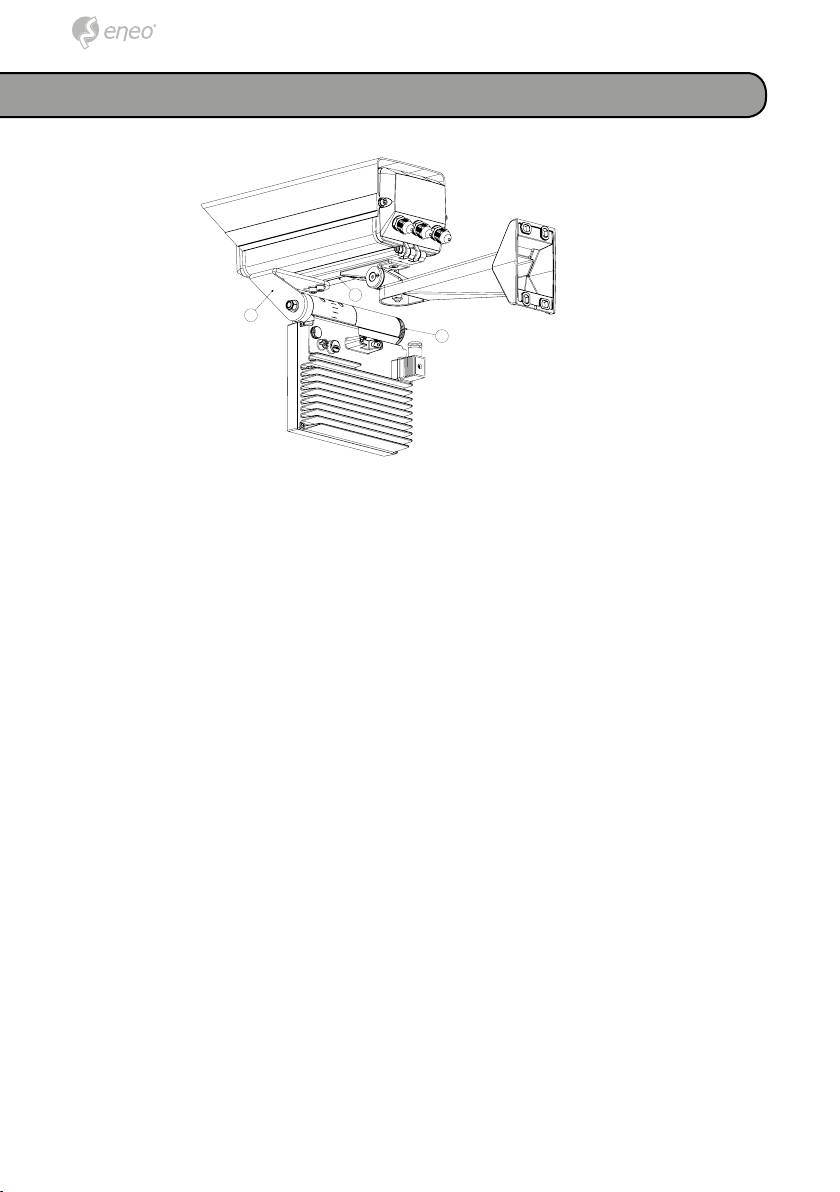

Mounting to a camera housing

C

A

B

• Install the illuminator in a properly airy zone.

• To make the nuts positioning inside the external slide easier, we recom-

mend loosening the housing fastening screws, and sliding it on the

external slide ⓒ while keeping it hanging on the slide.

• Place the illuminator bracket ⓐ in the desired position, under the exter-

nal slide ⓒ or, where possible, under the housing basis.

• To make this operation easier, it is possible to loosen the knurled hand-

wheel ⓑ or in case the nut opposite to the handwheel, and rotate the

bracket as to the illuminator.

• Mount the illuminator to the external slide ⓒ in a firm way, or where

possible, at the housing basis.

• Place back and close the housing body, direct the illuminator in the

desired position, and fasten the whole.

• If loosened during the bracket installation, please remember to tighten

the knurled handwheel ⓑ and/or the nut opposite to the handwheel.

18
