Back side

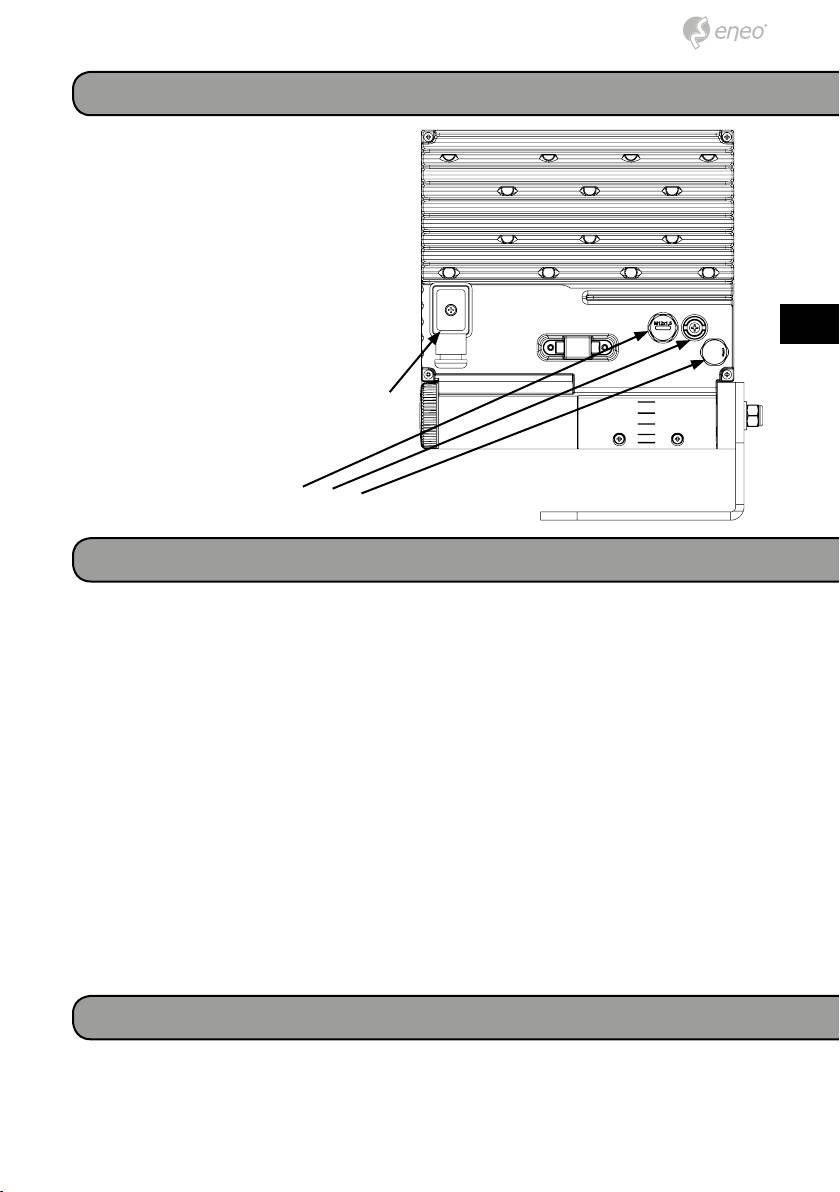

Identify the following components on

the back side of the device:

① Protection cap for the photocell

sensitivity adjustment trimmer

② Environmental luminosity sensor

DE

window

EN

③ Pressure equalizer filter

④ Power connector

FR

④

PL

RU

① ② ③

Twilight control adjustment

• The illuminator is factory adjusted to switch on around 20 lux.

• To modify this value it is necessary to open the protection cap ①.

• Through a 1x3 mm screw driver, adjust the photocell sensitivity, which

switches on the illuminator and the relay contact.

• Rotating clockwise the trimmer, you will decrease the light sensitivity,

whereas rotating counter clockwise, light sensitivity will increase.

• The lighting of the red led inside the illuminator, visible through the

sensivity adjustment trimmer opening, will signal the reaching of the

activation threshold in relation to the environmental light condition.

• Close the protection cap ① making sure of the correct position of the

sealing O-Ring.

Further information

Further language versions of this manual are available from the eneo web

site at www.eneo-security.com
