ASRock Z87E-ITX: Chapter 2 Installation
Chapter 2 Installation: ASRock Z87E-ITX
Z87E-IT X
Chapter 2 Installation
is is a Mini-ITX form factor motherboard. Before you install the motherboard,
study the conguration of your chassis to ensure that the motherboard ts into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components
or change any motherboard settings.
• Make sure to unplug the power cord before installing or removing the motherboard.
Failure to do so may cause physical injuries to you and damages to motherboard
components.
• In order to avoid damage from static electricity to the motherboard’s components,
NEVER place your motherboard directly on a carpet. Also remember to use a grounded
wrist strap or touch a safety grounded object before you handle the components.
• Hold components by the edges and do not touch the ICs.
• Whenever you uninstall any components, place them on a grounded anti-static pad or
in the bag that comes with the components.
• When placing screws to secure the motherboard to the chassis, please do not over-
tighten the screws! Doing so may damage the motherboard.
English
17

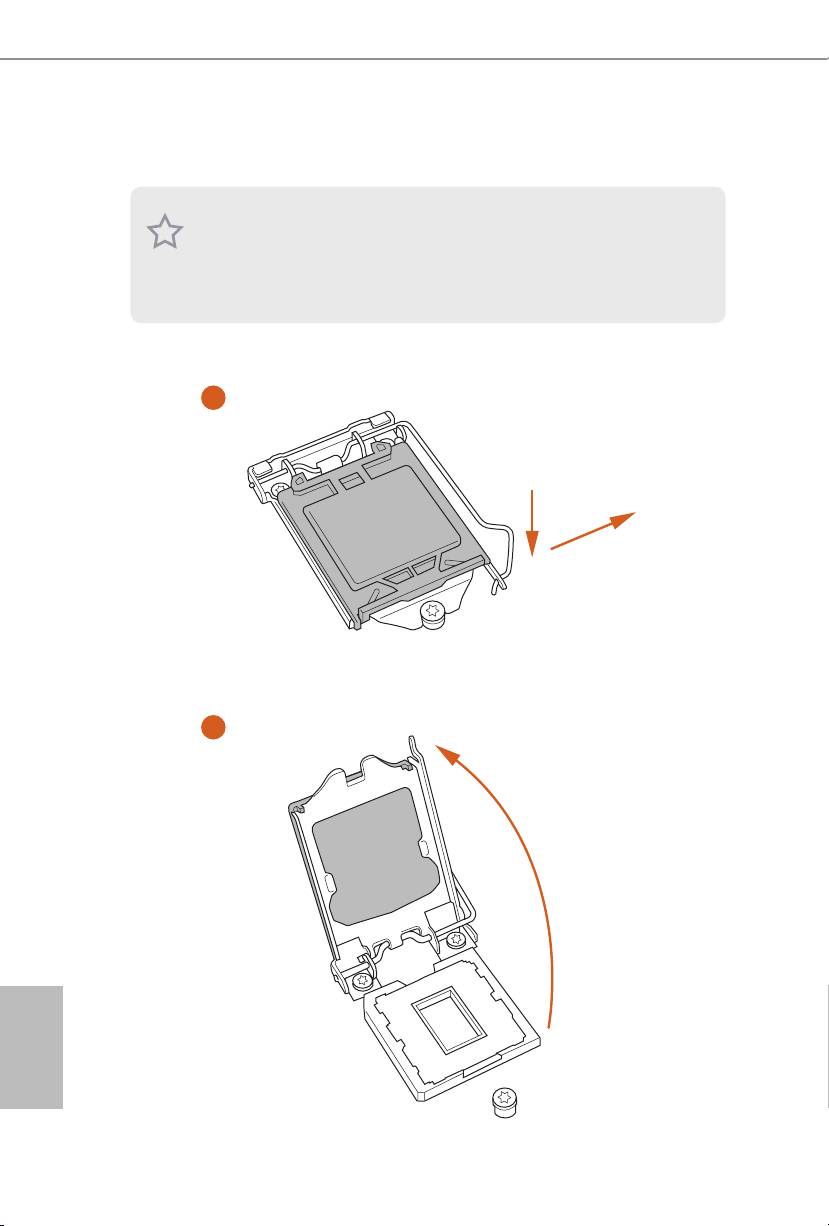

2.1 Installing the CPU
1. Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on the
socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not
force to insert the CPU into the socket if above situation is found. Otherwise, the CPU
will be seriously damaged.
2. Unplug all power cables before installing the CPU.
1
A
B
2
English
18
Z87E-IT X

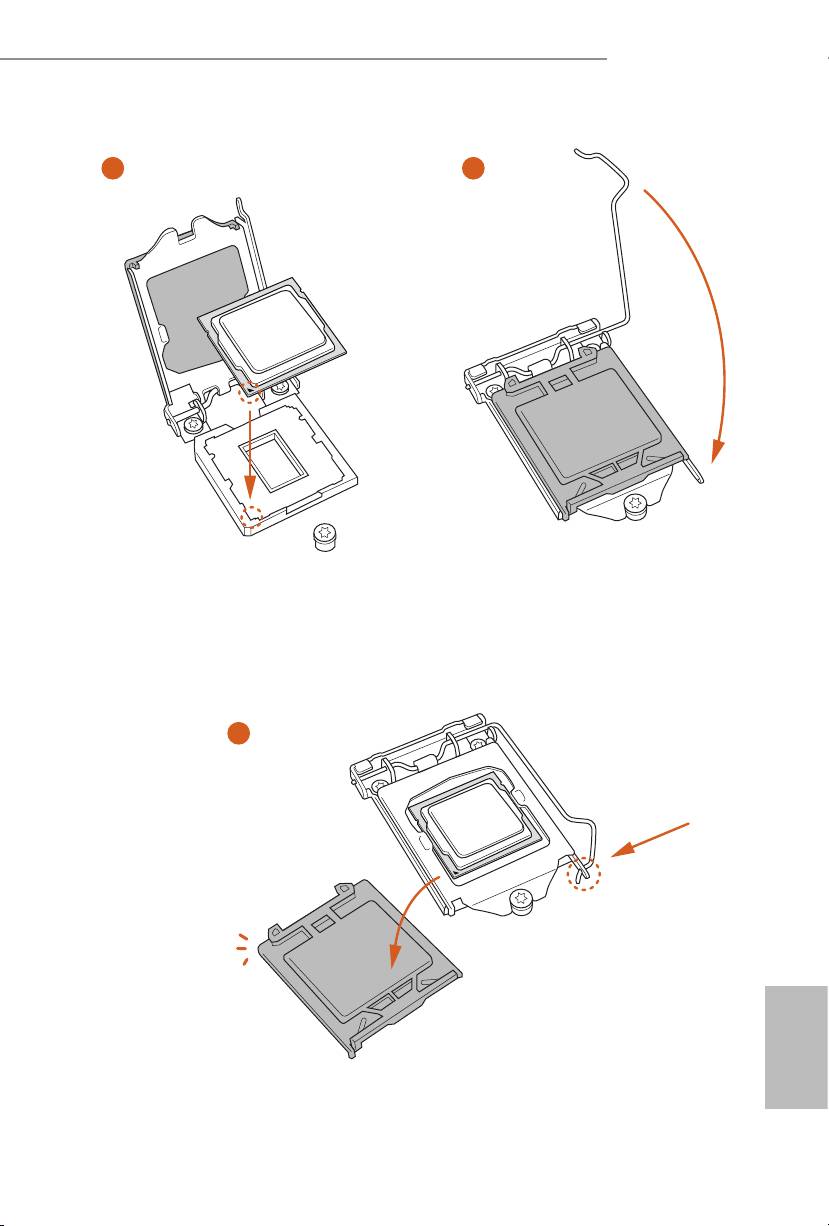

3
4
5
English
19
Please save and replace the cover if the processor is removed. e cover must be placed if
you wish to return the motherboard for aer service.
English
20
Z87E-IT X

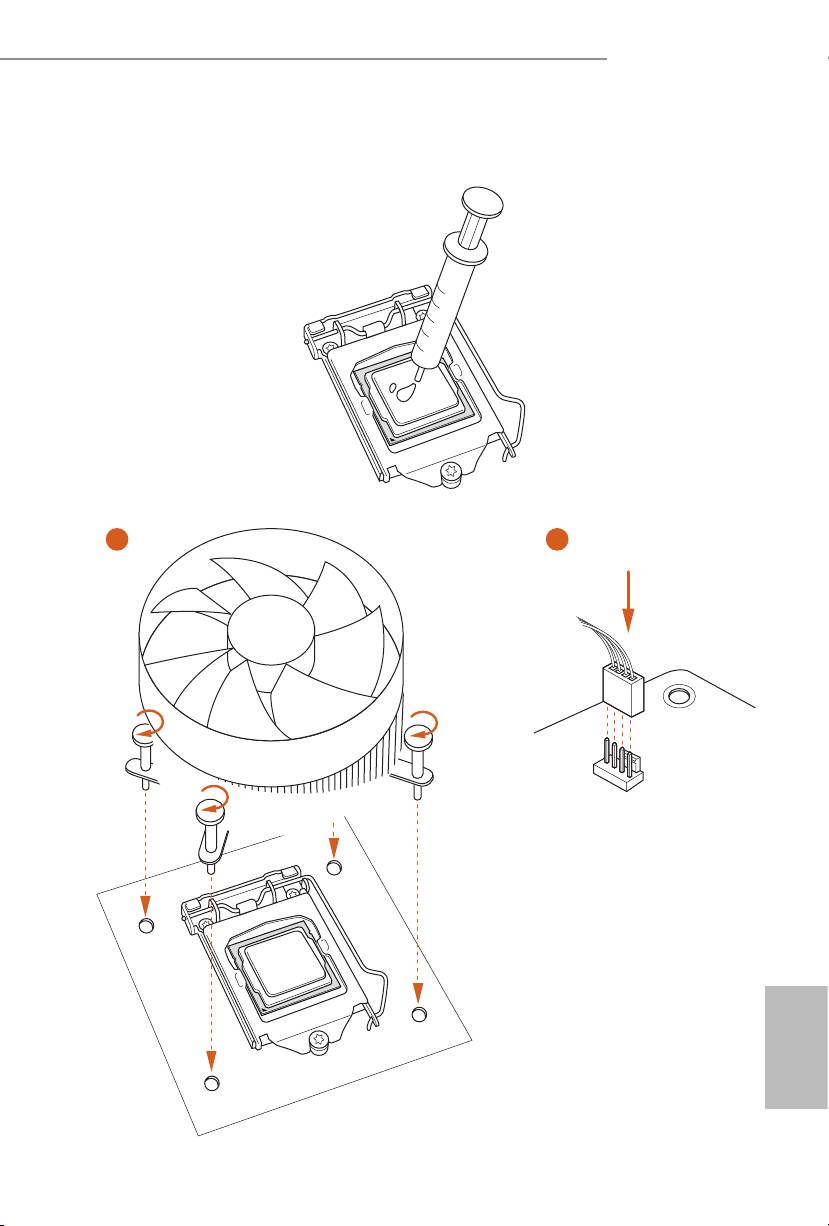

2.2 Installing the CPU Fan and Heatsink
1 2
FAN
CPU_
English
21
2.3 Installing Memory Modules (DIMM)
is motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots,
and supports Dual Channel Memory Technology.
1. For dual channel conguration, you always need to install identical (the same brand,
speed, size and chip-type) DDR3 DIMM pairs.
2. It is unable to activate Dual Channel Memory Technology with only one memory module
installed.
3. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot; otherwise,
this motherboard and DIMM may be damaged.
e DIMM only ts in one correct orientation. It will cause permanent damage to the
motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
English
22
Z87E-IT X
1
2
3
English
23
2.4 Expansion Slots (PCI and PCI Express Slots)
ere is 1 PCI Express slot, 1 mini-PCI Express slot, and 1 mSATA/mini-PCI
Express slot on this motherboard.
Before installing an expansion card, please make sure that the power supply is switched o
or the power cord is unplugged. Please read the documentation of the expansion card and
make necessary hardware settings for the card before you start the installation.
PCIe slots:
PCIE1 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
MINI_PCIE1 (mini-PCIe slot) is used for WiFi module.
MINI_PCIE2 (mSATA/mini-PCIe slot) is used for mSATA or mini-PCIe module.
*** e mSATA/mini-PCIe slot is shared with SATA3_4 connector.
English
24
Z87E-IT X

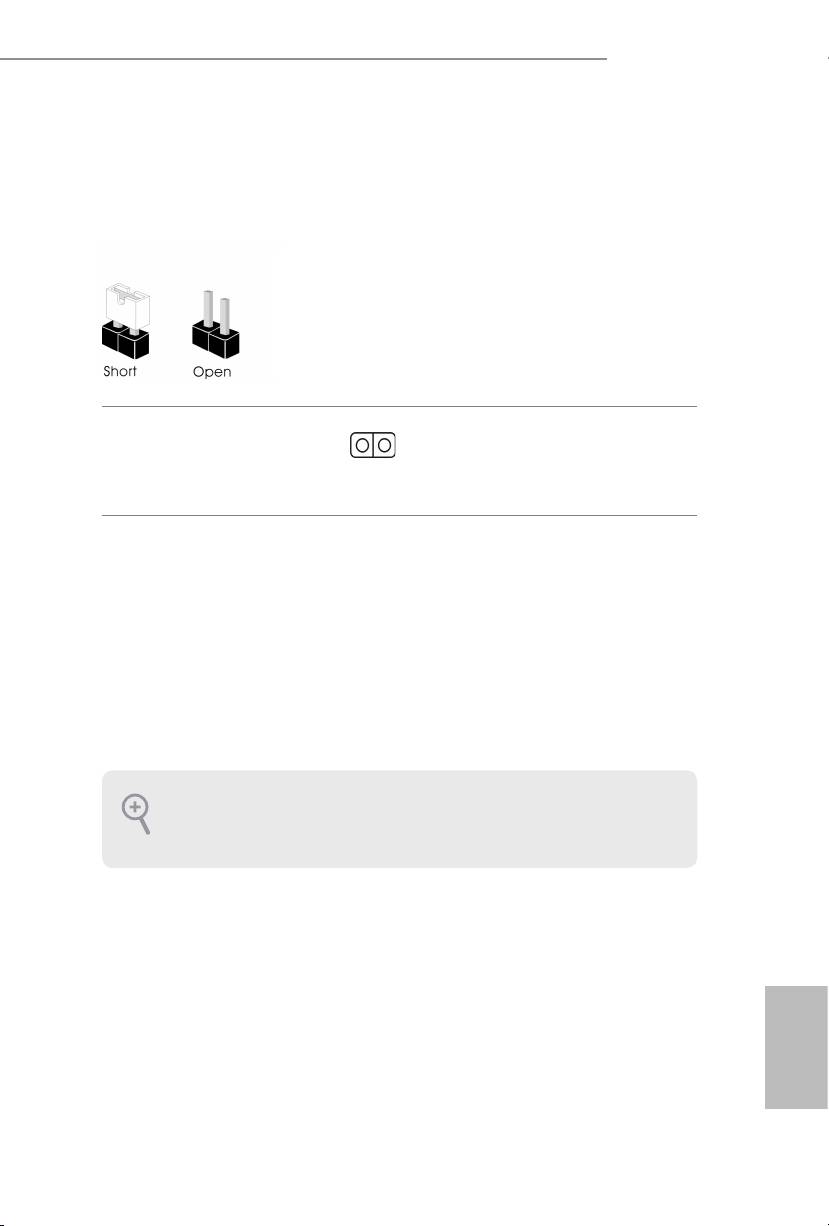

2.5 Jumpers Setup
e illustration shows how jumpers are setup. When the jumper cap is placed on
the pins, the jumper is “Short”. If no jumper cap is placed on the pins, the jumper is
“Open”.
Clear CMOS Jumper
Short: Clear CMOS
(CLRCMOS1)
Open: Default
2-pin Jumper
(see p.1, No. 14)
CLRCMOS1 allows you to clear the data in CMOS. e data in CMOS includes
system setup information such as system password, date, time, and system setup
parameters. To clear and reset the system parameters to default setup, please
turn o the computer and unplug the power cord, then use a jumper cap to short
the pins on CLRCMOS1 for 3 seconds. Please remember to remove the jumper
cap aer clearing the CMOS. If you need to clear the CMOS when you just nish
updating the BIOS, you must boot up the system rst, and then shut it down
before you do the clear-CMOS action.
1. e Clear CMOS Switch has the same function as the Clear CMOS jumper.
2. If you clear the CMOS, the case open may be detected. Please adjust the BIOS option “Clear
Status” to clear the record of previous chassis intrusion status.
English
25

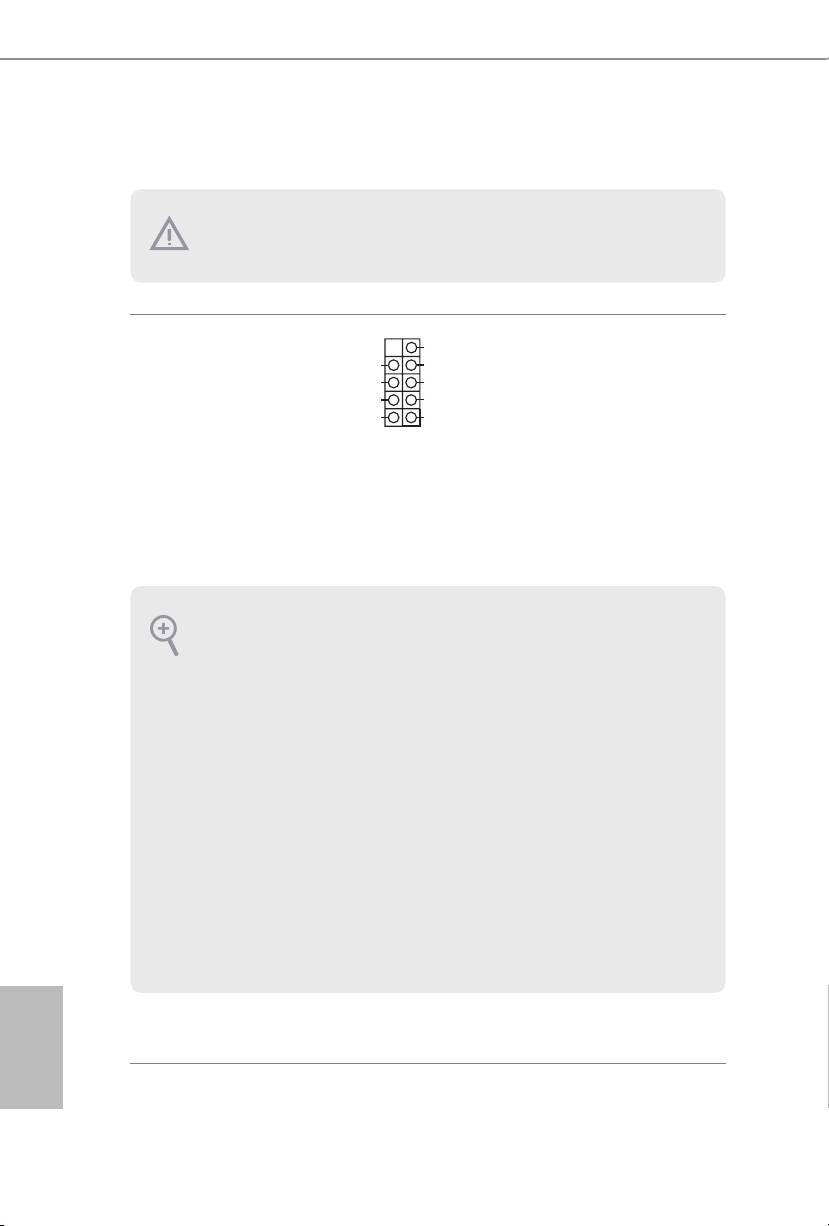

2.6 Onboard Headers and Connectors
System Panel Header
Connect the power
GND RESET#
(9-pin PANEL1)
switch, reset switch and
(see p.1, No. 12)
system status indicator on
the chassis to this header
according to the pin
assignments below. Note
the positive and negative
pins before connecting
the cables.
English
26
PWRBTN
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these
headers and connectors. Placing jumper caps over the headers and connectors will cause
permanent damage to the motherboard.
GND
#
GND
PLED-
HDLED-
PLED+
HDLED+
1
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may congure the way to turn
o your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset switch to restart the
computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. e LED is on when the
system is operating. e LED keeps blinking when the system is in S1/S3 sleep state. e
LED is o when the system is in S4 sleep state or powered o (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. e LED is on when the
hard drive is reading or writing data.
e front panel design may dier by chassis. A front panel module mainly consists of power
switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connect-
ing your chassis front panel module to this header, make sure the wire assignments and the
pin assignments are matched correctly.
Z87E-IT X

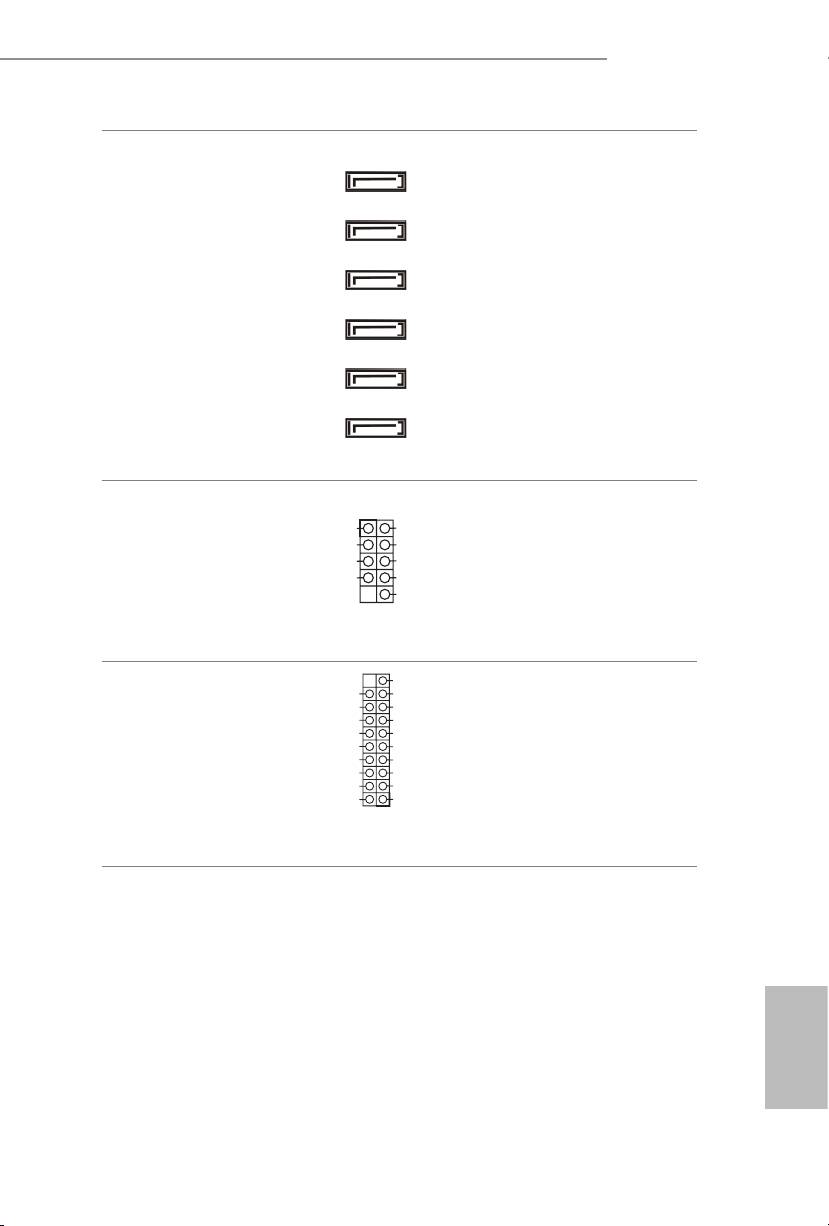

Serial ATA3 Connectors
ese six SATA3
(SATA3_0:
connectors support SATA
see p.1, No. 16)
data cables for internal
(SATA3_1:
storage devices with up
see p.1, No. 15)
to 6.0 Gb/s data transfer
(SATA3_2:
rate. SATA3_5 connector
see p.1, No. 17)
is shared with the eSATA
(SATA3_3:
port; SATA3_4 connector
see p.1, No. 9)
is shared with the
(SATA3_4:
mSATA/mini-PCIe slot.
see p.1, No. 8)
(SATA3_5:
see p.1, No. 6)
USB 2.0 Headers
Besides two USB 2.0 ports
(9-pin USB_2_3)
on the I/O panel, there
(see p.1, No. 21)
are two headers on this
(9-pin USB_4_5)
motherboard. Each USB
(see p.1, No. 20)
2.0 header can support
two ports.
USB 3.0 Headers
Besides four USB 3.0 ports
(19-pin USB3_5_6)
on the I/O panel, there
(see p.1, No. 7)
are one header on this
motherboard. Each USB
3.0 header can support
two ports.
English
27
1
USB_PWR
USB_PWR
P-
P-
P+
P+
GNDGND
DUMMY
SATA3_5
SATA3_4
SATA3_3
SATA3_2
SATA3_1
SATA3_0
VbusVbus
Vbus
IntA_PB_SSRX-
IntA_PA_SSRX-
IntA_PB_SSRX+
IntA_PA_SSRX+
GND
GND
IntA_PB_SSTX-
IntA_PA_SSTX-
IntA_PB_SSTX+
IntA_PA_SSTX+
GND
GND
IntA_PB_D-
IntA_PA_D-
IntA_PB_D+
IntA_PA_D+
Dummy
1

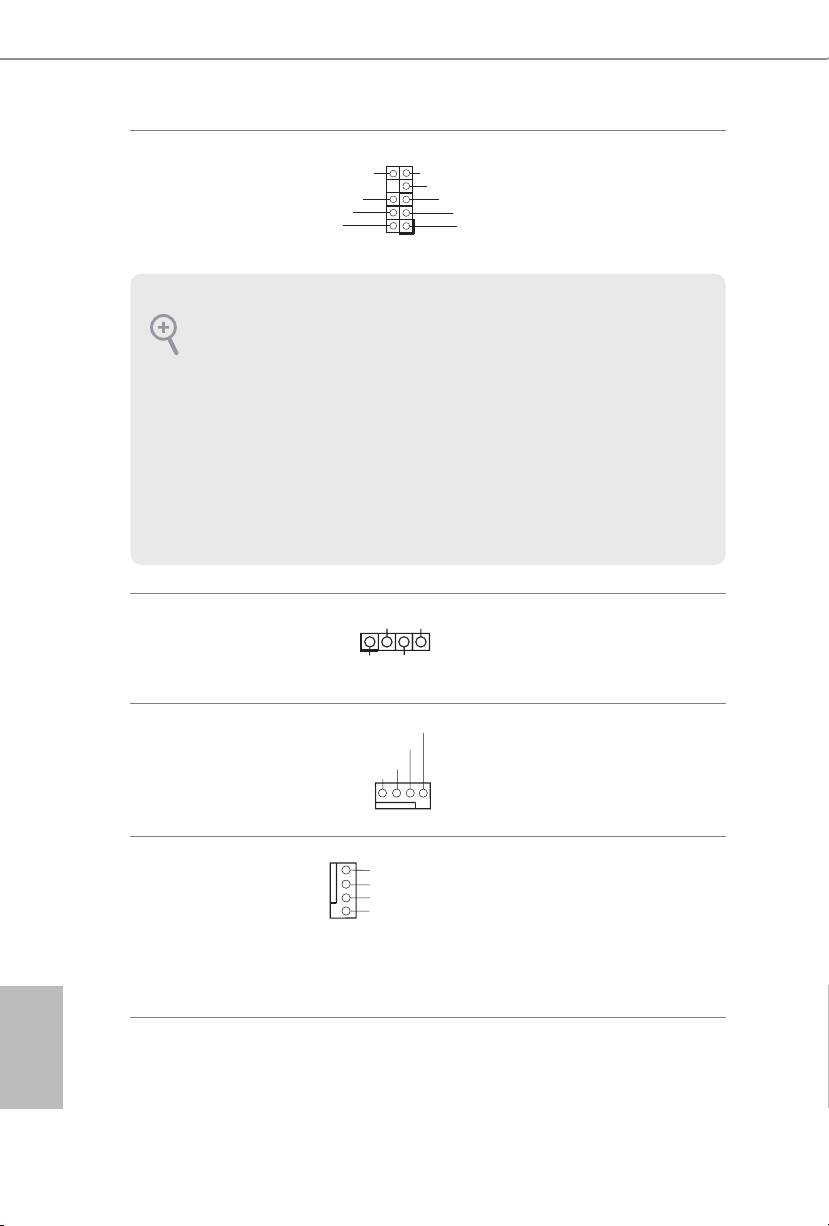

Front Panel Audio Header
is header is for
GN D
OUT2_L
(9-pin HD_AUDIO1)
J_SENSE
connecting audio devices
PRESENCE#
OUT2_R
(see p.1, No. 21)
MIC_RET
MIC2_R
to the front audio panel.
1
1. High Denition Audio supports Jack Sensing, but the panel wire on the chassis must sup-
port HDA to function correctly. Please follow the instructions in our manual and chassis
manual to install your system.
2. If you use an AC’97 audio panel, please install it to the front panel audio header by the
steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don’t need to connect
them for the AC’97 audio panel.
E. To activate the front mic, go to the “FrontMic” Tab in the Realtek Control panel and
adjust “Recording Volume”.
Chassis Speaker Header
Please connect the chassis
(4-pin SPEAKER1)
speaker to this header.
(see p.1, No. 13)
Chassis and Power Fan
Please connect fan cables
Connectors
to the fan connectors and
(4-pin CHA_FAN1)
match the black wire to
(see p.1, No. 4)
the ground pin.
CPU Fan Connectors
is motherboard pro-
(4-pin CPU_FAN1)
vides a 4-Pin CPU fan
(see p.1, No. 1)
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
English
28
OUT_RE
MIC2_L
T
FAN_SPEED_CONTROL
CPU_FAN_SPEED
+12V
GND
1
DUMMY
+5V
DUMMY
SPEAKER
GN D
+ 12V
CPU_FAN_SPEED
FAN_SPEED_CONTRO
1
2
3
4
L
Z87E-IT X

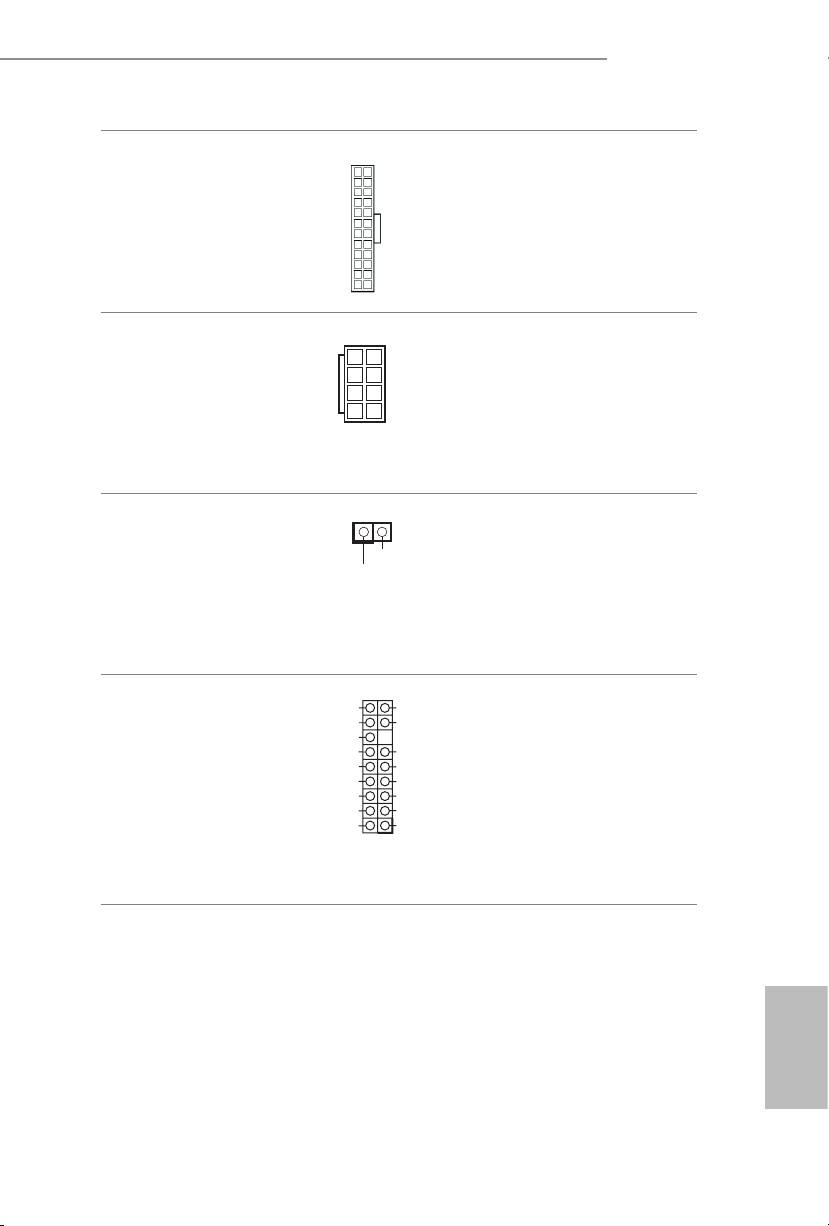

ATX Power Connector
is motherboard pro-
12
24
(24-pin ATXPWR1)
vides a 24-pin ATX power
(see p.1, No. 5)
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
1
13
13.
ATX 12V Power
5
1
is motherboard pro-
Connector
vides an 8-pin ATX 12V
(8-pin ATX12V1)
power connector. To use a
(see p.1, No. 2)
4-pin ATX power supply,
8
4
please plug it along Pin 1
and Pin 5.
Chassis Intrusion Header
is motherboard supports
1
(2-pin CI1)
CASE OPEN detection feature
(see p.1, No. 11)
that detects if the chassis cove
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
TPM Header
is connector supports Trusted
(17-pin TPMS1)
Platform Module (TPM) system,
(see p.1, No. 10)
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
English
29
Signal
GND
LFRAME#_L
1
CK_33M_TPM
GNDF_CLKRUN#
SERIRQ#
+3VSB
S_PWRDWN#
GND
LAD0_L
LAD1_L
+3V
LAD2_L
LAD3_L
TPM_RST#
SMB_DA
TA_MAIN
SMB_CLK_MAIN
GND
