PowerWalker VFD 600 IEC: инструкция

Off Line UPS

EN

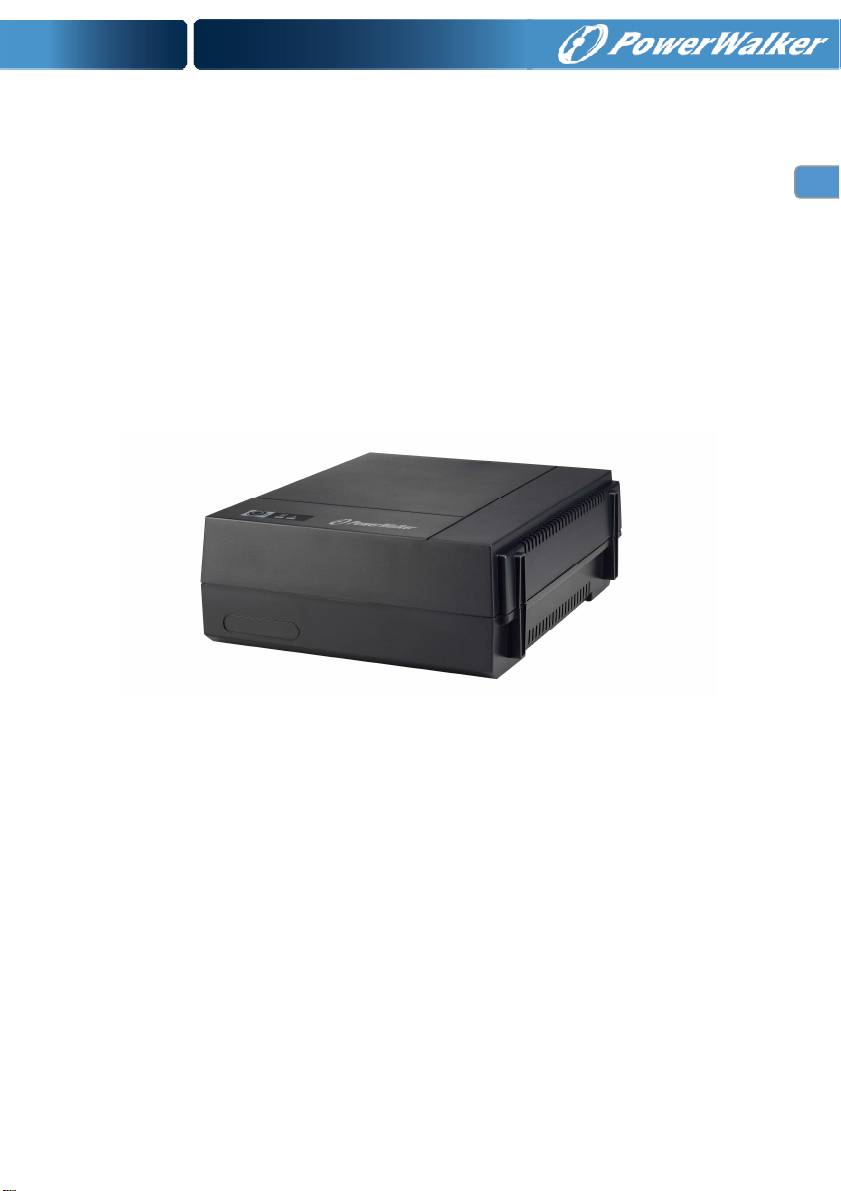

PowerWalker VFD 400 IEC

PowerWalker VFD 600 IEC

PowerWalker VFD 800 IEC

Quick Start Guide

EN/DE/FR/ES/IT/GR/RU/PL

IMPORTANT SAFETY INSTRUCTIONS

EN

SAVE THESE INSTRUCTIONS – This manual contains important instructions for models

PowerWalker VFD 400/600/800 IEC that should be followed during installation and

maintenance of the UPS and batteries.

• This product is specially designed for PCs and it is not recommended for use in any life-

supporting system and other specific important equipment.

• This equipment can be operated by any individual with no previous training.

• Do not plug household appliances such as hair dryers to UPS receptacles.

• This unit intended for installation in a controlled environment (temperature controlled,

indoor area free of conductive contaminants). Avoid installing the UPS in locations where

there is standing or running water, or excessive humidity.

• Risk of electric shock, do not remove cover. No user serviceable parts inside. Refer

servicing to qualified service personnel.

• The utility power outlet shall be near the equipment and easily accessible. To isolate UPS

from AC input, remove the plug from the utility power outlet.

• If UPS is to be stored for a long time, it is recommended to recharge the batteries (by

connecting the utility power to UPS, switch “ON”), once a month for 24 hours to avoid a

full battery discharge.

• Please do not use the UPS in excess of the rated load capacity.

• The UPS contains one/two large-capacity batteries. So the shell shall not be opened,

otherwise such dangers as electric shock will be caused. If any internal overhaul or

replacement of the battery is required, please contact the distributor.

• The internal short circuiting of the UPS will lead to dangers such as electric shock or fire,

therefore, no water containers (such as a water glass) shall be placed on the top of the

UPS so as to avoid such dangers as electric shock.

• Do not dispose of battery or batteries in a fire. The battery may explode.

• Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the

skin and eyes. It may be toxic.

• Icon Φ on the rating label stands for phase symbol.

• A battery can present a risk of electrical shock and high short circuit current. The

following precautions should be observed when working on batteries :

• Remove watches, rings, or other metal objects from the hand.

• Use tools with insulated handles.

• Servicing of batteries should be performed or supervised by personnel knowledgeable of

batteries and the required precautions. Keep unauthorized personnel away from

EN

batteries.

• When replacing batteries, replace with the same type and number of the sealed lead-acid

batteries.

• The maximum ambient temperature rating is 40°C.

• This pluggable type A equipment with battery already installed by the supplier is

operator installable and may be operated by laymen.

• During the installation of this equipment it should be assured that the sum of the leakage

currents of the UPS and the connected loads does not exceed 3.5mA.

• Attention, hazardous through electric shock. Also with disconnection of this unit from

the mains, hazardous voltage still may be accessible through supply from battery. The

battery supply should be therefore disconnected in the plus and minus pole of the

battery when maintenance or service work inside the UPS is necessary.

• The mains socket outlet that supplies the UPS shall be installed near the UPS and shall be

easily accessible.

• In case smoke is found coming out from the device, please cut off the power supply

quickly and contact the distributor.

• Do not keep or use this product in any of the following environments:

o Any area with combustible gas, corrosive substance or heavy dust.

o Any area with extraordinarily high or low temperature (above 40˚C or below

0˚C) and humidity of more than 90%.

o Any area exposed to direct sunshine or near any heating apparatus.

o Any area with serious vibrations.

o Outdoor.

• In the event that there is fire occurring in the vicinity, please use dry-power extinguishers.

The use of liquid extinguishers may give rise to the danger of electric shock.

This product complies with the safety and environmental regulations in EU.

If the time arises to throw away your product, please recycle all the components possible. Batteries

and rechargeable batteries are not to be disposed in your domestic waste! Please recycle them at

your local recycling point. Together we can help to protect the environment.

1. Product Introduction

EN

The PowerWalker VFD series provides comprehensive protection in a small and economic package.

The UPS is more compact and offers greater comprehensive power protection against surges and

spikes. This UPS will continue providing stable power to connected equipment and enable to

shutdown PC safely during power failure. Its embedded microprocessor controller guarantees high

reliability and it’s perfect for any home or small office application.

Features:

• Compact size with stand and mounting flexibility

• Excellent microprocessor control guarantees high reliability

• Auto restart while AC is recovering

• Simulated sine wave

• Cold start function

• Full protection: Discharge, overcharge, short circuit,and thermal Protection

2. Package Contents

You should have received the following items inside of package:

UPS Unit Quick Start Guide Input Power cord

3. Product Overview

EN

Front Panel:

Back Panel:

Power Switch



UPS status indicator



Fault/Battery status indicator

(Check the Indicator & Alarm Table for the details.)

AC input

with Fuse



Output receptacles

4. Installation and Initial Startup

EN

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the

package is damaged.

I: Placement & Storage Conditions

Install the UPS in a protected area that is free of excessive dust and has adequate air flow. Please

place the UPS away from other units at least 20 cm to avoid interference. Do NOT operate the

UPS where the temperature and humidity is outside the specific limits. (Please check the specs

for the limitations.)

II: Connect to Utility and Charge

Before initial use, please plug in the AC input cord to the wall

outlet and turn on the UPS for charging. For the best results,

suggest to charge the battery at least 8 hours before initial use.

8 hours

III: Connect the Loads

Plug in the loads to output receptacles on the rear panel of the UPS. Simply turn on the power

switch of UPS unit, then devices connected to the UPS will be protected by UPS unit.

NEVER NEVER connect a laser printer or

scanner to the UPS unit. This may cause the

damage of the unit.

VI: Turn On/Off the Unit

Turn on the UPS unit by pressing the power switch. Turn off the UPS unit by pressing again the

power switch.

5. Indicators & Alarm Table for Operation

EN

Conditions Visual Indicator Alarm

AC Mode Green LED lighting Off

Battery Mode Green LED flashing every 10

Sounding every 10

seconds

seconds

Low battery at battery

Green LED flashing every second

Sounding every

mode

and Red LED lighting

second

Fault Red LED lighting Continuously

sounding

Alarm for over-temperature

Red LED flashing every 0.5 seconds Off

protection

6. Trouble Shooting

Use the table below to solve minor problems.

Problem Possible Cause Solutions

Low battery. Charge the UPS at least 8 hours.

front panel.

Battery fault.

of battery.

The UPS is not turned on. Press the power switch again to

the UPS.

Alarm continuously

The UPS is overload.

sounds when the

mains is normal.

specified in the specs.

UPS fault Return the unit to the service center.

Battery defect.

mains is normal.

of battery.

Charging board is damaged. Return the unit to the service center.

When power fails, back-

The UPS is overload. Remove some critical load.

up time is shorten.

Battery voltage is too low. Charge the UPS at least 8 hours.

Replace the battery with the sa

operation to battery.

of battery.

The mains is normal

Power cord is loose. Reconnect the power cord properly.

but LED is flashing.

7. Specifications

Model Power Walker VFD

Power Walker VFD

Power Walker VFD

EN

400 IEC

600 IEC

800 IEC

CAPACITY 400 VA / 240 W 600 VA / 360 W 800 VA / 480 W

INPUT

Voltage 220/230/240 VAC

Voltage Range 180~270 VAC

Frequency 50 Hz

OUTPUT

Voltage Regulation +/-10%

Transfer Time Typical 2-6 ms

Waveform Simulated Sine Wave

BATTERY

Type & Number 12 V / 4.5 AH x 1 12 V / 7 AH x 1 12 V / 9 AH x 1

Charging Time 8 hours recover to 90% capacity

PHYSICAL

Dimension

228 x 82.5 x 207 mm (@ vertically stand)

(DxWxH)

Net Weight (kgs) 2.2 2.7 3.1

Environment

Humidity 0-90 %

Temperature 0-40° C ( non-condensing)
