Fieldmann FZR 4011-B: 10. TECHNICAL DATA

Technical data | Declaration of conformity

10. TECHNICAL DATA

Engine type: ............................................................................................................. Briggs & Stratton 500 Series

Nominal output: ................................................................................................................................................ 3,0 kW

Engine speed: ................................................................................................................................................2800rpm

3

Stroke volume: .................................................................................................................................................158 cm

Starting: ...........................................................................................................................................................By pulling

Fuel tank capacity (unleaded 95 or more): ......................................................................................... 0.8 liters

Oil tank capacity ( SAE 30 - 15W 40): ................................................................................................... 0.6 liters

Adjustable mowing height : ...................................................................................25-75mm with 8 positions

Height setup: .............................................................................................................................Central height setup

Mowing width: .....................................................................................................................................................46 cm

Wheel spacing: .....................................................................................................................178 mm (front wheel)

..............................................................................................................................254 mm (rear wheel)

Wheel width: ......................................................................................................................................................50 mm

Collection basket capacity: ..................................................................................................................................60 l

Bogie: .........................................................................................................................................................................steel

Declared noise level: .....................................................................................................................................96dB(A)

Netto/brutto weight: ................................................................................................................................32kg/34kg

11. DECLARATION OF CONFORMITY

EC Declaration of Conformity

Fast ČR, a.s., Černokostelecká 251 01 Říčany u Prahy, phone: 323204111, declares with binding

effect, that petrol lawn mower Fieldmann FZR 4011-B (the year of manufacture is indicated on a

type label and is followed by a serial number of the machine), complies with the requirements of

DIRECTIVE OF THE COUNCIL:

No. 2006/42/EC, 2004/108/EC, (approval certificate no.: AM 50268730 0001,

AE 50223979 0001)

No. 2004/26/EC, exhaust emission,

and has been tested in compliance with the following standards:

EN 836:1997 +A4:2011

ZEK 01.04/11.11

EN ISO 14982:2009

The company FAST ČR, a.s. is entitled to act on behalf of the manufacturer.

CE label: 13

Petr Uher

Říčany, 29 November 2013

quality manager

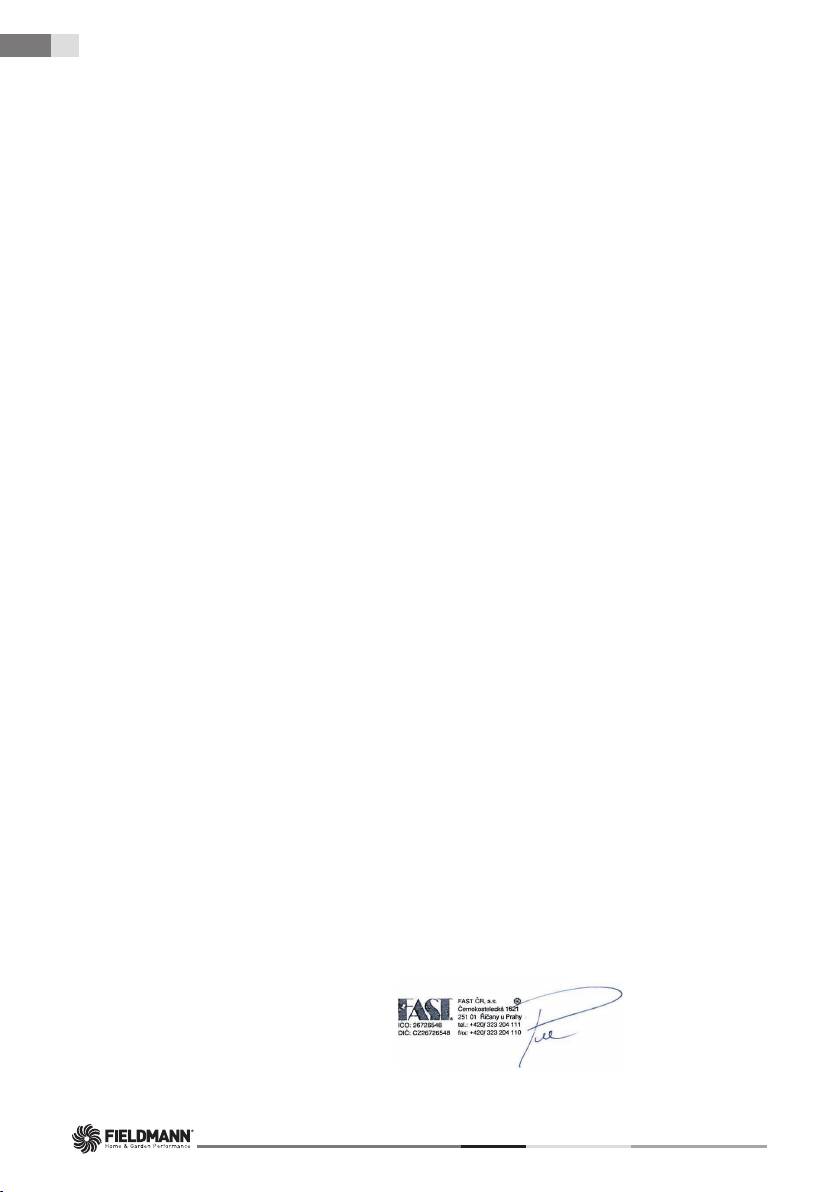

name stamp signature
