Precaution Notice

Only a technician, authorized by ENERMAX, is allowed to perform maintenance service!

Warranty is subject to void under unauthorized attempt to open the power case or modification of

any kinds, even attempted only, of the power supply or its components!

ENERMAX will not be responsible for damages caused by following situations:

 Opening of the PSU case and/or modification of any component or cable without

ENERMAX’s written authorization.

 Ignoring connector’s wrong insertion prevention design by attaching a connector to a device

in wrong orientation.

 Connecting too many devices to one cable unit by using additional adaptor (Y cables).

 Usage of non-genuine ENERMAX modular cables.

 The serial number label or warranty seal is defaced, modified, or removed.

 Damage caused by natural phenomena or uncontrollable forces, such as lightning, flooding,

fire, earthquake, etc.

This ENERMAX Technology Corporation product is warranted to be free from defects in

material and workmanship for a period of five (5) years from the date of purchase. ENERMAX

Technology Corporation agrees to repair or replace the product, at its own option and at no

charge, if, during the warranty period, it is returned to nearest ENERMAX Technology

Corporation subsidiary/agent with all shipping charges prepaid and bearing a return merchandize

authorization (RMA) number, and if inspection reveals that the product is defective. Charges for

removing or installing the product are excluded under the terms of this warranty agreement. This

warranty shall not apply to any product, which has been subject to connection to a faulty power

source, alteration, negligence, or accident, or to any product, which has been installed other than

in accordance with these instructions. In no event shall ENERMAX Technology Corporation, or

its subsidiaries, or agents be liable for damages for a breach of warranty in an amount exceeding

the purchase price of this product!

If you are uncertain whether or not your ENERMAX PSU is defective, please contact your

dealer/reseller for support!

Web Site: http://www.enermax.com

E-mail: enermax@enermax.com.tw

Forum: forum.enermax.com

ENERMAX Technology Corporation, 15F-2, No. 888, Jing-Guo Road, Taoyuan City (330), Taiwan (R.O.C.), Tel.

+886-3-316-1675, Fax. +886-3-346-6640

©2012 ENERMAX Technology Corporation. All rights reserved. Specifications are subject to change without prior notice. Actual

product and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in

different countries or areas. Some trademarks may be claimed as the property of others. Reproduction in any manner without the

written permission of ENERMAX is strictly forbidden.

1

ENERMAX Platimax Series Power Supply Specification

EPM1500EGT EPM1350EWT EPM1200EWT

110-240VAC, 50-60Hz

100-240VAC, 50-60Hz

AC Input Voltage

220-240VAC, 50-60Hz

(Maximum range:

(Maximum range:

100-264VAC, 47-63Hz)

90-264VAC, 47-63Hz)

AC Input Current

8-7A 14-6.5A 14-5.5A

DC Output

Rated Combined Rated Combined Rated Combined

3.3V

0-24A

0-24A

0-24A

120W

120W

120W

5V

0-24A 0-24A 0-24A

12V1

0-30A

0-20A

0-30A

12V2

0-30A 0-20A 0-30A

12V3

0-30A 0-30A 0-30A

1500W

1350W

1200W

12V4

0-30A 0-30A 0-30A

(125A)

(112.5A)

(100A)

12V5

0-30A 0-30A 0-30A

12V6

0-30A 0-30A 0-30A

-12V

0-0.5A 6W 0-0.5A 6W 0-0.5A 6W

5Vsb

0-3A 15W 0-3A 15W 0-3A 15W

Total Power

1500W 1350W 1200W

Peak Power*

1650W 1600W 1440W

Protection Circuit

DC Rail OCP trigger range

Over Current

3.3V

30 – 45A

Protection

5V

30 – 45A

12V1/2/3/4/5/6

40 – 50A

DC Rail

UVP trigger range OVP trigger range

(DC)

3.3V

2.0 – 2.4V 3.9 – 4.5V

Under Voltage /

5V

3.3 – 3.7V 5.7 – 6.5V

Over Voltage

12V1/2/3/4/5/6

8.5 – 9.5V 13.3 – 14.5V

Protection

-12V

-9.5 – -10.5V

+5Vsb

5.7-6.5V

(AC)

Activated when AC input voltage < 70VAC.

Under Voltage Protection

Over Power

Activated when output power > 110 ~160% of rated max load.

Protection

Over Temperature

o

Activated when PSU heat sink > 90 ~ 110

C.

Protection

Short Circuit

Activated when any DC rails short-circuited.

Protection

Surge & Inrush

Sustain 2KV surge stroke.

Protection

Sustain up to 70A inrush current @ 240VAC at cold start.

ENVIRONMENT

o

Operation ambient: 0~40

C

Temperature

o

Storage ambient: -40~70

C

o

Operation: to 85% relative humidity, non-condensing at 25

C

Humidity

o

Storage: to 95% relative humidity, non-condensing at 50

C

OTHERS

o

> 100,000 hours at 70% of full rated load, 230VAC/50Hz, 25

C

MTBF

(MIL-HDBK-217F standard)

Dimension

150 (w) x 86 (h) x 180 (d) mm

Weight

2.25kg (without modular cables) ±50g

Safety

UL/cUL(Level 6), TUV, GOST, CB, BSMI(EPM1350&1200EWT)

EMC

CE, FCC, KCC

* Peak power may last up to 60 seconds.

2

User’s Manual

Dear customer,

Thank you for choosing this ENERMAX power supply unit (PSU)! Please read this manual carefully and

follow its instructions before installing the PSU.

We would like to draw your attention that a computer required very specific conditions to work best for

you without failing. To avoid failures and to increase lifetime of the system, we suggest that:

 Your system is NOT located near a radiator or any other heat producing device

 Your system is NOT located near a magnetic device

 Your system is NOT located in a moist and/or dusty and/or vibrating environment

 Your system is NOT exposed to direct sunshine

 Your system is sufficiently cooled by additional fans

 If you use AC extension cables, please make sure it can support all connected appliances’ potential

peak power draw. Or redistribute other high power consumption equipment, such as laser printers or

monitors to other AC wall outlets. Exceeding the extension cable’s loading capacity could trigger its

circuit breaker and cut off the power.

 If you want to add the UPS (Uninterruptible Power Supply) for your system, please choose adequate

Watts/VA capacity UPS. Ex.

Suggested minimum UPS output power capacity

PSU Model

(Based on efficiency & PFC at respective load)

EPM1500EGT 1700W / 2400VA

EPM1350EWT 1500W / 2100VA

EPM1200EWT 1400W / 2000VA

＊ If you intend to add other appliance powered by the same UPS, such as monitor or printer,

please use higher capacity UPS according to all connected devices’ rated power draw.

＊ Please do not mistake VA capacity as Watts, or use insufficient power UPS. This would result

in less UPS battery runtime or the inability to power the system in battery mode.

NAME OF PARTS

① Output cable: Please check “Cables &

Connectors” section.

# 1

② Fan.

# 1

③ Honeycomb air vent.

# 2

④ ON/OFF switch (I=ON, O=OFF).

# 2

⑤ AC Inlet.

#3

⑥ CordGuard.

#1 To ensure best system cooling, do not block PSU fan’s air in-take and air vent area.

This PSU offers a special HeatGuard function. When the system is turned off, or goes into ACPI

S3/S4 sleep mode, the PSU fan will keep dissipating the remaining heat for 30 ~ 60 seconds and

prolonging system lifetime.

#2 When assembling or maintaining the system, please remove AC cord from AC inlet, or turn

ON/OFF switch into “OFF” position. Then you can safely service the system.

#3 AC cord can get loose in many ways. The ENERMAX CordGuard lock can fix your AC cord tightly

to the PSU, so that it will not be easily detached and avoid shut-downs of your PC. The following

is CordGuard installation:

3

① Set your PSU into the chassis, and please



② Press two sides of the CordGuard lock



make sure the

together, and set it into

I/O switch is

CordGuard holder near

on “O”

the AC inlet.

position.

③ Plug the AC



④ Lock CordGuard to



cord into your

latch onto AC cord.

PSU.

1. CordGuard is for AC cords supplied with ENERMAX CordGuard-compatible PSUs. Other AC

cords may be incompatible.

2. When assembling or maintaining the system, please remove AC cord from AC inlet, or turn I/O

switch into “O” position.

CABLES & CONNECTORS

All connectors are designed to prevent insertion in wrong orientation. If you cannot easily insert a

connector, please check if you are inserting the connector in the right orientation. Do not try by force to

insert it nor modify the connectors. This might damage power supply and system components, and

warranty shall be void.

Following graphic illustrates the modular sockets layout and its DC rail distribution.

＊ You must connect 16-pin and 20-pin connectors into respective sockets to enable 24-pin MB and

8-pin CPU connectors.

＊ This product incorporates multiple 12V rails over current protection. If you let many peripherals

consume the power on only one 12V rail, it may trigger the over current protection and shut down

the system. Please re-direct certain peripheral power cable to other 12V rail to share the current

loading to ensure highest stability and safety.

4

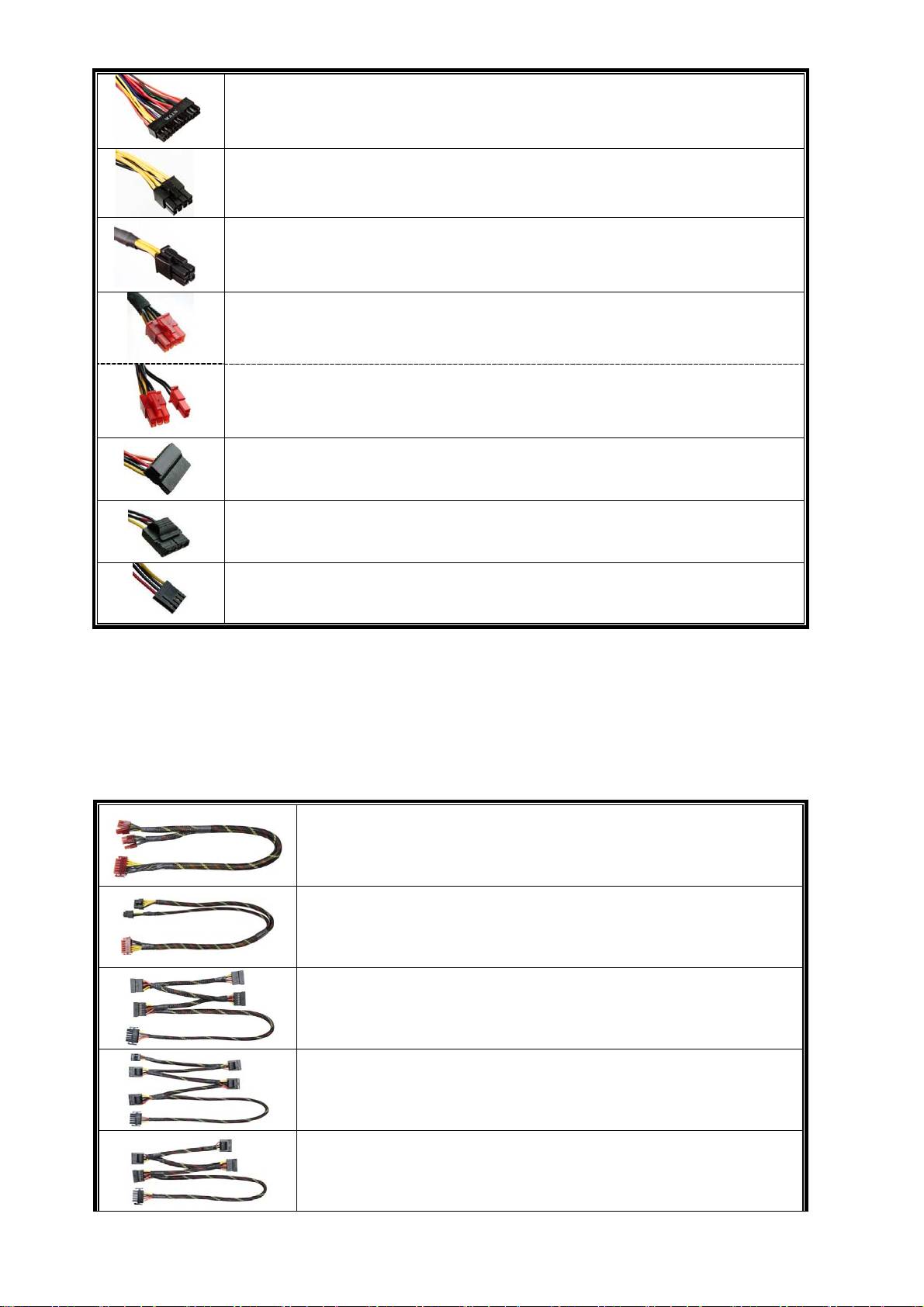

 CONNECTOR TYPES

24P Mainboard

For new generations of ATX/EEB/CEB server/workstation MB.

8P CPU +12V

8-pin configuration supports multi-CPU server/workstation systems and some

single extreme CPU systems.

4P CPU +12V

4-pin configuration supports certain single CPU systems.

6+2P (8P) PCI Express, in combined mode

8-pin configuration supports latest extreme graphic cards, which require 8-pin

PCI-E connector.

6+2P (8P) PCI Express, in split mode / 6P PCI Express

6-pin configuration supports most performance PCI-E graphic cards, which require

6-pin PCI-E connector.

# 1

SATA

For SATA/SAS drives.

# 2

4P Molex

For IDE/SCSI/SAS drives or some AGP graphic card with traditional 4P power in

socket.

FDD

For floppy drive or certain add-on card.

#1 Some SATA drives might accept SATA or 4P Molex power. Normally, use either one of power

connector to power the driver, BUT NOT BOTH! Please check the drive’s manual for details.

#2 Some MB might require this connector to share the +12V current from 24-pin Mainboard connector to

PCI-E slot. If your system has multiple extreme graphic cards, please plug this connector to MB

correspond socket and check the MB’s manual for details.

 MODULAR CABLES SUPPLIED

Use ONLY genuine ENERMAX modular cables coming with ENERMAX PSU. Third party cables

might not be compatible and might cause damage to your PSU and/or system, and use of third party

cable shall void PSU warranty.

EMC014-G: 2 x 6+2P (8P) PCI-E 2.0

Modular cable for 1 or 2 performance PCI Express graphic cards, which

needs 6P or 8P PCI-E connector.

EMC018-G : 8P & 4P +12V CPU/RAM power

Modular cable to support special heavy-duty workstation/server with more

than 4 CPUs and 16 RAMs.

EMC019-G: 4 x SATA drives

Modular cable for SATA/SAS drives like ODD and HDD.

EMC020-G : 4 x 4P Molex (IDE/SCSI) drives & 1 x FDD connector

Modular cable for IDE/SCSI/SAS drives and peripheral, plus 1 FDD power

connector.

5

EMC021-G: 2 x SATA & 2 x 4P Molex

Modular cable for SATA/SAS/IDE/SCSI drives and other peripherals.

EMC022 :24P MB & 8P CPU

Special note for System Integrators: If your system requires special modular cable configuration or

design, please contact an ENERMAX sales representative.

 ATTACHING / DETACHING THE MODULAR CABLES

Attaching the modular cable to PSU

5-pin / 12-pin connector on modular cable and PSU’s modular socket has an

arrow mark. To make correct connection is easy:

1. Black connector to black socket, and red to red.

2. Arrow mark to arrow mark.

3. Then you can easily plug in the connector.

Detaching the modular cable from PSU

5-pin / 12-pin connector on modular cable has two hooks to lock with the

PSU’s modular sockets. When unplug the modular cable from PSU, please

press two hooks together and gently pull out the cable.

BOOTING YOUR SYSTEM

Before booting your system, please check that:

1. Main power connector (24P) is properly connected.

2. CPU +12V power connector (4 or 8P configuration), and/or a 4P Molex connector (if required by

MB) is properly connected.

3. All other needed connectors are properly connected.

4. AC cord is properly connected to wall outlet and PSU AC inlet.

5. Close your system chassis.

6. Turn on the PSU by switching the ON/OFF switch to “ON”, and your system is ready.

PROTECTION, SAFETY & SECURITY

This ENERMAX PSU features multiple protections. In case of most abnormal situations, the power

supply will automatically turn off to avoid potential danger to itself and other PC components. It is

usually a malfunction of components or user’s negligence to trigger off a protection event. In such

circumstance, please check your PC devices and working environment for malfunction:

1. Turn I/O switch of power supply into “O” position, or disconnect AC cord from wall plug and

power supply AC inlet.

2. Check PSU for temperature by simply touching it. If it is very hot, this can be caused by

malfunction of case fans or the PSU fan itself and/or wrong positioning of your PC.

3. Wait some minutes until PSU cools off.

4. Reconnect AC cord to wall plug and power supply AC inlet.

5. Turn I/O switch of power supply into “I” position, and reboot your system.

6. Check, if all fans are working.

7. Contact technical support of the respective manufacturer of the component which you think might

8. be the cause to the problem. (e.g. MB, GPU or PSU)

If you have any question or need support, please contact your reseller or nearest ENERMAX

subsidiary/agent or ENERMAX headquarter service center.

©2012 ENERMAX Technology Corporation. All rights reserved. Specifications are subject to change without prior notice. Actual

product and accessories may differ from illustrations. Omissions and printing errors excepted. Content of delivery might differ in

different countries or areas. Some trademarks may be claimed as the property of others. Reproduction in any manner without the

written permission of ENERMAX is strictly forbidden.

6

Benutzerhandbuch

Sehr geehrte Kundin, sehr geehrter Kunde,

Vielen Dank, dass Sie sich für dieses ENERMAX-Netzteil (PSU) entschieden haben! Bitte lesen Sie sich

dieses Handbuch sorgfältig durch und folgen Sie bitte seinen Anweisungen bevor Sie das Netzteil

installieren!

Wir möchten Sie darauf hinweisen, dass moderne Systeme sehr empfindlich geworden sind und genau

definierte Bedingungen benötigen, um optimal ohne Ausfälle arbeiten zu können. Um solche Ausfälle zu

vermeiden und die Lebensdauer Ihres Systems zu verlängern, empfehlen wir Ihnen sicherzustellen, dass:

 Ihr System nicht neben einer Heizung oder einer anderen Wärmequelle steht.

 Ihr System nicht neben einer magnetischen Quelle steht.

 Ihr System nicht in einer feuchten und/oder staubigen und/oder vibrierenden Umgebung steht.

 Ihr System nicht dem direkten Sonnenlicht ausgesetzt ist.

 Ihr System ausreichend durch Lüfter gekühlt wird.

 Falls Sie ein Verlängerungskabel verwenden, stellen Sie bitte sicher, dass dieses dazu geeignet ist,

den maximalen Strombedarf sämtlicher angeschlossenen Geräte zu leisten. Andernfalls schließen

Sie bitte weitere viel Strom verbrauchende Geräte (wie Laserdrucker oder Monitor) an eine andere

Steckdose an. Ein Überschreiten der maximalen Durchleitungsfähigkeit des Verlängerungskabels

könnte zu einem Auslösen der Sicherung führen.

 Falls Sie eine USV (Unterbrechungsfreie Stromversorgung) verwenden möchten, nutzen Sie bitte

eine mit ausreichender Watt/VA-Kapazität. Z. B.:

Empfohlene kleinste USV-Kapazität

PSU Modell

(gemäß Effizienz & PFC bei entsprechender Last)

EPM1500EGT 1700W / 2400VA

EPM1350EWT 1500W / 2100VA

EPM1200EWT 1400W / 2000VA

＊ Falls Sie andere Geräte wie Monitor oder Drucker gleichfalls an die selbige USV anschließen

möchten, wählen Sie bitte eine USV mit höherer Kapazität gemäß der Summe der

Leistungsaufnahme aller angeschlossenen Geräte.

＊ Bitte verwechseln Sie nicht VA mit Watt und nutzen Sie bitte eine ausreichende USV.

Andernfalls verkürzt sich die Laufzeit der Batterie und gefährdet die Versorgung des Systems

im Batterie-Modus.

DETAILBESCHREIBUNG

① Ausgangskabel: Bitte lesen Sie den Abschnitt

„Kabel & Anschlüsse“.

# 1

② Lüfter.

# 1

③ Honigwabenluftauslass.

④ I/O Schalter*: separater Netzteil An/Aus-Schalter

# 2

(I=AN, O=AUS).

# 2

⑤ Stromeingang.

# 3

⑥ CordGuard

#1 Bitte blockieren Sie nicht die Lufteinlässe/Luftauslässe, um eine bestmögliche Systemkühlung zu gewährleisten.

Dieses PSU verfügt über eine besondere HeatGuard-Funktion: Wenn das System abgeschaltet oder in den ACPI

S3/S4 Schlafmodus gebracht wird, wird der PSU-Lüfter die Restwärme für 30-60 Sek. abführen und so die

Lebensdauer des Systems verlängern.

7

#2 Entfernen Sie immer das Stromkabel vom Netzteil, schalten Sie den I/O-Schalter auf „O“ und warten Sie, bevor

Sie am System arbeiten.

#3 Der Netzstecker kann sich auf unterschiedliche Weise lösen. Der ENERMAX-CordGuard fixiert den Stecker am

Netzteil. Er verhindert unfreiwillige Systemabstürze durch einen versehentlich gezogenen Netzstecker.

① Setzen Sie das Netzteil in das Gehäuse



② Drücken Sie die beiden Seiten des



ein. Stellen Sie sicher, dass der

CordGuard zusammen und befestigen Sie ihn

Netzschalter auf

an der dafür vorgesehenen Stelle.

“O“ (Aus) steht.

③ Schließen Sie das Netzkabel am Netzteil



④ Klappen Sie den CordGuard herunter und



an.

sichern Sie auf diese

Weise den Netzstecker.

1. Der CordGuard ist nur für Netzkabel geeignet, die mit CordGuard-kompatiblen ENERMAX-Netzteilen

ausgeliefert wurden. Andere Netzkabel sind mit dem ENERMAX-CordGuard ggf. nicht kompatibel.

2. Beim Zusammenbauen oder bei der Wartung des Systems ziehen Sie bitte immer den Netzstecker oder

stellen Sie den Netzschalter auf “O“(Aus).

KABEL & ANSCHLÜSSE

Alle Sockel und Anschlüsse sind so entworfen, dass ein Anschluss in falscher Ausrichtung nahezu

unmöglich ist. Der Anschluss an die kompatiblen Sockel gestaltet sich leichtgängig und ohne größeren

Widerstand. Wenn Sie einen originalen ENERMAX Anschluss nicht auf Anhieb mit einer Komponente

verbinden können, überprüfen Sie bitte, ob Sie die richtige Ausrichtung gewählt haben. Versuchen Sie es

keinesfalls mit Gewalt! Verändern Sie nicht die Anschlüsse! Dies könnte das Netzteil beschädigen und hat

das Erlöschen der Garantie zur Folge!

Folgende Grafik illustriert das Layout der modularen Sockel und deren DC Leitungsverteilung.

＊ Bitte schließen Sie den 16-Pin- und den 20-Pin-Stecker an den entsprechenden Sockeln an, um die

Stromversorgung der 24-Pin- und der 8-Pin-CPU-Stecker sicherzustellen.

＊ Dieses Netzteil besitzt eine Überstromsicherung (OCP) auf jeder einzelnen 12V-Leitung. Wenn zu viele

Komponenten an einer 12V-Leitung angeschlossen werden, kann es zur Auslösung der Überstromsicherung

kommen. Daher achten Sie bitte auf eine gleichmäßige Verteilung der Komponenten auf die einzelnen

12V-Leitungen, um optimale Stabilität und Sicherheit zu gewährleisten.

8
