Your Apple LED Cinema Display is designed to work seamlessly

with Mac computers that have a Mini DisplayPort connector.

It features an LED-backlit widescreen display, a MagSafe

connector to charge your MacBook computer, a built-in iSight

camera, a microphone, and a speaker system.

The instructions on the following pages help you set up and use your new display.

Learn how to:

 Connect your display to your computer

 Use your displays camera, microphone, speaker system, and USB ports

 Adjust your displays settings

Note: You can connect your Apple LED Cinema Display to a Mac desktop computer

that has a Mini DisplayPort.

Important: Carefully read all the installation instructions (and the safety information

starting on page 13) before you set up and use your display.

For information about the specic computers and graphics cards that are compatible

with your display, go to www.apple.com/displays.

6 English

Setting Up Your Display

Follow these steps to set up your Apple LED Cinema Display:

1 Remove the protective lm from the display and cables.

2 Insert the power cord into the display, and then insert the AC plug into a grounded

power outlet.

3 Plug the MagSafe connector into the MagSafe power port on your MacBook to charge

the battery and provide power to your computer.

7English

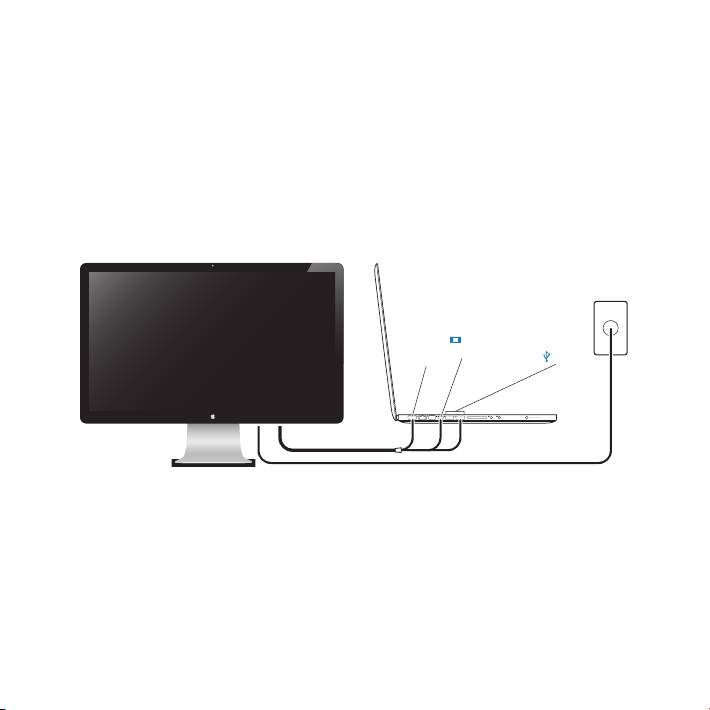

Apple LED Cinema Display

MacBook

Grounded

power outlet

Mini

MagSafe USB

DisplayPort

4 Connect the USB cable to your computer to use the display’s built-in iSight camera,

microphone, speaker system, and USB ports.

5 Connect the Mini DisplayPort cable to your computer.

6 Press the power (®) button on your computer to start it up. The display turns on

automatically when you start up your computer.

Setting Up Your MacBook with the Lid Closed

You can close the lid of your MacBook and use just your Apple LED Cinema Display.

Follow the setup instructions on the previous page and make sure the MagSafe

connector from the display is plugged into the MagSafe power port on your MacBook.

To use your Apple LED Cinema Display with your MacBook lid closed:

1 Connect an external USB keyboard and mouse to a USB port on your display, or use the

Bluetooth® Setup Assistant to set up a wireless keyboard and mouse.

2 Make sure your MacBook is turned on.

3 Close the lid on your MacBook to put it to sleep.

4 Wait a few seconds, and then press any key on the external keyboard or click the

mouse to wake your MacBook.

8 English

Using Your Display

Your Apple LED Cinema Display has a built-in iSight camera, microphone, and speaker

system. The USB connection between the display and your computer is required for

these features.

Microphone

Speaker system

9English

Built-in

iSight camera

Using the Built-in iSight Camera and Microphone

You can use the built-in iSight camera and microphone to capture still images, video,

and sound using applications such as iChat, iMovie, and Photo Booth.

To set up the camera and microphone with iChat:

1 Click the iChat icon in the Dock to open the iChat application.

2 Choose iChat > Preferences, and then click Audio/Video.

3 Choose Display iSight from the Camera pop-up menu.

4 Choose Display Audio from the Microphone pop-up menu.

Setting Up Sound Input and Output

You can listen to music, movies, games, and multimedia les through the speaker

system on your display. You can use the microphone to record sounds, or talk with

friends using iChat. Use Sound preferences to manage sound input and output.

To set up sound input:

1 Choose Apple () > System Preferences, and then click Sound.

2 Click the Input tab in Sound preferences.

3 Choose Display Audio to input sound through your displays microphone.

To set up sound output:

1 Choose Apple () > System Preferences, and then click Sound.

2 Click the Output tab in Sound preferences.

3 Choose Display Audio to hear sound through your displays speaker system.

If your Mac computer supports sound output through the Mini DisplayPort in addition

to the USB port, you can choose either Mini DisplayPort or USB Audio for audio output.

These sound settings are used whenever your computer is connected to your display.

They remain in eect until you change them.

10 English

Setting Up Your Apple LED Cinema Display as an Additional Display

When you leave the lid on your MacBook open, you can mirror the same desktop

image on both displays or use the additional display as an extension of your desktop.

Use Displays preferences to set up video mirroring or extended desktop.

To set up video mirroring or extended desktop:

1 Choose Apple () > System Preferences, and then click Displays.

2 Click the Arrangement tab and follow the onscreen instructions.

Adjusting the Resolution, Brightness, and Color

Your Apple LED Cinema Display can automatically adjust the screen brightness for

current light conditions using the built-in ambient light sensor. You can turn auto-

brightness on or o in Displays preferences.

To change the resolution or brightness:

1 Choose Apple () > System Preferences, and then click Displays.

2 Choose a resolution or drag the Brightness slider.

You can also use the brightness keys on an external Apple Keyboard to increase ( ) or

decrease ( ) the brightness of your display.

To change the display color prole or calibrate your display:

1 Click the Color tab in Displays preferences.

2 Choose a display color prole, or click Calibrate to open the Display Calibrator Assistant.

For more information about calibrating your display, choose Help > Mac Help in the

menu bar and search for calibrate.”

11English

Using the USB Ports and Security Slot

Your Apple LED Cinema Display has three powered USB ports on the back. Use these

ports to connect a mouse, keyboard, iPhone, iPod, or other USB peripheral.

Important: You can use these USB ports to charge your iPhone or iPod, even when

your display isn’t connected to a computer. If you use one of these ports to sync

information between your computer and an iPhone or iPod, make sure the displays

USB cable is connected to your computer.

USB ports

Security slot

To secure your display, attach a locking cable to the security slot.

12 English

Using a VESA Mounting Solution with Your Display

You can attach your display to an alternative mounting solution, using the VESA Mount

Adapter Kit available from the Apple Online Store at www.apple.com/store. Use the

kit to attach your display to any available VESA-compatible mounting solution. Simply

follow the instructions included with the kit.

Care and Safety

Before you lift or reposition your display, you may need to disconnect the cables and

power cord. Use correct lifting techniques when positioning the display. When lifting or

carrying the display, hold it by the edges. Don’t lift the display by the stand or the cord.

To clean the screen on your display:

1 Disconnect the power cord.

2 Use the cloth that came with your display, or another soft, dry cloth, to wipe dust from

the screen.

WARNING: Don’t clean the screen with a cleaner containing alcohol or acetone. Use a

cleaner intended for use with a screen or display. Never spray cleaner directly on the

screen. It may drip inside the display and cause damage.

13English

Don’t operate your display in areas with signicant amounts of airborne dust, or smoke

from cigarettes, cigars, ashtrays, stoves, or replaces, or near an ultrasonic humidier

using unltered tap water. Tiny airborne particles produced by smoking, cooking,

burning, or using an ultrasonic humidier with unltered water may, in rare instances,

enter the ventilation openings of your display and, under certain conditions, result in a

slight haze on the inside surface of the glass panel that covers the display.

Follow these safety guidelines for using your display:

 The only way to completely disconnect power is to unplug the power cord. Be sure to

pull the plug, not the cord.

 Disconnect power immediately if the power cord is frayed or damaged, if you spill

something on the display, or if the display falls or is damaged in some other way.

WARNING: Use only the power cord that came with your display. The power cord has

a three-wire grounding plug (a plug that has a third grounding pin) that ts only a

grounded AC outlet. If you are unable to insert the plug into an outlet because the

outlet is not grounded, contact a licensed electrician to replace the outlet with a

properly grounded outlet.

WARNING: Your display is a high-voltage component and should not be opened for

any reason, even when it’s unplugged. If your display needs service, see “Learning

More, Service, and Support” on page 17.

14 English

Ergonomics

Here are some guidelines for adjusting your display to reduce glare and to

accommodate your physical size and shape.

 Arrange the display so that the top of the screen is slightly below your eye level

when you’re sitting at the keyboard. The best distance from your eyes to the screen is

up to you, although most people tend to prefer 18 to 28 inches (45 to 70 cm).

 Position the display by tilting it up or down to minimize glare and reections from

overhead lights and nearby windows.

Shoulders

relaxed

Forearms and

hands in a

straight line

Screen positioned to

Forearms level

avoid reflected glare

or tilted slightly

Lower back

supported

Feet flat on the floor

or on a footrest

Thighs tilted

slightly

15English

Top of the screen at or

18–28 in. (45–70 cm)

slightly below eye level

(You may need to adjust

the height of your display

by raising or lowering

your work surface)

Clearance under

work surface

For more information about health, safety, and maintenance, go to the Apple

ergonomic website at www.apple.com/about/ergonomics.

Troubleshooting Your Display

Before performing any of these steps, make sure your computer is turned on, the

display is plugged into an outlet, all the cables are connected properly to your

computer and display, and your computer is not in sleep mode.

If the screen doesn’t have an image:

 Check the cables and connectors again to make sure they are connected properly to

your computer and the display.

 Make sure your computer is turned on and is not in sleep mode. If the lid on your

MacBook is closed, use the external keyboard or mouse to wake the MacBook from

sleep.

 Unplug the display’s power cord from the grounded power outlet, wait a few

minutes, then plug it in again.

 Reset the PRAM by restarting your computer while holding down the Command (x),

Option, P, and R keys until you hear the startup sound a second time.

If the screen is dim:

 Make sure the display brightness is set properly. Choose Apple () > System

Preferences and click Displays. Drag the Brightness slider to adjust the brightness.

 If the colors on the display are too saturated or not correct, you may need to calibrate

your display. Open Displays preferences, click the Color tab, click Calibrate, and follow

the instructions.

If your MacBook isn’t charging:

Make sure the MagSafe connector from your display is seated properly in the MagSafe

power port on your MacBook.

16 English

If the built-in iSight camera, microphone, speaker system, or USB ports on the

display aren’t working:

Make sure the USB cable from the display is rmly plugged into the USB port on your

computer. The displays camera, microphone, speaker system, and USB ports work only

when this cable is connected to your computer.

More Troubleshooting Information

You can nd more troubleshooting information on the Displays support website at:

www.apple.com/support/displays

Learning More, Service, and Support

You can nd more information about your display on the Apple website and in

Mac Help.

To learn about See

Using your display Mac Help and search for displays.”

Display service, support,

The Displays Support site at www.apple.com/support/displays.

discussions, troubleshooting,

and software downloads

The latest information about

The Apple Display site at www.apple.com/displays.

displays

Registering your display The Apple Product Registration site at www.apple.com/register.

17English

Specications

 Model number: A1316

 Resolution: 2560 x 1440 @ 60 Hz

 Ports: Three high-speed USB 2.0 ports on the back

 Camera and microphone: Built-in iSight camera with microphone

 Speakers: Built-in 2.1 speakers with 49 W output

Dimensions:

 Weight: 23.5 lb. (10.7 kg)

 Height: 19.2 inches (488.1 mm)

 Width: 25.65 inches (651.7 mm)

 Depth (with stand): 8.2 inches (208.13 mm)

 Viewable: 27 inches (685.8 mm) diagonal

Operating environment:

 Operating temperature: 50° to 95° F (10° to 35° C)

 Relative humidity: 20% to 80% (noncondensing)

 Altitude: 0 to 10,000 feet (0 to 3048 meters)

18 English
