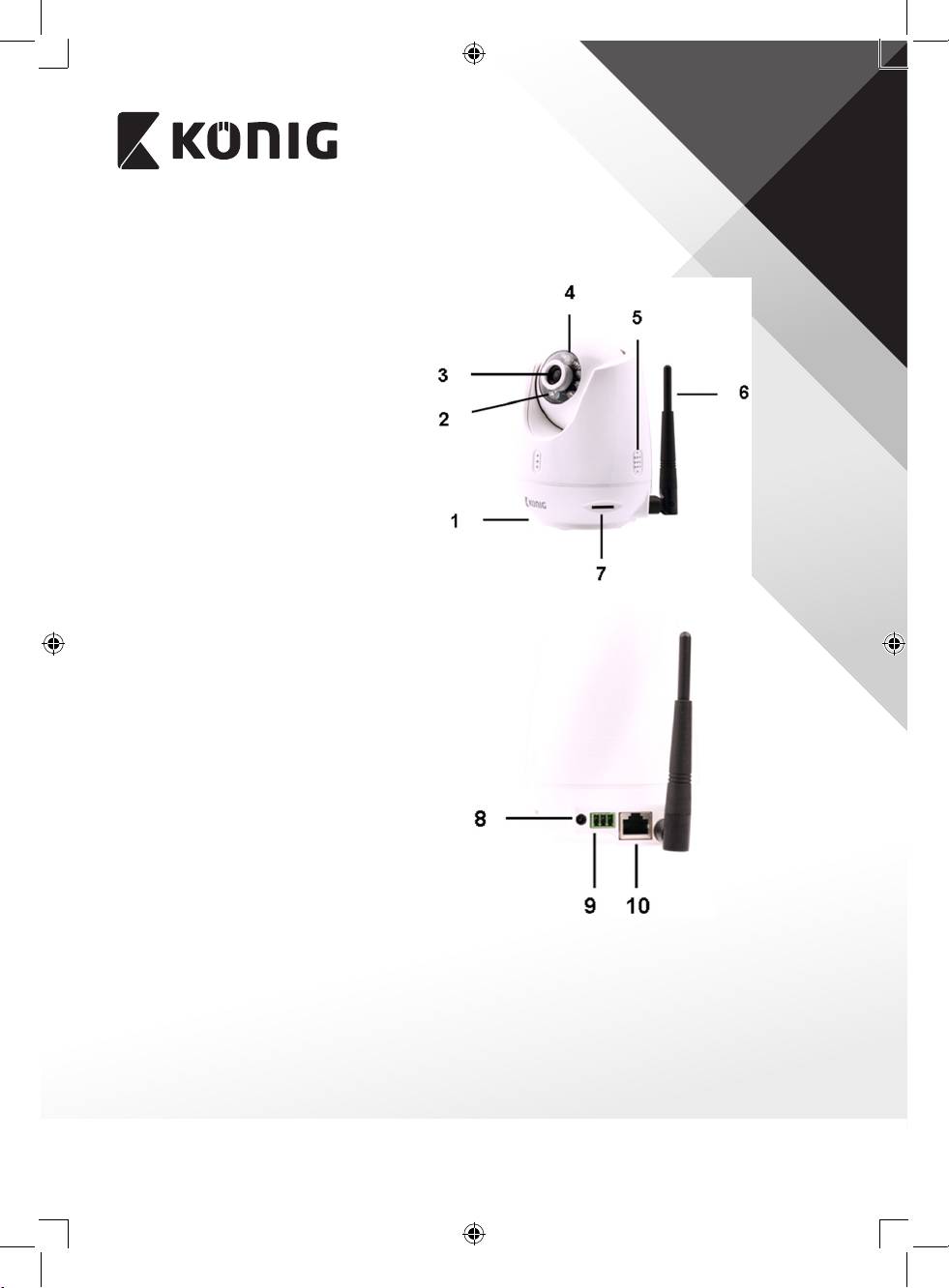

IP Baby and Child Monitor

ENGLISH

Introduction

The wireless kids monitor more than just a baby monitor with pan & tilt function enables

parents to check the complete room within seconds and makes this product a perfect

monitoring solution during the growing up years of their child. It facilitates remote viewing

on smart devices and will send out an e-mail and/or push notication if it detects any motion

or sound. For optimum protection the built-in temperature sensor will alert if the climate

in the child’s room changes. The kids monitor is easy to set up and requires no complex

conguration. The uCare Cam app, available for free on Google Play and Apple App Store,

oers a full scale of features enables parents to maintain a secure connection with their child

anytime, anywhere.

• We recommend that you read this manual before installing/using this product.

• Keep this manual in a safe place for future reference.

System requirements

• Device running Android 4.0 and up or iOS 5.0 and up.

• Router with Wi-Fi.

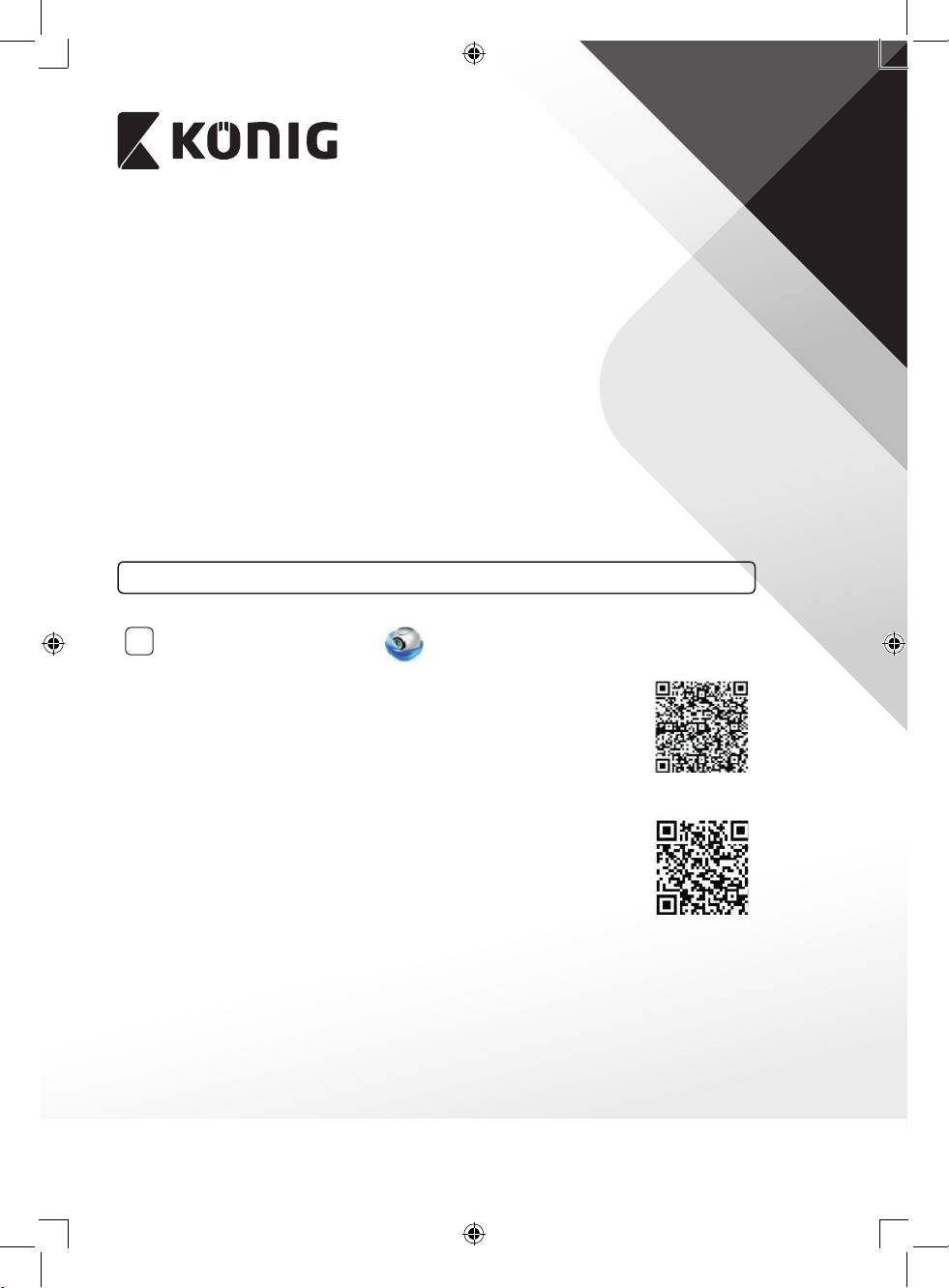

Installation of the App on your mobile device

1

Download the “uCare Cam” app from Google Play or the Apple App Store

Android Device

Google Play Store “uCare Cam” Download Link

iOS Device

Apple App Store “uCare Cam” Download Link

2

ENGLISH

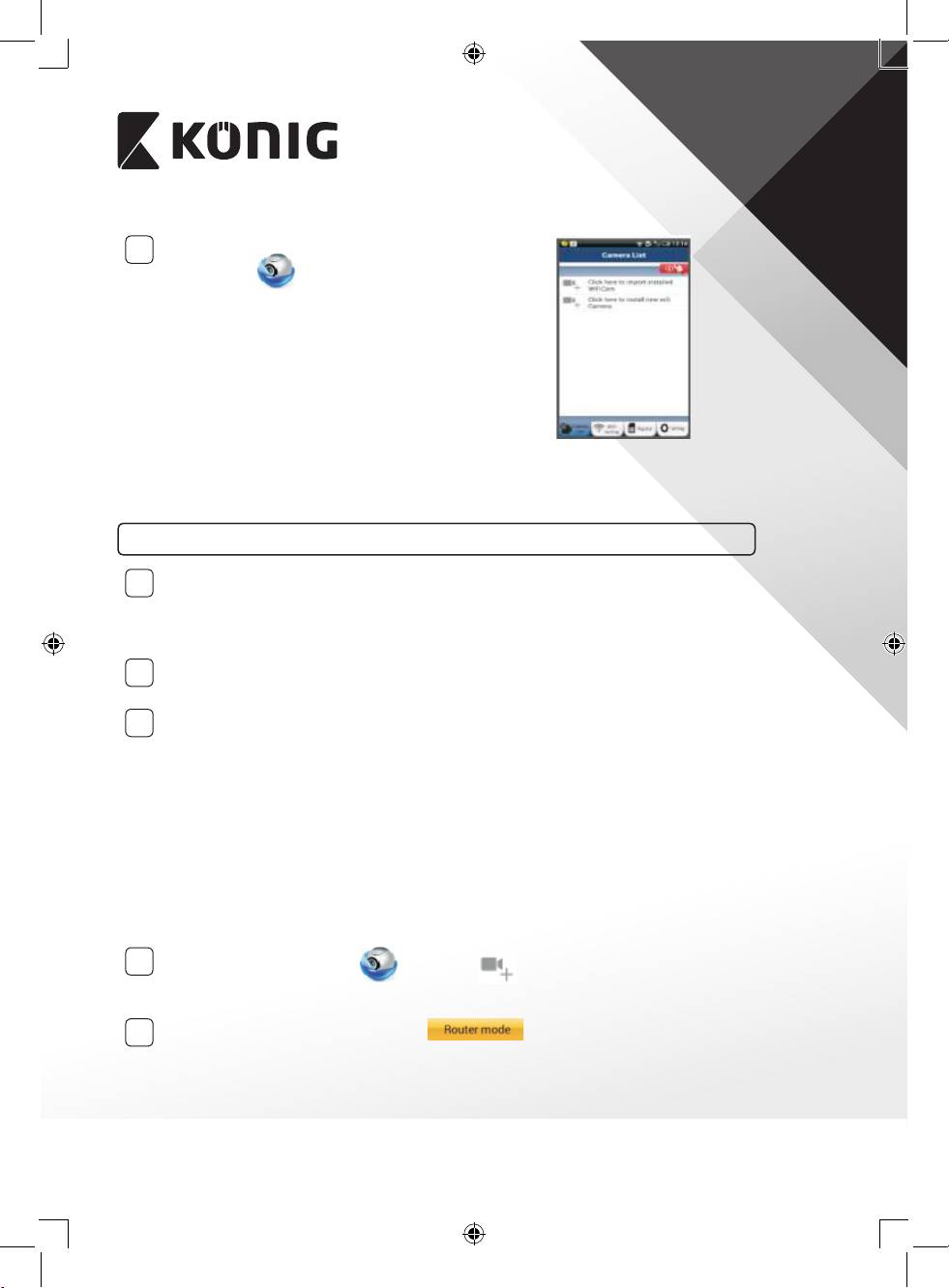

After the software installation is complete,

2

click the icon

to run the app.

Default “uCare Cam” password: 0000

Manager’s Name: admin

Manager’s Password: 0000

Figure1

“Camera List Window”

There are two options to continue the easy set-up of your IP baby and child monitor.

Install your IP baby and child monitor by ROUTER MODE

Power On

1

Plug the power adapter DC connector into the DC input port of the IP baby and child

monitor and then plug the power adapter into a wall outlet. The status LED on the IP

baby and child monitor will turn green for about 15 seconds.

Programme Loading

2

The status LED will ash red for about 15 seconds.

Router Link Mode

3

Wait until the status LED colour alternates between red and green.

Note:

If the LED does not turn red and green, then press the WPS/Reset button for more

than 10 seconds to restart the IP baby and child monitor.

When the green status LED lights up and holds, and then the red status LED ashes

twice, after which it changes into green, the IP baby and child monitor has entered

the RESET state. At this moment you can release the button and then wait until the

status LED alternates between red and green.

ANDROID (for Apple go to: Step 8)

Set the IP baby and child monitor to connect to the Wi-Fi Router

4

Open the “uCare Cam” App and select: in the screen of the Camera List

Window (see Figure1).

5

In the following screen select the tab:

3

ENGLISH

6

Then select the tab: to enter the next step (see Figure2).

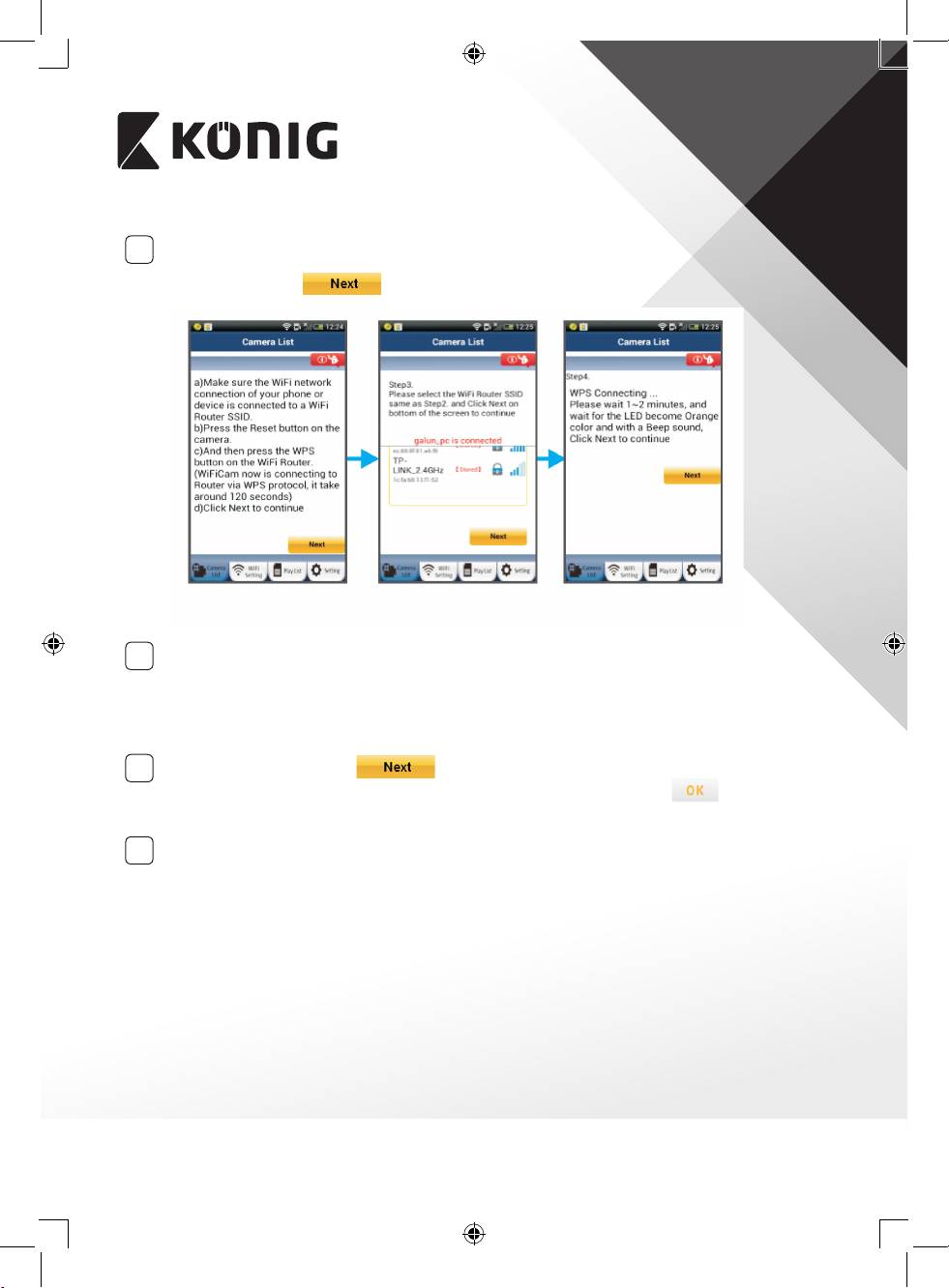

Follow the instructions in the Camera List window step by step (see Figure3 and

Figure4). Please enter a personal camera name and password (default 0000).

You are encouraged to change the default password after setup for security

purposes.

7

Click the tab: (see Figure5). The uCare Cam will automatically enter the

viewing window (see Figure6) and the IP baby and child monitor status LED will turn

orange.

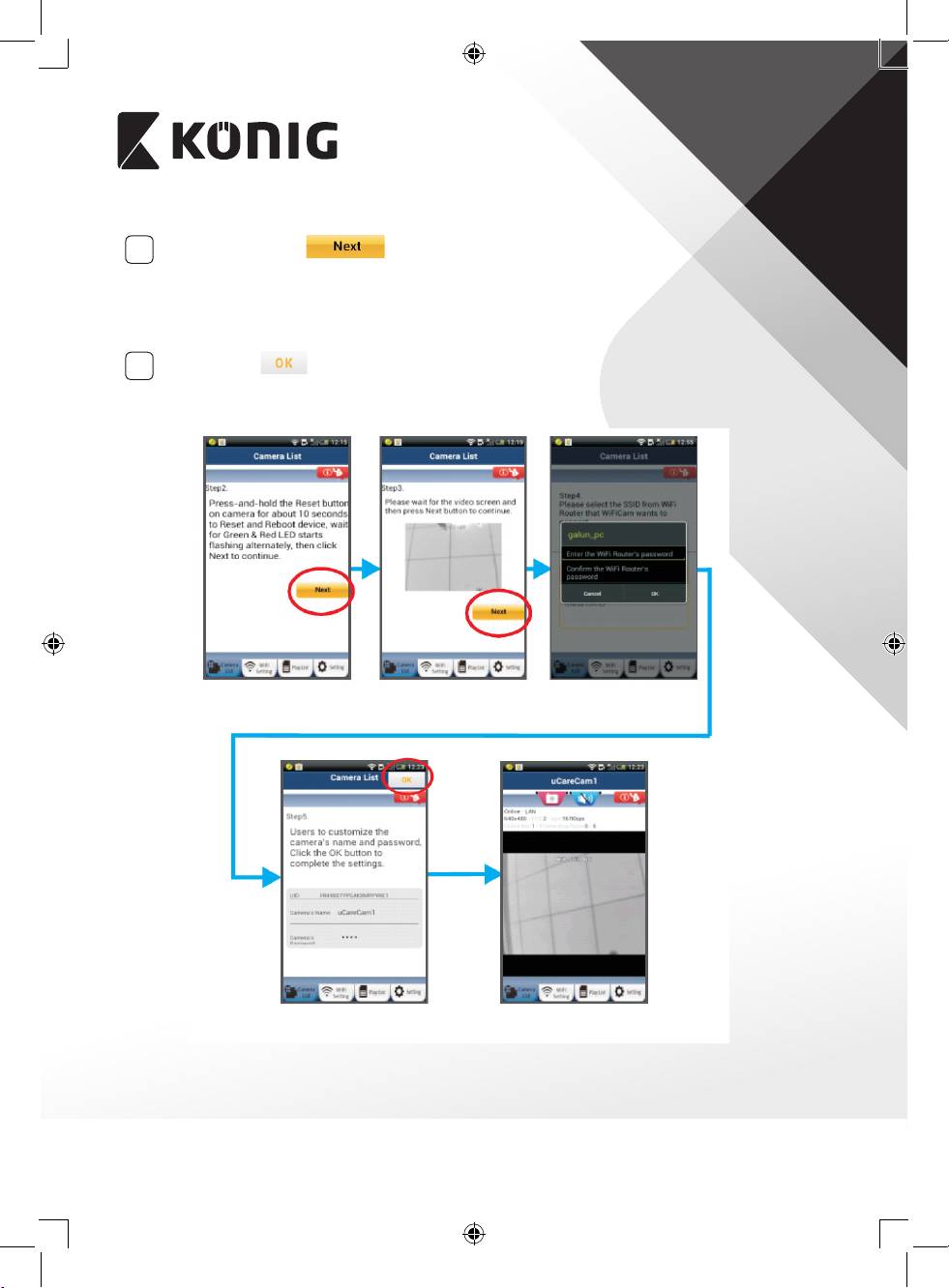

Figure2 Figure3 Figure4

Figure6Figure5

APPLE

Set the IP baby and child monitor to connect to the Wi-Fi router

4

ENGLISH

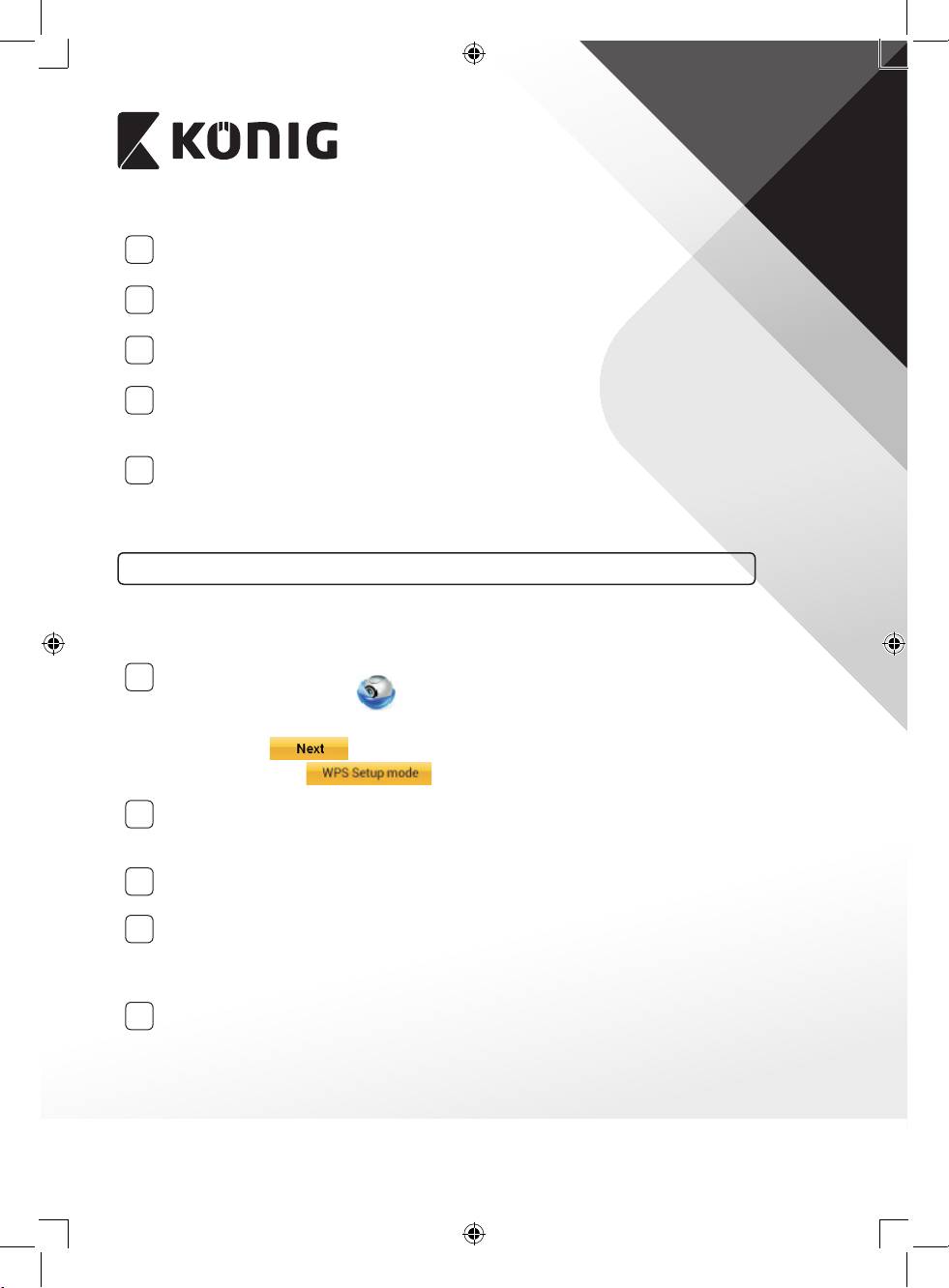

Open up “Settings” on your iOS device and select “Wi-Fi” and let it search for a

8

network. The network will be “Wi-Fi-cam-p2p”. Select “Wi-Fi-cam-p2p” to connect.

Now, open the “uCare Cam” app and select the tab at the bottom of the screen that

9

says “Wi-Fi Connect”.

Select “Router mode”, then “Next”. Enter here the Wi-Fi network name (SSID) and

10

password of your home router.

After the IP baby and child monitor receives this information, it will restart. Please

11

wait for it to start up and connect to your Wi-Fi router. When it successfully connects,

the status LED colour will turn orange. It may take up to 5minutes.

Then select the camera name in the “uCare Cam” app to connect.

12

Note: If the status LED colour does not turn orange, please check your Wi-Fi router

and make sure the IP baby and child monitor is within the signal area of your Wi-Fi

router. Then try this setup again.

Install your IP baby and child monitor by WPS connection mode

If your Wi-Fi router has a WPS (Wi-Fi Protected Setup) button, you can use it to set up the IP

baby and child monitor. (Must enable WPA/WPA2 encryption in Router). On the Wi-Fi router,

you will see a button labelled “WPS”. It may also be called “QSS” or “AOSS”

Setup Wi-Fi - WPS mode

1

Open the “uCare Cam” app

and select “Wi-Fi Setting” or “Wi-Fi Connect” at the

bottom of the screen.

Select the tab:

Then select the tab: to enter Step 2 (see Figure8).

Enter WPS mode

2

Power on your IP baby and child monitor. The status LED on the IP baby and child

monitor will be green for about 15seconds.

Programme Loading

3

The status LED will ash red for about 15 seconds.

Press the WPS button on your IP baby and child monitor

4

Wait until the status LED ashes between red and green, then press and hold the

WPS/RESET button on your IP baby and child monitor for about 2 seconds to enter

WPS mode. The status LED will be ashing green.

Enter WPS mode on the Wi-Fi router

5

Press the WPS button on the Wi-Fi router

5

ENGLISH

Selecting the Wi-Fi router

6

Select the Wi-Fi router of your choice in the screen (see Figure9).

Then select the tab

to enter next step (see Figure10).

Figure8 Figure9 Figure10

IP baby and child monitor connects with Wi-Fi router

7

Wait about 1-2 minutes. If the IP baby and child monitor is successfully connected to

the Wi-Fi router, the status LED will become orange.

Otherwise the status LED will become a ashing red light. If the setup is not

successful, please go back to Step 1 and try again.

8

If successful, select the tab:

(see Figure11), and follow the instructions.

Please enter a camera name and password for security and select the tab:

(see Figure13).

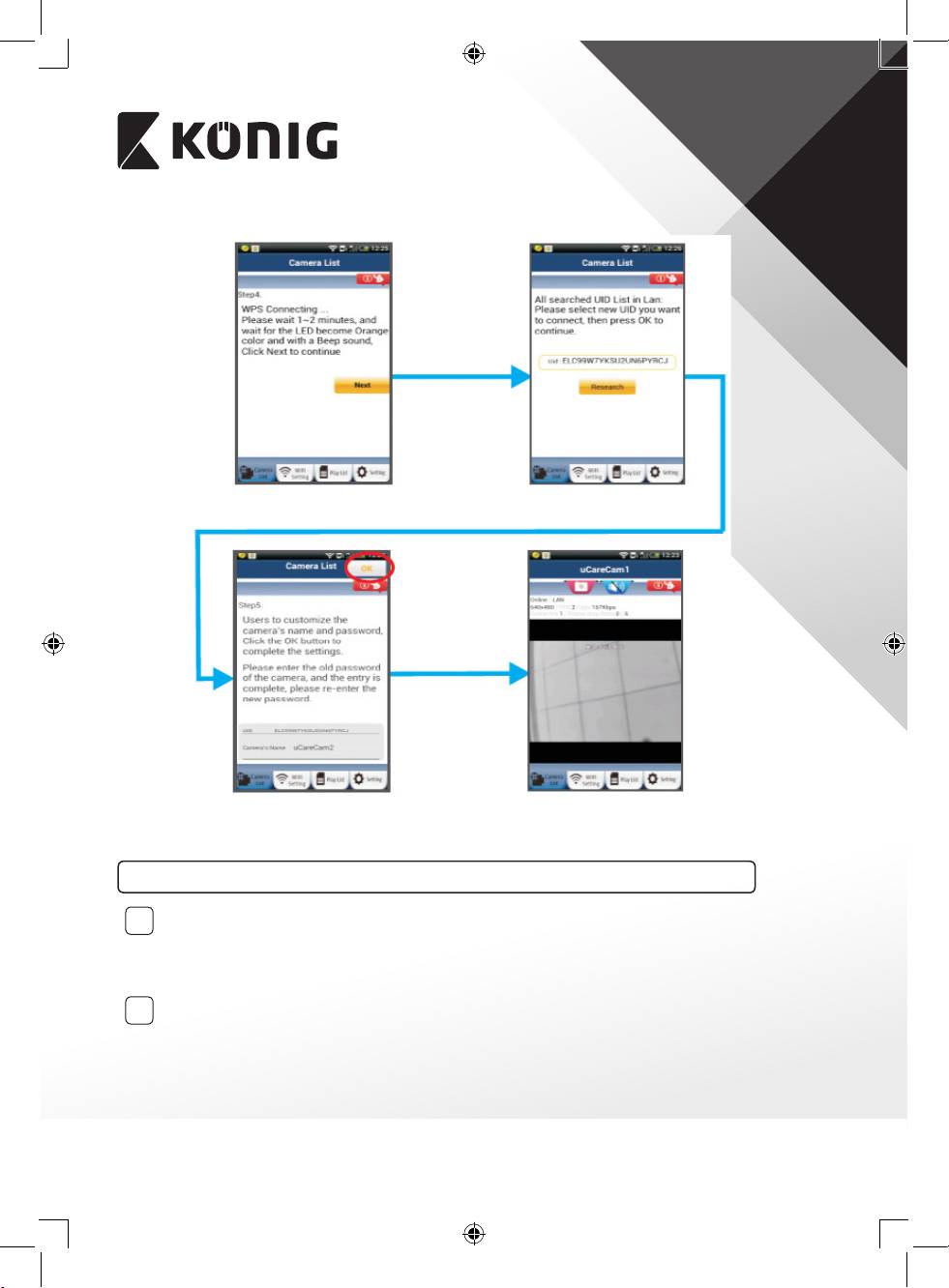

The IP baby and child monitor will automatically enter the viewing screen (see

9

Figure14).

6

ENGLISH

Figure11

Figure12

Figure13

Figure14

Startup IP baby and child monitor that already complete Wi-Fi connection

Power On

1

Plug the power adapter DC connector into the DC input port of the IP baby and child

monitor and then plug the power adapter into a wall outlet. The status LED on the IP

baby and child monitor will turn green for about 15 seconds.

Programme Loading

2

The status LED will ash red for about 15 seconds.

7

ENGLISH

Searching Wi-Fi Router

3

The status LED will ash green until the Wi-Fi router

is found (up to 5minutes).

Once the router is found, the status LED will become

orange.

If the IP baby and child monitor cannot connect to

the Wi-Fi router, please check the Wi-Fi router status

or re-install.

In the app, select the camera name that is shown in

the Camera List, and the viewing window will open

(see Figure15).

Figure15

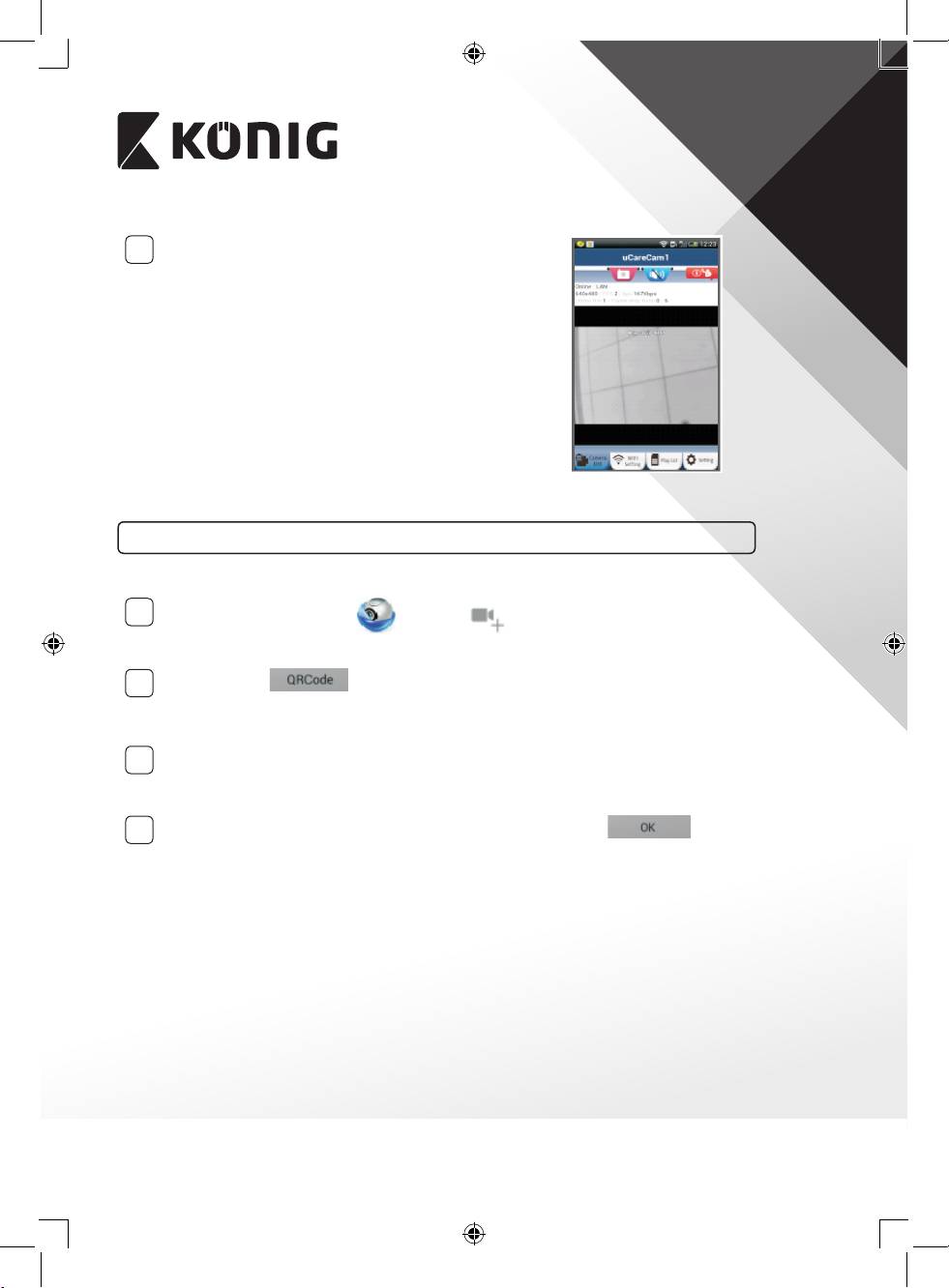

Add already installed IP baby and child monitor to the app

ANDROID (for Apple go to: Step 5)

1

Open the “uCare Cam” app and select in the Camera List Window screen

(see Figure16) for adding an IP baby and child monitor.

2

Select the tab:

Your device will now enter the QR code mode.

Note: you need to have a QR code scanner installed on your device.

Locate the QR code on the backside of the IP baby and child monitor and scan the

3

QR code. After scanning the QR code, the UID (Unique ID code) appears in the screen

of your device (see Figure17).

4

Enter a personal camera name and password and select the tab:

(seeFigure17).

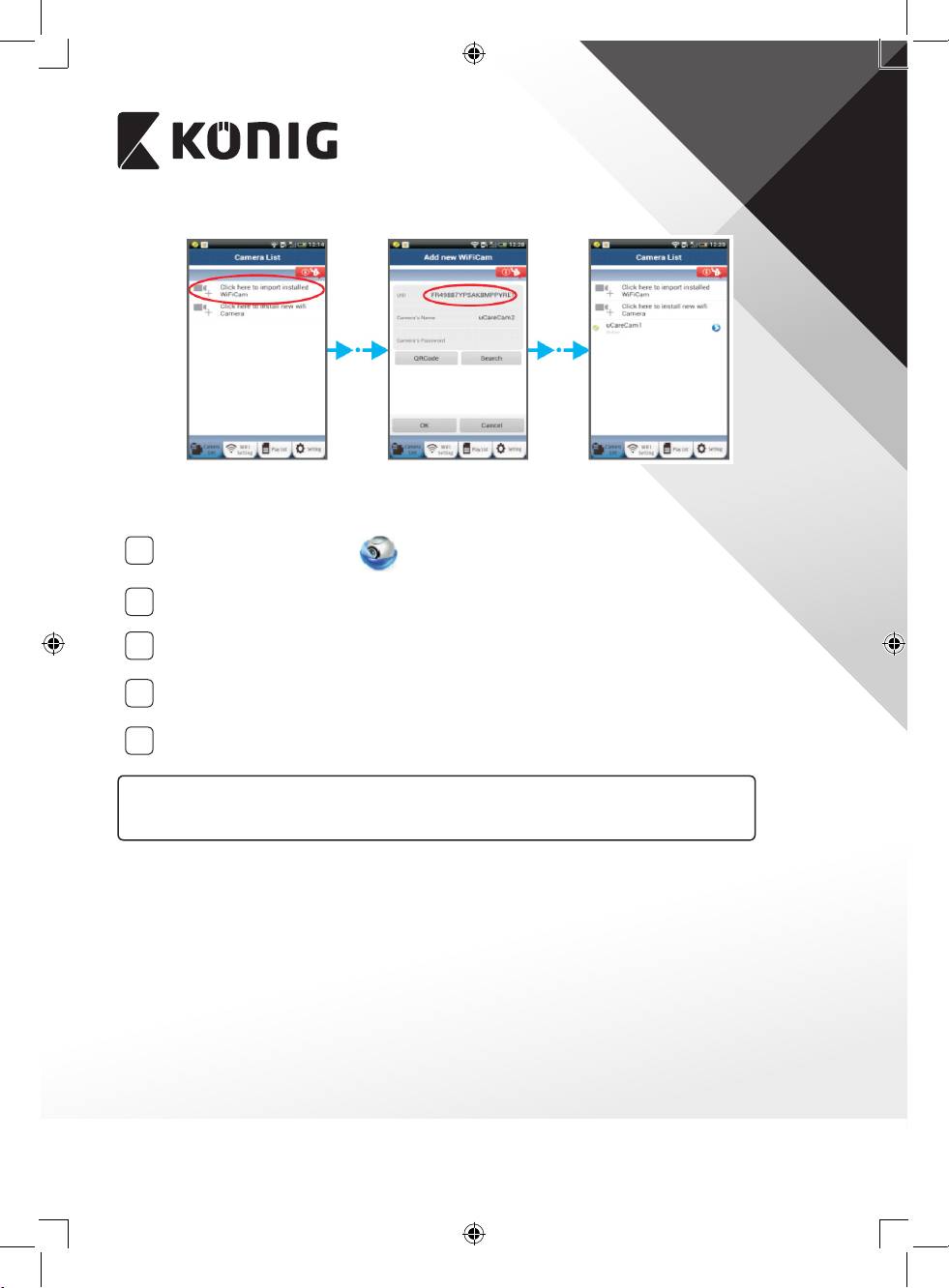

The new camera will be added to the list (see Figure18).

8

ENGLISH

Figure16 Figure17 Figure18

APPLE

5

Open the App “uCare Cam” .

6

Select, in the camera list window, the “+” sign on the right top of the screen.

Select option “Scan camera QR code”.

7

Note: you need to have a QR code scanner installed on your device.

Locate the QR code on the backside of the IP baby and child monitor and scan the

8

QR code.

The UID (Unique ID code) will show up after scanning the QR code.

9

Enter a personal camera name and select “DONE” on the top right side of the screen.

For further explanation of the app, the IP baby and child monitor and the FAQ, please

check the FULL manual (English only) on the CD supplied with this product.
