American Sanders OBS 18DC Orbital Sander: инструкция

OBS-18

OBS-18DC

Operator's Manual

Bedienungshandbuch

Manual del operador

Manuel de l’utilisateur

Manuale per l’operatore

Руководство по эксплуатации

Active Models: 07076B, 07081B, 07083B, 07115A

Obsolete Models: 07079B, 07086B, 07122A, 07087B, 07121A

READ THIS BOOK

EN

English (2-9)

LESEN SIE DIESES HANDBUCH

DE

Deutsch (10-17)

LEA ESTE MANUAL

ES

Español (18-25)

LISEZ CE MANUEL

FR

Français (26-33)

IMPORTANTE

IT

Italiano (34-41)

ПРОЧТИТЕ ЭТУ КНИГУ

RU

Руccкий (42-49)

Part No. LT068700 3/14

ENGLISH

EN

READ THIS BOOK

This book has important information for the use and safe operation of this machine. Failure to read this book prior to

operating or attempting any service or maintenance procedure to your Clarke American Sanders machine could result

in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have

training in the operation of this machine before using it. If your operator(s) cannot read this manual, have it explained

fully before attempting to operate this machine.

All directions given in this book are as seen from the operator’s position at the rear of the machine.

Contents of this Book

Operator Safety Instructions ............................................................................... 3

Introduction and Machine Specications ............................................................ 4

Machine Transportation ...................................................................................... 4

Machine Set-Up .................................................................................................. 5

Operating Instructions ........................................................................................ 7

Troubleshooting .................................................................................................. 8

Sanding Cuts and Sandpaper ............................................................................ 9

SECTION II Parts and Service Manual

Base Assembly ............................................................................................ 52-53

Motor Assembly - Standard .............................................................................. 54

Motor Assembly - Dust Control ........................................................................ 55

Handle Assembly - 115V .................................................................................. 56

Handle Assembly - 230V .................................................................................. 57

Electrical Schematics ....................................................................................... 58

WARNING!

The Products sold with this Manual contain or may contain chemicals that are known to certain governments (such as the State of

California, as identied in its Proposition 65 Regulatory Warning Law) to cause cancer, birth defects or other reproductive harm. In

certain locations (including the State of California) purchasers of these Products that place them in service at an employment job site

or a publicly accessible space are required by regulation to make certain notices, warnings or disclosures regarding the chemicals

that are or may be contained in the Products at or about such work sites. It is the purchaser’s responsibility to know the content of,

and to comply with, any laws and regulations relating to the use of these Products in such environments. The Manufacturer disclaims

any responsibility to advise purchasers of any specic requirements that may be applicable to the use of the Products in such

environments.

®

-2- Clarke

American Sanders Operator's Manual (EN) - OBS-18/18DC

ENGLISH

EN

OPERATOR SAFETY INSTRUCTIONS

DANGER means: Severe bodily injury or death can occur to you or other personnel if the DANGER

statements found on this machine or in this Owner’s Manual are ignored or are not

adhered to. Read and observe all DANGER statements found in this Owner’s Manual

and on your machine.

WARNING means: Injury can occur to you or to other personnel if the WARNING statements found on

your machine or in this Owner’s Manual are ignored or are not adhered to. Read and

observe all WARNING statements found in this Owner’s Manual and on your machine.

CAUTION means: Damage can occur to the machine or to other property if the CAUTION statements

found on your machine or in this Owner’s Manual are ignored or are not adhered to.

Read and observe all CAUTION statements found in this Owner’s Manual and on your

machine.

DANGER: Failure to read the Owner’s Manual prior to operating or servicing your Clarke American Sanders machine could result in

injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have train-

ing in the operation of this machine before using it. If you or your operator(s) cannot read English, have this manual

explained fully before attempting to operate this machine.

DANGER: • Sanding/nishing wood oors can create an explosive or combustible environment. Do not operate this machine around

solvents, thinners, alcohol, fuels, oor nishes, wood dust or any other ammable materials. Cigarette lighters, pilot

lights, electrical sparks and all other sources of ignition should be extinguished or avoided. Keep work area well venti-

lated.

 •Dust generated from sanding wood oors can spontaneously ignite or explode. Promptly dispose of any sanding dust in a

metal container clear of any combustibles. Do not dispose in a re.

DANGER: • Electrocution could occur if the machine is being serviced while the machine is connected to a power source. Disconnect

the power supply before servicing.

  • Electrocution or re could occur if the machine is being operated with a damaged power cord. Keep the power cord clear

of the pad. Always lift the cord over the machine. Do not move the machine by the power cord.

• Shock hazard. Do not use the machine if it has been rained on or sprayed with water.

DANGER: To avoid injury keep hands, feet, and loose clothing away from all moving parts on the machine. Disconnect the power cord

before replacing the pad, changing the abrasive, or when servicing. Do not operate the machine unless all guards are in

place. Never leave the machine unattended while connected to a power source.

WARNING: Injury can occur if protective clothing or equipment is not used while sanding. Always wear safety goggles, protective cloth-

ing, and dust mask while sanding.

WARNING: This sander is not to be used on pressure treated wood. Some pressure treated woods contain arsenic and sanding pres-

sure treated wood produces hazardous dust. Inhaling hazardous dust from pressure treated wood can cause serious injury

or death. Sanding pressure treated wood decks or uneven surfaces can damage the sander which is not covered under

warranty or damage waiver.

WARNING: Any alterations or modications of this machine could result in damage to the machine or injury to the operator or other

bystanders. Alterations or modications not authorized by the manufacturer voids any and all warranties and liabilities.

®

Clarke

American Sanders Operator's Manual (EN) - OBS-18/18DC -3-

ENGLISH

EN

Introduction&MachineSpecications

The OBS-18 or OBS-18DC can be used on a variety of surfaces. It is an ideal tool for wood ooring maintenance

and restoration work. It is also suitable for cleaning hard surfaces such as tile or Terrazzo.

Model OBS-18 OBS-18DC

Code Number 07076B 07079B / 07116A / 07122A 07081B 07083B /07115A / 07121A

07086B 07087B

Voltage/Frequency 115V/60Hz 230V/50Hz 115V/50Hz 115V/60Hz 230V/50Hz 115V/50Hz

Amperage (A) 10 5 10.5 10 5 10.5

Motor 1 hp 0.75 kw 0.75 kw 1hp 0.75kw 0.75kw

Pad Size 12” x 18” 305 x 457 mm 305 x 457 mm 12” x 18” 305 x 457mm 305 x 457mm

Orbits Per Minute 3600 3000 3000 3600 3000 3000

Orbit Dia. 1/4 inch 6.4 mm 6.4 mm 1/4 inch 6.4 mm 6.4 mm

Shipping Weight 125 lbs. 57 kg. 57 kg. 125 lbs. 57 kg 57 kg

Noise (dBA) 74 74 74 74 74 74

Vibration (m/s/s) 11.2 11.2 11.2 11.2 11.2 11.2

Machine Transportation

To transport the machine, follow this procedure:

1. Unplug machine from wall outlet and wrap cord.

2. Raise and lock the handle to the upright position. To lock the handle, pull

up on the Handle Release Compression Lever. See gure 1.

3. Grasp the machine at the lifting sites and place in cargo area. See gure 2.

WARNING: The machine is heavy (125 lbs./57kg). to avoid injury or

damage to the machine use a rm grip and proper lifting

technique. Get assistance if necessary.

4. Secure machine to prevent movement in cargo area.

PERSON #2

PERSON #1

Figure # 1

Figure # 2

®

-4- Clarke

American Sanders Operator's Manual (EN) - OBS-18/18DC

ENGLISH

EN

Machine Setup

To prepare the machine for use follow this procedure:

1. Familiarize yourself with the machine. Read all danger,

warning, and caution statements and the Operation and

Parts Manual before operating the machine. If you or the

operator are unable to read English, have this manual fully

explained before attempting to operate this machine.

2. Install or replace pad. The pad should be replaced if it has

become matted down to a thickness of 3/8” or less. To

install or replace the pad, follow these instructions:

a.) Lock handle in the upright position.

b.) Tilt the machine back until it fully rests on the handle.

c.) Standing over the machine, remove existing pad

then center new pad over grip face.

Figure # 3

d.) Press pad against grip face until the hooks in the

driver have set in the pad. See gure 3.

e.) Return machine to the upright position.

CAUTION: Damage to the grip face will occur if the

machine is operated without a pad or with

a pad that is 3/8” or thinner.

WARNING: Never put yourself or let others be in

a position to get injured if the machine

should tip or fall, while replacing the pad or

changing abrasive.

®

Clarke

American Sanders Operator's Manual (EN) - OBS-18/18DC -5-

ENGLISH

EN

Machine Setup

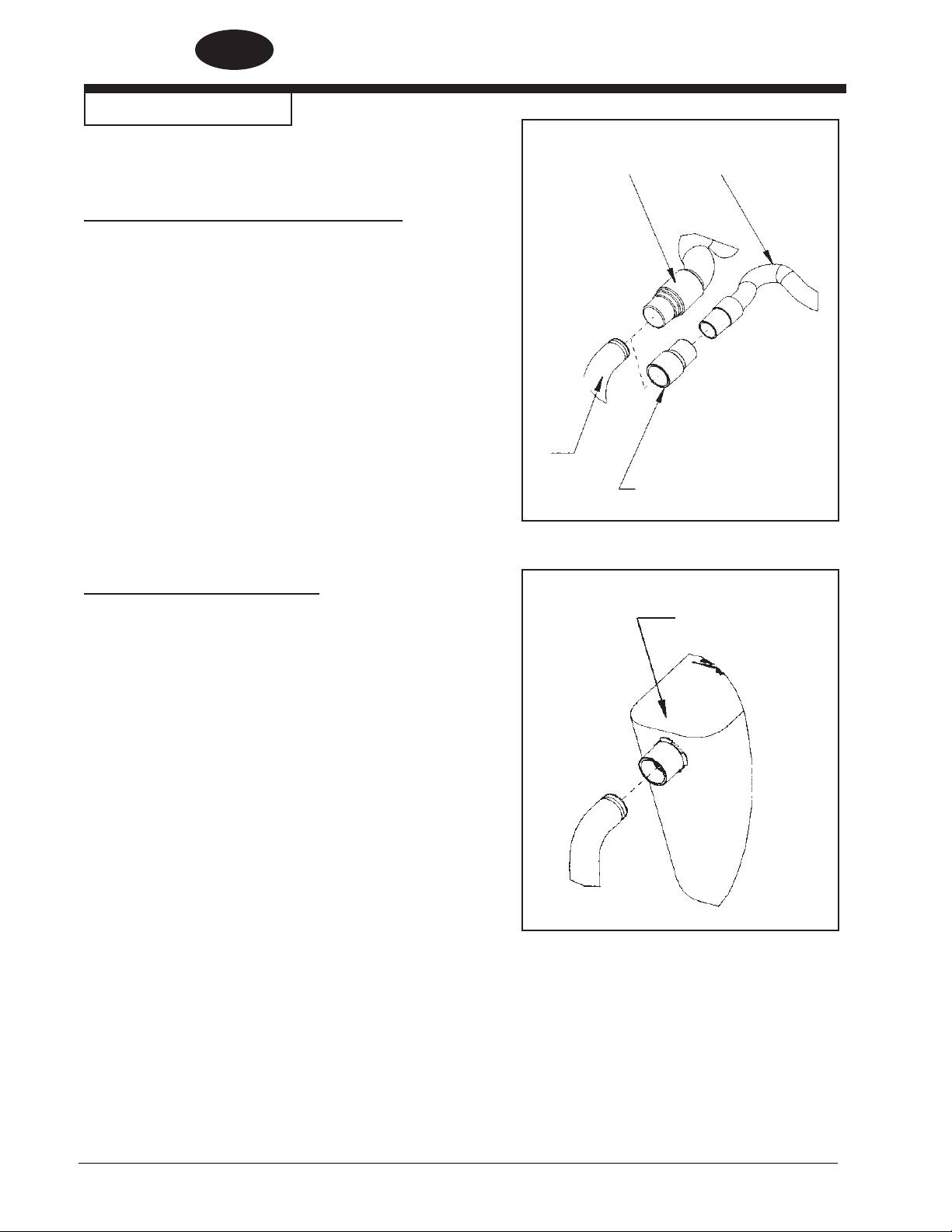

This sanding machine is designed to be operated with a remote vacuum

1.5" Hose from

A

D

vacuum system

dust collection system or with the included dust bag.

2" Hose from

(not included)

vacuum system

(not included)

Preparing Remote Vacuum Dust Collection Systems

To prepare the machine for remote vacuum dust collection systems that

have a 2” hose end, follow this procedure:

1. Install 2” hose end (gure 4, A) directly into the exhaust tube (gure

4, B).

2. The exhaust tube can be rotated for optimum convenience.

To prepare the machine for remote vacuum dust collection systems that

have a 1 ½” hose end, follow this procedure:

B

1. Install the 2” x 1½” hose end adaptor (Part No. 30563A) (gure 4, C)

Exhaust Tube

over the exhaust tube (gure 4, B).

C

(30563A) 2" Tube x 1.5" hose adaptor

2. Insert 1 ½” hose end (gure 4, D) into the adaptor (gure 4, C).

Figure 4

NOTE: Start the remote vacuum collection system before operation.

Preparing to use the included dust bag

Install the dust bag by

pressing the end onto the

exhaust tube until the ring

To prepare the machine for use with the included dust bag (Part No.

locks into the groove.

53741A), follow this procedure:

1. Install the dust bag by pressing the end onto the exhaust tube until

the ring locks into the groove (gure 5). This is best done by press-

ing on the back of the bag opening with the palm of your hand.

2. The exhaust tube can be rotated for optimum convenience.

3. To remove the dust bag from the exhaust tube, pry up the end of the

bag opening to partially release the internal rib from the groove, then

pull.

4. To empty the dust bag, unzip the disposal ap and force contents out

by inverting the bag.

NOTE: For best results, empty frequently. Follow all warnings

posted in this manual and on the dust bag.

Figure 5

®

-6- Clarke

American Sanders Operator's Manual (EN) - OBS-18/18DC

ENGLISH

EN

Operating Instructions – Sanding

Operating Instructions - Polishing

To operate the machine as a sander follow this procedure:

To operate the machine as a polisher follow this procedure:

1. Move machine to work location. Decide the best approach to

sanding the desired area. When sanding the area, work so

WARNING: Injury can occur if the machine is connected

that you are moving away from the power supply. This will

to a power source while installing the pad or

help to avoid entanglement with the power cord and reduce

abrasive. Disconnect the machine before

the need to move the power cord as frequently.

installing the pad/abrasive.

2. Install the abrasive. Use the same procedure outlined in MA-

1. Connect the machine to an appropriately fused and ground-

CHINE SETUP for installing the pad, to install the abrasive.

ed circuit.

Peel the lm off the back of the abrasive; center the abrasive

over the pad and press it against the pad. The adhesive on

2. Release the handle by pressing up on the locking lever.

the abrasive will hold it to the pad.

Bring the handle to a comfortable position.

NOTE: When using screen abrasive, set the screen on

CAUTION: Do not lock the handle. Locking the handle

the oor then move the machine over the screen.

will prevent the machine from resting evenly

Lower the machine until the pad comes to rest on

on the pad and diminish the machine perfor-

the screen. Make sure the screen is centered on the

mance and reliability.

pad.

3. Push the interlock button (1), and apply pressure to the

WARNING: Injury can occur if the machine is connected

levers (2). To stop the machine, release the levers (2). See

to a power source while installing the pad or

gure 6.

abrasive. Disconnect the machine before

installing the pad/abrasive.

CAUTION: To prevent damage to the ooring and to

reduce swirling, keep the machine in motion

3. Connect the machine to an appropriately fused and grounded

while the motor is running.

circuit.

4. Release the handle by pressing up on the locking lever. Bring

the handle to a comfortable position.

CAUTION: Do not lock the handle. Locking the handle

will prevent the machine from resting evenly

on the pad and diminish the machine perfor-

mance and reliability.

5. Push the interlock button (1), and apply pressure to the levers

(2). To stop the machine, release the levers (2). See gure 6.

CAUTION: To prevent damage to the ooring and to

reduce swirling, keep the machine in motion

while the motor is running.

NOTE: For sanding cuts and sandpaper, see page 9.

115V MODELS 230V MODELS

1

2

2

1

2

2

Figure # 6

®

Clarke

American Sanders Operator's Manual (EN) - OBS-18/18DC -7-

ENGLISH

EN

Troubleshooting

Problem Cause Action

Motor will not start. No power.

Check power supply and connection

Interlock not depressed.

Depress Interlock before activating control

lever.

Defective switch/ Bad connection

Contact an authorized Clarke

American Sanders Dealer.

Motor fails to start / runs

Low voltage from excessive length

Use a 14 Ga extension cord, not to exceed

sluggish.

or undersized extension cord.

50’ length.

Defective start capacitor.

Contact an authorized Clarke

American Sanders Dealer.

Defective start switch.

Contact an authorized Clarke

American Sanders Dealer.

Defective start/run capacitor

Contact an authorized Clarke

American Sanders Dealer.

Defective motor low voltage

Contact an authorized Clarke

American Sanders Dealer.

Fuse / Circuit Breaker repeatedly

Low voltage.

Eliminate extension cord.

trips.

Locate power source closer to

work site. Have voltage checked by

a qualied electrician.

Bad connection.

Contact an authorized Clarke

American Sanders Dealer.

Defective motor.

Contact an authorized Clarke

American Sanders Dealer.

®

-8- Clarke

American Sanders Operator's Manual (EN) - OBS-18/18DC

ENGLISH

EN

SANDING CUTS AND SANDPAPER

Initial Cut

The purpose of the initial cut is to remove old nish and gross imperfections on the oor surface. Use a course

(20-36 grit) grain abrasive.

Final Cuts

The purpose of a nishing cut is to remove the scratches produced during the initial cut. Use a  ne (60-80 grit)

grain abrasive. If the surface remains rough after a nishing cut, it may be necessary to use an even ner grain

of abrasive (80-100grit). Care should be taken in selecting the grit size of the abrasive. A very  ne grain will

close the pores on a wood oor making admission of a stain difcult.

If glazing or burning should occur the abrasive has dulled and must be replaced.

®

Clarke

American Sanders Operator's Manual (EN) - OBS-18/18DC -9-
