Pyramida N 60: Cooking hood N 60 MAINTENANCE MANUAL EN

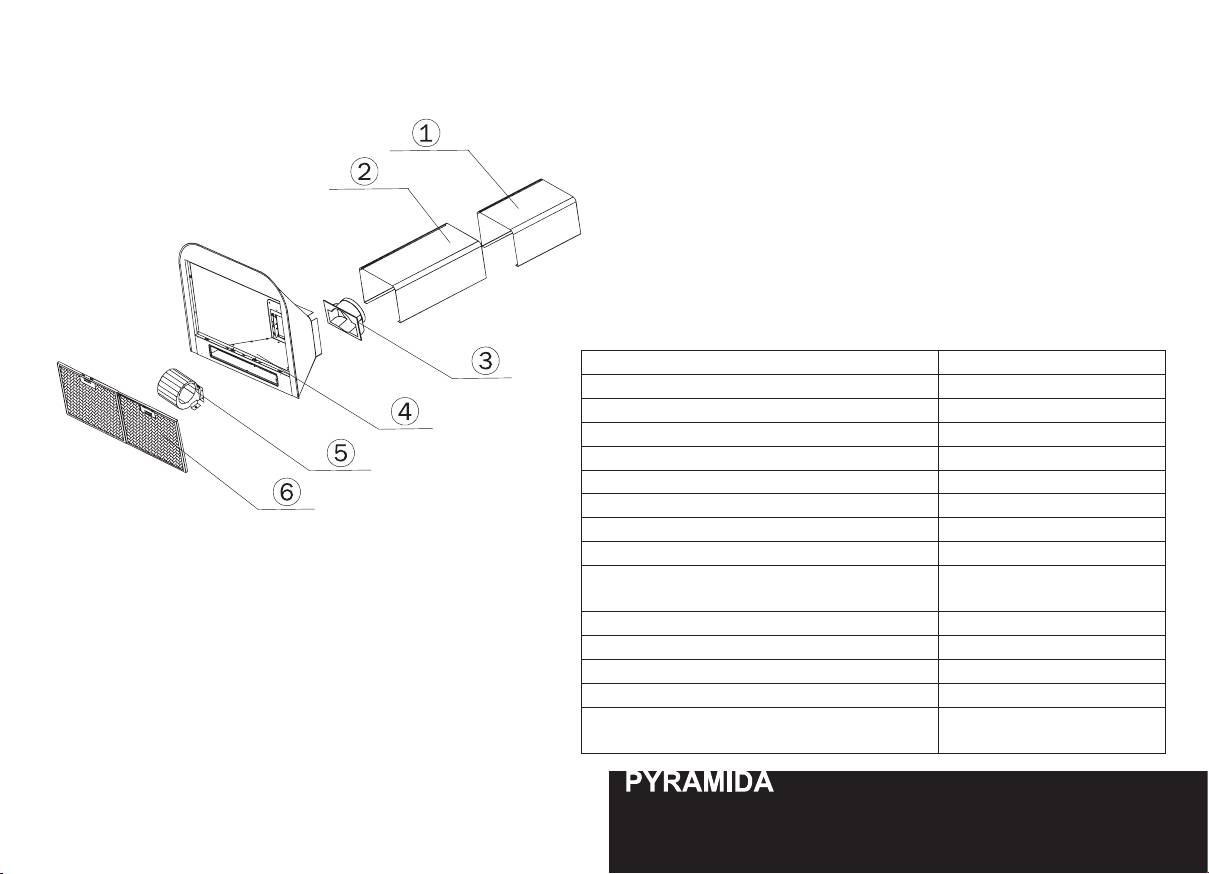

Cooking hood

N 60

MAINTENANCE MANUAL EN

INSTALLATION OF EXTRACTOR FAN TO THE WALL

1. Prepare place on the wall for installation the extractor

Ø8 мм

fan, mark with the help of template that is available with.

According to the marking, prepare 4 openings in the wall

with the diameter of 8 mm. (Img. 1)

Img. 1

2. Put 4 self-drilling screws into the openings. Make sure that

visible part of screws, to which the extractor fan will be

hung, is not less than 10 mm. (Img. 2)

3. Install the fan in such a way that all 4 mounting holes

Img. 2

match 4 screws mounted into the wall. Attach the extractor

fan with its back surface to the wall, driving in first 2 upper

screws, then 2 lower. (Img. 3)

4. For outside air tapping it is easier to install flexible

Img. 3

corrugated air duct. Connect air duct and venting hole of

the fan with the help of adapter. Make sure that corrugated

pipe does not have nonstretched corrugations, as they

increase noise while fan running, cut off redundant part of

the duct. (Img. 4)

Img. 4 Рис. 5

5. Lead the other part of air duct to airshaft or outdoors

through exterior wall. Make sure there are no gaps in

Ø8 мм

junction. (Img. 5)

6. Install upper decorative box and fix it to the wall with the

keeper strip. (Img. 6)

Img. 6

EN

32

PRODUCT MAINTENANCE

While application of the extractor fan, for the purpose of

- Regularly remove all food remains and fat from the lower

maximum capacity and efficiency of its work, it is necessary

panel of the fan and aluminum fat filters. Excessive fat

to periodically take preventive measures and maintain the

contamination may become a result of inflammation!

extractor fan.

- Wipe external surfaces of the fan with wet, well squeezed

While taking preventive and

flannel duster.

maintenance measures, cut the fan off

- For stainless steel surfaces care use special means, that

the power network!

create protective film.

- Do not use abrasive agents and solvents.

While preventive maintenance, regularly carry out the

- Check fan air duct and ventilation channel condition,

following actions:

clean them if necessary!

BACKLIGHTS REPLACEMENT

In the extractor fan lighting lamps of type Е14 are used,

- press the filter lock and take off the fat filter;

their power is not more that 40 W. Replacement of lamps is

- Unscrew an old lamp from the holder and screw the new

made in the following order:

one;

- Make sure that cooking hood is disconnected from power

- press the filter lock and install the fat filter into the cooking

network before lamps replacement; wait until lamps will

hood.

cool down.

E14 40Вт

33

FILTER CLEANING

Extractor fan is equipped with removable protective fat

- remove the filter, having pressed the filter lock beforehand;

filters. Filters guarantee absorption of suspended solids,

- wash the filter with cleaning agent or suds with the help

that’s why they can become dirty depending on frequency of

of sponge or dauber;

fan use.

- thoroughly wash the filter with warm water;

- wait until the filter is absolutely dry;

To guarantee maximum capacity and efficiency of fan work, it

- set the filter into the extractor fan, having pressed the

is necessary to regularly clean fat filters from contaminations.

filter lock beforehand.

In case of cleaning with a dishwashing machine make sure

Cleaning is carried out each 5-6 weeks by hand with suds

that the cleaning agents you use with your machine do not

without strong mechanical effect or in dishwashing machine.

contain deleterious substances that may damage the surface

of aluminum filter details. In the dishwashing machine, place

filters vertically to avoid food remains getting in. Before

Cleaning of fat filters periodicity increase complicates

installation of the filter into the fan after washing in the

air absorption by the fan. This leads

dishwashing machine make sure that the filter is dry. In case

to engine load increment and may

of failure to comply present roles the filter may be damaged!

influence extractor fan life time.

Manual cleaning is carried out in the following order:

EN

34

WARRANTY

TThe product complies with the requirements

Claims won’t be considered without warranty certificate

of technical regulations: EMC equipment DSTU

with the date of sale and stamp of commercial organization.

CISPR 14-1:2004, DSTU CISPR 14-2:2007,

At purchasing of the product press for warranty certificate

IEC 61000-3-2:2004 DSTU DSTU EN 61000-

correct filling in.

3-3:2004; safety of low voltage electrical

equipment DSTU IEC 60335-2-31:2006.

Warranty service is not performed in the following cases:

- by failure to comply with rules stated in the manual;

- by reduction of the air duct diameter to less than

Manufacturer guarantees normal operation of the product

150 mm;

during 24 months since the day of sale through retail

- by presence of obstacles to free air circulation from the

distribution network on condition that transport, storing,

extractor fan to air channel exit;

mounting and exploitation regulations, stated in present

- by incorrect assembly, in case of opening or wiring pod, by

manual, are fulfilled. If your extractor fan does not work in

replacement of the network cable;

a proper way, call service center, maintaining TM Pyramida

- by supply network contradiction to the parameters set by

products, and do not forget to report the following information:

the manufacturer;

- number of warranty policy;

- by mechanical or other damages of the device as a result

- product model;

of rough handling;

- serial number, stated on information label of the fan or in

- by installation of the fan lower that in 60 cm from burners

the warranty certificate;

and heaters.

- failure description.
