Kospel PPE2: GB

PPE2, KDE2, PPVE Conguration

Heating box size 15 kW

Before you supply voltage to the unit for the rst time,

make sure that you set the unit’s power at appropriate

GB

value (always consider the capacity of your home’s

electrical system). Set the switches (located at the

bottom of electronic board) at appropriate position to

congurate the unit.

1-6 Switches setting (the grey square shows the

Heating box size 24 kW

switch position):

• 1, 2 - rated power of unit,

• 3, 4 - size of heating box,

• 5 - ON - switch position that activates the air

control at the heating box,

• 6 - ON - switch no. 6 in „ON” position blocks ac-

cess to the unit’s setting (this realtes to PPE2 and

PPVE only). In this case, the LED display shows

the desired temperature value (which has been

Heating box size 27 kW

adjusted before the unit start-up), the heating icon

and other possible working characteristics.

PPE2 Operation

The heater switches on automatically straight after

reaching the ow rate over 2,5 l/min. The temperature

control system adjusts the power rate according to

the water ow rate, required temperature and the

temperature of water in the mains. The LCD backlight

and icon signalises the heating operation.

If the unit reach the maximum power value which

is too low for a given operating conditions the LCD

display will show „INSUF POWER’’. The LED display backlight also turns on while

pushing or turning the setting knob. The backlight will automatically turn off when

the heating operation is turned off, or if more than 50 seconds have passed since

the last adjustment.

If you block the unit by master appliance (NA entry) the display will show

„NA BLOCK”

If the fault occurs the display will show icon and error message.

Error messages:

PL,DE,GB,RU-045AB/f.453

23

• ER>T INLET – inlet sensor failure,

• ER> T OUTLET – outlet sensor failure,

• ER> T MAX – temperature has exceeded the maximum value,

• ER> AIR 1 – air bubbles in the heating box – equipment detection,

• ER> AIR 2 – air bubbles in the heating box – program detection.

If the display shows ER> T MAX, ER> AIR 1 or ER> AIR 2 the unit will stop heating.

The unit will not heat again until the failure is resolved and the appropriate value of

water ow is reached.

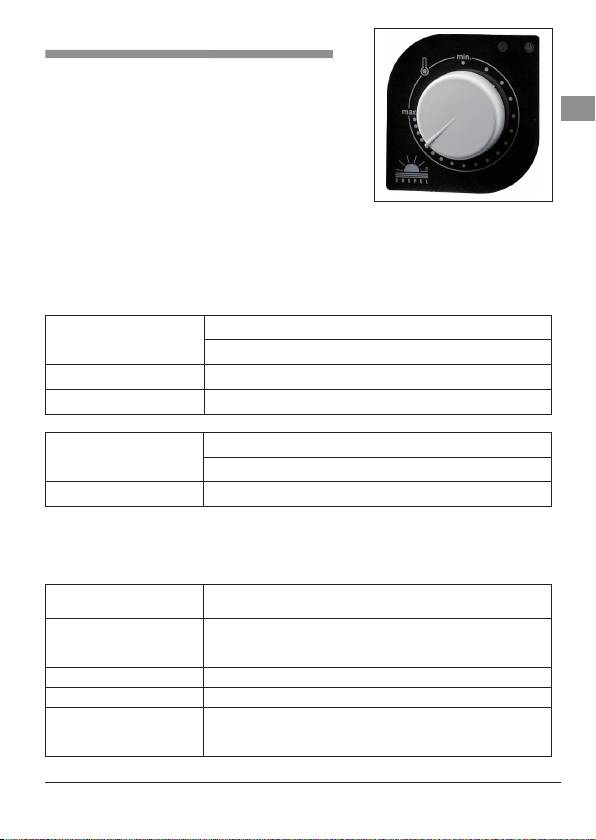

Temperature adjustment

Turn the knob to the right to increase the temperature value, or to the left to decrease it.

Push the knob to read the temperature value that is stored in memory. Push it again

to read the next stored value. You can switch between the following settings „SINK”,

„SHOWER” and „BATH”.

To change the temperature setting in memory:

• select the temperature setting by pushing the control knob,

• push the knob and keep for about 3 seconds until the value starts to ashing,

• turn the knob to adjust the value,

• push the knob to save the value.

Notice: save the new value within 10 seconds, otherwise you will lose it.

Conguration and parameters view

0

• temperature (min-max) [ S>SET TEMP] –

C,

0

• inlet temperature value [S>T INLET] –

C,

0

• outlet temperature value [S>T OUTLET] –

C,

• ow rate [S> FLOW] – l/min,

• percentage of maximum power with which the unit currently heats [S> FULL

POW] -%,

• work time [S> T – h],

• minimum brightness / stand-by-mode [S> BRIGH MIN] [0 - BRIGH MAX],

• maximum brightness / active [S> BRIGH MAX] [BRIGH MIN -25],

• select language version [S> ENGLISH] (POLSKI, FRANCAIS, ENGLISH,

DEUTCH,

РУССКИИ

),

• software version (PW ........, MSP........).

Push and keep knob for about 5 seconds (until the display backlight turns off) to exit

parameters setting mode.

Notice: parameters setting mode will automatically exit after 5 minutes since the last

adjustment.

24

Maximum temperature

Set the maximum temperature value then push and keep knob for about 5 seconds

until the display shows . Take notice that the new maximum temperature value

will be saved in memory for other settings as well.

GB

To cancel the maximum temperature value, push and hold the knob for about 5

seconds (until the display shows ) while you set the temperature above the

minimum value.

If you try to set the temperature above the adjusted maximum value the display will

show for about 1 second.

PPVE Operation

B

A

The heater switches on automatically straight

after reaching the ow rate over 2,5 l/min. The

temperature control system adjusts the power

rate according to the water ow rate, required

temperature and the water temperature in the

mains.

The LCD red colour backlight and icon sig-

nalises the heating operation. If the unit reach

the maximum power value which is too low for a

given

operating conditions the LCD display will

show . The LED display backlight also turns

on while pushing or turning the setting knob. The backlight will automatically turn off

when the heating operation is turned off, or if more than 30 seconds have passed

since the last adjustment. If you block the unit (NA entry) by master appliance the

display will show .

If the fault occurs the display will show error message:

ERR

•

Tin

- inlet sensor failure,

ERR

•

- outlet sensor failure,

Tout

ERR

•

- temperature has exceeded the maximum value,

Tmax

ERR

•

- air bubbles in the heating box – equipment detection,

AIR1

ERR

•

- air bubbles in the heating box – program detection.

AIR2

ERR

ERR

ERR

If the display shows

Tmax

,

AIR1

,

AIR2

the unit will stop heating.

The unit will not heat again until the failure is resolved and the appropriate rate of

water ow is reached.

If you try to set the temperature above the adjusted maximum value the display

will show .

PL,DE,GB,RU-045AB/f.453

25
