Parts Manual

(56042630)

Clarke

American Sanders OBS-18/18 DC Operator's Manual - Page 51

BASE ASSEMBLY

Page 52 - 56042630 Clarke

American Sanders OBS-18/18 DC Operator's Manual

BASE ASSEMBLY

Item Ref. No. Qty Description

1 962411 4 Scr 1/4 -20x 3/4 Sf St Cap

2 56109699 1 Cam Assy With Grip NOTE 1

3 56381766 1 Link-Arm Right NOTE 2

4 56381767 1 Link-Arm Left NOTE 2

5 56381768 1 Shaft-Axle NOTE 2

6 56382759 1 Pad, Red

7 25907A 1 Main Frame Obs-18 Silver Assy (Standard Models only)

25908A 1 Mainframe Obs-18dc (Dust Control Models only)

8 31224B 1 Bumper Frame Black

9 39730A 1 Grip Face

10 39857A 2 Wheel 5 X 1.50 X .500 NOTE 2

11 54930A 1 Handle-Lift

12 62814A 1 Eccentric Obs-18

13 66981A 1 Retainer Bearing Obs-18

14 66982A 1 Retainer Eccentric Obs-18

15 70499A 1 Label Cas

16 85718A 1 Scr 1/2-13 X 3/4 Hc St Grd 2

17 86112A 4 Screw-3/8-16 X 3/4-Socket Head

18 920248 1 Nut, 3/8-16. Esna, Jam

19 925589 1 Pin, Roll

20 980349 1 Washer Wear Cam

21 980614 4 Washer, 1/4” Starlock, External

22 980645 1 Washer, 3/8” S.A.E. Flat

23 980648 2 Washer 17/32 X 1 1/16 Plain NOTE 2

24 10666A 1 Spring Mount Kit OBS-18 (includes four isolators and four of item 21)

25 29931A 1 Base-Orbital

26 50736A 1 Bearing

27 80292A 2 Screw .25-20 X 1.00 Bhhr Sems NOTE 2

28 80295A 4 Washer Bowed

29 81220A 4 Nut, Serrated Flange

30 87700A 3 Screw 1/4-20 X 1/2 B.H.

31 18445A 1 Skirt Asmdust OBS-18DC (Dust Control Models only) TSBCAS2010-04

[ ] = Not Shown

NOTE 1: 56109699 replaces the following three parts: 925592, 461404, 441301.

NOTE 2: Lower Link Arm 61831A is no longer used in production. Items (3, 4, 5, 10, 23, 27) have replaced the old conguration as of March 2011.

Clarke

American Sanders OBS-18/18 DC Operator's Manual 56042630 - Page 53

MOTOR ASSEMBLY - STANDARD

Item Ref. No. Qty Description

1 56382831 1 Motor1hp115v/60hz Obs-18 (Baldor 115V)

[ ] 40160A 1 Starter Switch

[ ] 41311A 1 Capacitorrun25mfd 370v (115V)

[ ] 41312A 1 Capacitor Start 400-480mfd125v (115V)

1 NA 1 Motor1hp115v/60hz Obs-18 (Imperial 115V)

[ ] 56380670 1 Switch-Starter 40A 115V for all 115V

[ ] 41311A 1 Capacitorrun25mfd 370v (115V)

[ ] 41312A 1 Capacitor Start 400-480mfd125v (115V)

1 40754A 1 Motor 1hp 115/50 Obs-18 (model 07122A)

[ ] 47378A 1 Switch Motor Starting Classi

[ ] 41311A 1 Capacitorrun25mfd 370v (115V)

[ ] 41312A 1 Capacitor Start 400-480mfd125v (115V)

1 NA 1 Motor1hp230v/50hz Obs-18 (OBS / 230V)

[ ] 47378A 1 Switch Motor Starting Classi

[ ] 41313A 1 Capacitorrun12mfd 240V (230V)

[ ] 41314A 1 Capacitorstart137mfd 240V (230V)

2 56454538 1 Circuit Breaker, 15 Amp (115V) NOTE 1

41419A 1 Circuit Breaker15a (115V) NOTE 2

41418C 1 Breakercircuit10aqd.25 Srt (230V)

[ ] 47709A 1 Terminal1/4 Fifqd 12-10 Ga.

3 56459367 1 Boot, Reset Button NOTE 1

4 77195A 1 Label-Ul Fire & Sand.

5 77234A 1 Plate-Warning

6 170667 1 Wire Connector Twist On 74b

7 962727 2 Screw, 8-32 X 1/2

8 962822 2 Screw 1/4-20 X 5/8 Bt St Soc

9 980603 1 Washer, #10 Lock External Tooth

10 22906A 1 Enclosure, Motor Start

11 51523A 1 Strain Relief Bushing 7/8x.20 Panel .37-.43 Cord

12 62667A 1 Cover, Enclosure

13 85833A 1 10-32x3/8 Hw Type 23

[ ] = Not Shown

NOTE 1: Used on machines after October 2011.

NOTE 2: Used on machines before November 2011.

Page 54 - 56042630 Clarke

American Sanders OBS-18/18 DC Operator's Manual

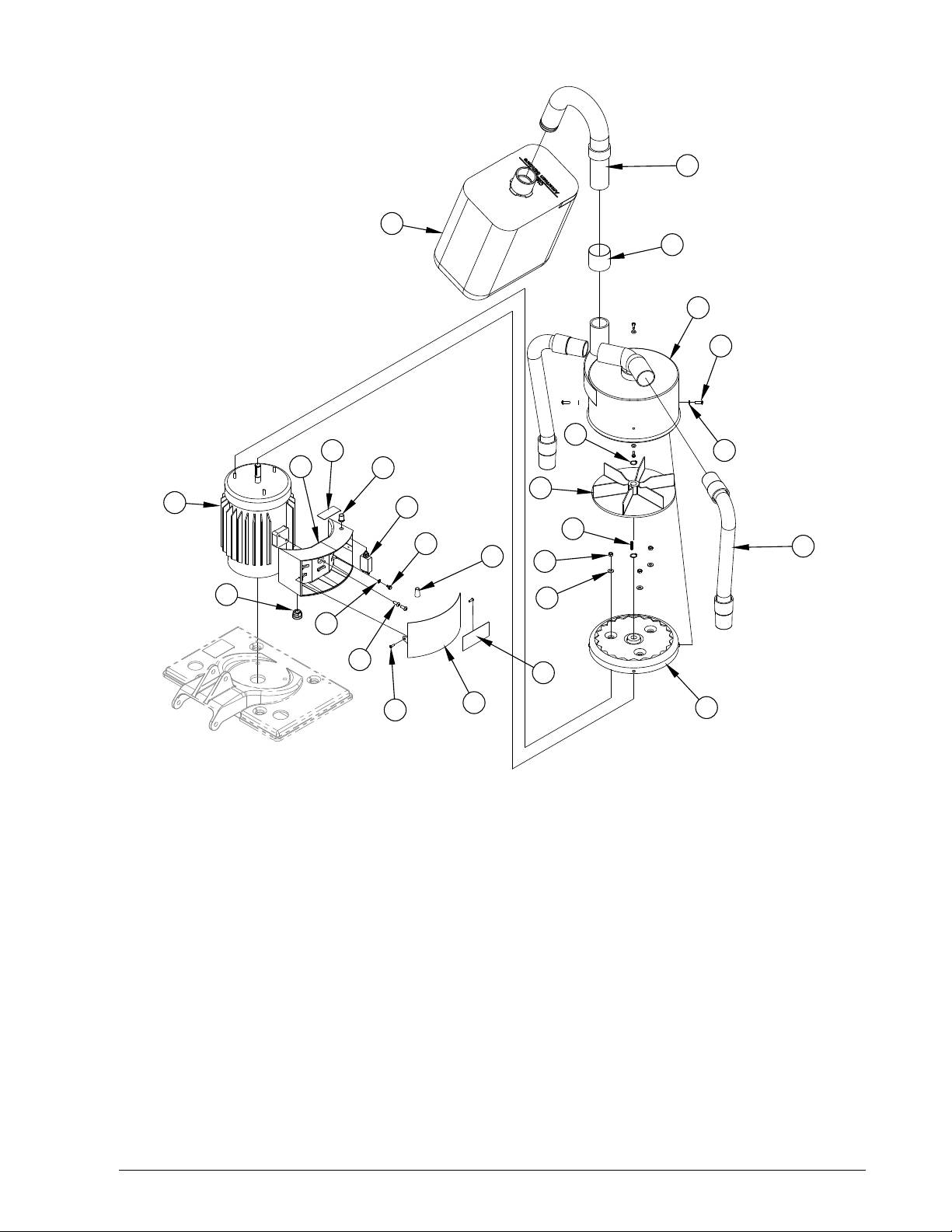

MOTOR ASSEMBLY - DUST CONTROL

Item Ref. No. Qty Description

1 56382885 1 Motor1HP 115V/60 HZ OBS-18DC (Baldor115V)

8 54765A 1 Impeller

[ ] 40160A 1 Starter Switch

9 77195A 1 Label-Ul Fire & Sand.

[ ] 41311A 1 Capacitorrun25mfd 370v (115V)

10 77234A 1 Plate-Warning

[ ] 41312A 1 Capacitor Start 400-480mfd125v (115V)

11 81217A 3 Nut, 1/4-20 Hex Esna

1 NA 1 Motor1HP 115V/60 HZ OBS-18DC (Imperial 115V)

12 170667 1 Wire Connector Twist On 74b

[ ] 56380670 1 Switch-Starter 40A 115V for all 115V

13 797301 2 Ring Retaining Ext 5/8”

[ ] 41311A 1 Capacitorrun25mfd 370v (115V)

14 915044 1 Key, 3/16 Sq.

[ ] 41312A 1 Capacitor Start 400-480mfd125v (115V)

15 962727 2 Screw, 8-32 X 1/2

1 44673A 1 Motor-1 HP 230V/60Hz

16 962822 2 Screw 1/4-20 X 5/8 Bt St Soc

[ ] 47378A 1 Switch Motor Starting Classi

17 980603 1 Washer, #10 Lock External Tooth

[ ] 41313A 1 Capacitorrun12mfd 240V (230V)

18 980646 3 Washer 1/4 Sae Flat Pltd

[ ] 41314A 1 Capacitorstart137mfd 240V (230V)

19 980982 4 Washer 10 Sae Flat Pltd

1 40753A 1 Motor-1HP 115V/50Hz (model 07121A)

20 56380336 1 Seal-Dust Pipe

[ ] 47378A 1 Switch Motor Starting Classi

21 22906A 1 Enclosure, Motor Start

[ ] 41313A 1 Capacitorrun12mfd 240V (230V)

22 53741A 1 Bag, Dust Obs18

[ ] 41314A 1 Capacitorstart137mfd 240V (230V)

23 61833A 1 Tube, Exhaust Weldment

2 56454538 1 Circuit Breaker, 15 Amp (115V) NOTE 1

24 62667A 1 Cover, Enclosure

41419A 1 Circuit Breaker15a (115V) NOTE 2

25 85383A 4 Screw, 10-32 X 3/4 P.H.

41418C 1 Breakercircuit10aqd.25 Srt (230V)

26 85833A 1 10-32x3/8 Hw Type 23

[ ] 47709A 1 Terminal1/4 Fifqd 12-10 Ga.

[ ] = Not Shown

3 56459367 1 Boot, Reset Button NOTE 1

4 30407B 2 Hose

NOTE 1: Used on machines after October 2011.

5 10478A 1 Asm. Blower Housing Cover

NOTE 2: Used on machines before November 2011.

6 35242A 1 Housingblower Obs-18dc

7 51523A 1 Bushing Strain Relief

Clarke

American Sanders OBS-18/18 DC Operator's Manual 56042630 - Page 55

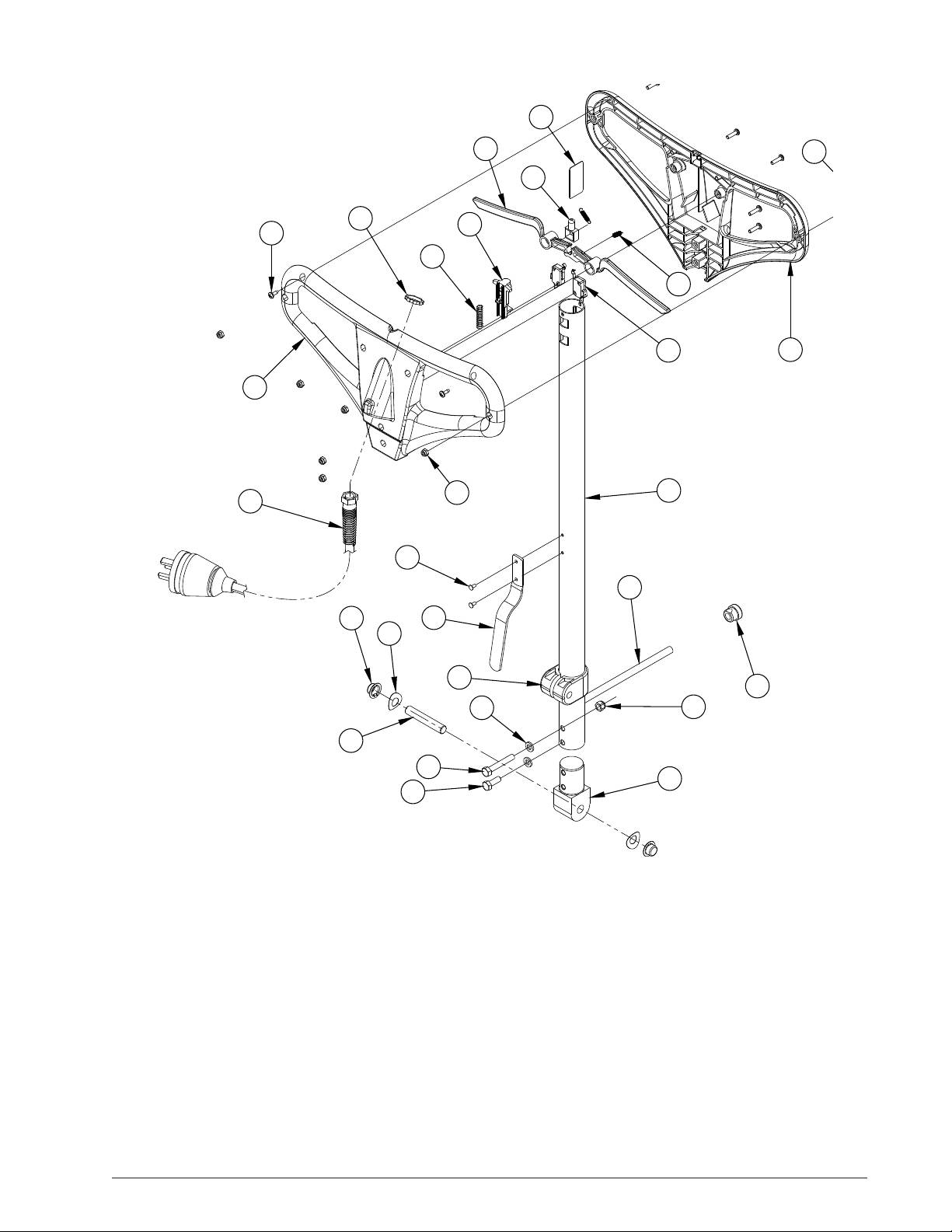

HANDLE ASSEMBLY - 115V

Item Ref. No. Qty Description

1 442001 1 Clamp-Handle Tube

15 80291A 1 Washer, Flat #10 (.203x.734x.063)

2 627561 1 Strain-Relief

16 85817A 1 Screw 5/16-18 X 2.00 Hex Hd Gr5

3 40522A 1 Cord Interconnect

17 71126A 1 Label, Handle

4 85812A 1 Screw5/16-18 X 7/8 Hex Hd Gr5

18 71347A 1 Label Cca Warning

5 509240 1 Tongue, Handle Tube

19 70175A 1 Tag-Warning Eng-Spn

6 920110 1 Nut, 5/16-18 Hex Lock

20 930005 2 Rivet_5/32 X .32

7 980652 2 Washer, 5/16 Lock

21 64325A 1 Hook-Cord

8 10687A 1 Interlock Asm

22 920346 2 Palnut #Pw500015 Type W

9 21074A 1 Handle, Front - Cfp

23 80295A 2 Washer Bowed

10 21075A 1 Handle, Rear - Cfp

24 67474A 1 Shaft-Handle Pivot

11 40931A 1 Cord Adapter NOTE 1

25 40540A 1 Cordset 12-3x40ft 5-15p NOTE 1

12 61825A 1 Tube-Handle

26 70175A-FR 1 Tag-Warning Eng-Frn

13 80284A 6 Screw 10-32 UNF X .75 H.R.C.S.

14 80290A 2 Screw 10-32 X .38 HRCS

NOTE 1: Cord 40919A has been replaced by 40540A and 40931A.

Page 56 - Clarke

American Sanders OBS-18/18 DC Operator's Manual

HANDLE ASSEMBLY - 230V

Item Ref. No. Qty Description

1 170686 1 Nutlk For 1/2 Conduit

16 85817A 1 Screw 5/16-18 X 2.00 Hex Hd Gr5

2 30285A 1 Handle Front C2k W/Blank

17 85812A 1 Screw5/16-18 X 7/8 Hex Hd Gr5

3 50798A 2 Lever Switch C2k

18 509240 1 Tongue, Handle Tube

4 50799A 1 Interlock Main C2k

19 920110 1 Nut, 5/16-18 Hex Lock

5 50806A 1 Button Interlock C2k

20 627561 1 Strain-Relief

6 50820A 2 Spring Extension C2k

21 10250A 1 Cord Interconnect Asm

7 50821A 1 Spring Compression C2k

22 930005 2 Rivet_5/32 X .32

8 920722 6 Nut 10-32 Esna

23 64325A 1 Hook-Cord

9 962957 2 Screw, 10-16 X 1/2 Self Tap

24 920346 2 Palnut #Pw500015 Type W

10 40109A 2 Switch Minature-Spno C2k

25 80295A 2 Washer Bowed

11 50780A 1 Handle, Rear

26 67474A 1 Shaft-Handle Pivot

12 69153B 1 Tube, Handle

27 50930A 1 Cord Retainer C2K

13 85383A 6 Screw, 10-32 X 3/4 P.H.

28 40524A 1 Cord Power (model 07083B)

14 442001 1 Clamp-Handle Tube

40864A 1 Cord Power (model 07115A)

15 980652 2 Washer, 5/16 Lock

Clarke

American Sanders OBS-18/18 DC Operator's Manual - Page 57

Page 58 - Clarke

American Sanders OBS-18/18 DC Operator's Manual

SYM. CHANGE

A DIAGRAM RELEASE

B SUPERCEDED LR

C SUPERCEDED LR

D 3: ADD GROUND JSP 27950

STRICTLY CONFIDENTIAL AND REMAIN THE SOLE AND EXCLUSIVE

OR UNAUTHORIZED USE ARE PROHIBITED UNLESS APPROVED

PROPERTY OF ALTO U.S., INC. ANY CHANGES, PUBLICATION,

NOTICE: THIS DRAWING AND ANY COPY THERE OF ARE

IN WRITING BY THE CORPORATION.

BY E.C.N. DATE

25076A3CW

25479A2 4/2/97

25479 1/21/97

4/17/96

7/10/02

UNLESS OTHERWISE SPECIFIED:

ALL DIMENSIONS ARE IN INCHES

REMOVE ALL BURRS AND

ANGLES ±0° 30' (.5 DEGREE)

BREAK SHARP EDGES

DO NOT SCALE DRAWING

3 PLACE DECIMALS ±.010

2 PLACE DECIMALS ±.03

1 PLACE DECIMALS ±.5

CRITICAL NOTE

OR DIMENSION

MATERIAL

MODEL

SCALE

N.T.S.

OBS-18 115V/60HZ

DIAGRAM, WIRING

SHEET

DATE

DRN.BY

4/11/96

MGK

DESCRIPTION

FINISH

DATE

SIM. TO

APV'D.BY

2100 Highway 265

Springdale, AR (USA)

72764-8711

07076A-W

DRAWING NO.

4/2/97

07051A

NO.

DISK

REV.

1: DEL P/N's; 2: ADD WIRE COLORS

2100 Highway 265

Springdale, AR (USA)

72764-8711

OBS-18 & 18DC

120v 60 Hz & 230v 50Hz

Electrical Schematic 10/98

OBS-18 & 18DC

230v 50 Hz “CE”

Electrical Schematic 10/98

Clarke

American Sanders OBS-18/18 DC Operator's Manual - Page 59

CLARKE AMERICAN SANDERS U.S. AND CANADA LIMITED WARRANTY

Amano Pioneer Eclipse, Inc. warrants to the original end user, each new machine, new accessories and genuine replacement parts against defects in material and

workmanship under normal use and service. Our obligation under this warranty is limited to repair or replacement of the defective item at our factory or by an Authorized

Service Center. Warranty coverage shall begin on the date of purchase by the original end user (as evidenced by your invoice from the factory or Authorized Dealer) or one

(1) year from the date the machine was shipped from the factory, whichever is earlier. The warranty registration card must be completed and returned within 30 days of

purchase. The warranty coverage period is specified below.

GROUP

1,2

Parts

Labor

Big Machines (belt and drum)

1 year

Rotary Sanders

5 years

Dust Control

Vacs

2 years

Edger, Orbital, 3DS

1 year

Power Booster

2 years

Accessories/Replacement Parts

90 Days

EXCEPTIONS

NOTES:

1-Parts repaired or replaced are guaranteed for the remainder of the original machine warranty period.

2-Coverage only applicable to products sold and used in the United States and Canada.

3-Applies to replacement parts only after machine warranty coverage has expired.

4-Backplates on are warranted for the life of the machine

This warranty shall not apply to repairs resulting from accidents or misuse, damage in transit, overloading the capacity of the machine, failure due to lack of proper

maintenance or care as described in the operating and maintenance instructions. Minor adjustments, such as tightening of screws or bolts not connected with the

replacement of parts, are not covered. Replacement of expendable wear items such as scrub brushes, pad holders, carbon motor brushes, bulbs, bags, filters and various

rubber/plastic parts are also not covered. Repairs or alterations by an organization other than the factory or an Authorized Service Center are not covered and will void any

Amano Pioneer Eclipse, Inc. warranty as to the parts or systems repaired or altered by a non-authorized organization.

THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE DESCRIPTION OF THE LIMITED WARRANTIES STATED WITHIN. NO OTHER WARRANTY, EXPRESSED

OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, IS MADE EXCEPT

AS EXPRESSLY STATED HEREIN. ANY STATUTORY IMPLIED WARRANTIES, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE, THAT ARE IMPOSED BY LAW DESPITE THE EXPRESS LIMITATION OR WARRANTIES ABOVE, ARE EXPRESSLY LIMITED TO THE DURATION OF THE

WRITTEN WARRANTY. BUYER UNDERSTANDS, ACKNOWLEDGES AND AGREES THAT THE REMEDIES PROVIDED UNDER THIS LIMITED WARRANTY ARE THE

SOLE AND EXCLUSIVE REMEDIES AVAILABLE TO THE BUYER. AMANO PIONEER ECLIPSE, INC. WILL NOT BE LIABLE FOR ANY OTHER OR ADDITIONAL DAMAGES,

INCLUDING BUT NOT LIMITED TO INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE FURNISHING,

PERFORMANCE, USE OF OR INABILITY TO USE THE MACHINE. ANY EXTENSIONS OF OR MODIFICATIONS MADE TO THIS WARRANTY BY A

DEALER/DISTRIBUTOR OF Amano Pioneer Eclipse, INC. ARE THE SOLE RESPONSIBILITY OF THE DEALER/DISTRIBUTOR.

All transportation or shipping charges resulting from the return of machines, parts, or accessories shall be the responsibility of the end-user. When returning, please provide

an explanation of the problem and include the serial number of the machine as well as the name of the selling organization. The Technical Service department of the authorized

Dealer Service Center or the factory will investigate and then contact you.

Transportation of hazardous waste or contaminated equipment is subject to various laws and regulations. In returning machines, parts, or accessories under this limited

warranty, the end user must certify in writing that the machines, parts or accessories being returned have not been used for handling, clean up, or disposal of hazardous waste

or hazardous materials including but not limited to such things as asbestos, anthrax etc. or if the machines, parts or accessories being returned have been used for handling,

clean up, or disposal of hazardous waste or hazardous materials, then the end user must have the machines, parts or accessories decontaminated by licensed and qualified

decontamination professionals and provide written certification of this decontamination signed by the decontamination professionals. These machines, parts or accessories are

to be returned only to the local Amano Pioneer Eclipse, Inc. Authorized Service Center for

Warranty service along with decontamination certification.

Amano Pioneer Eclipse, INC. Reserves the right to change its warranty policy without notice.

Amano Pioneer Eclipse

1 Eclipse Rd

Sparta, NC 28675

336-372-8080

800-334-2246

www.pioneereclipse.com

www.americansanders.com

2014 Amano Pioneer Eclipse 3_14
