Eneo PTB-1025F13: DE

Contents

Contents ................................................................................................................. 17

Notes on safety ..................................................................................................... 18

Scope of delivery .................................................................................................. 18

DE

Product description and connections ............................................................... 19

EN

Installation .............................................................................................................. 21

FR

Easy Bracket and Standard Bracket ....................................................................21

PL

Network setup ........................................................................................................ 23

RU

Accessing the camera .......................................................................................23

Assigning an IP address ......................................................................................25

Administrator password .......................................................................................27

Camera setup ........................................................................................................ 28

Accessing the setup menu...................................................................................28

Further information .............................................................................................. 30

17

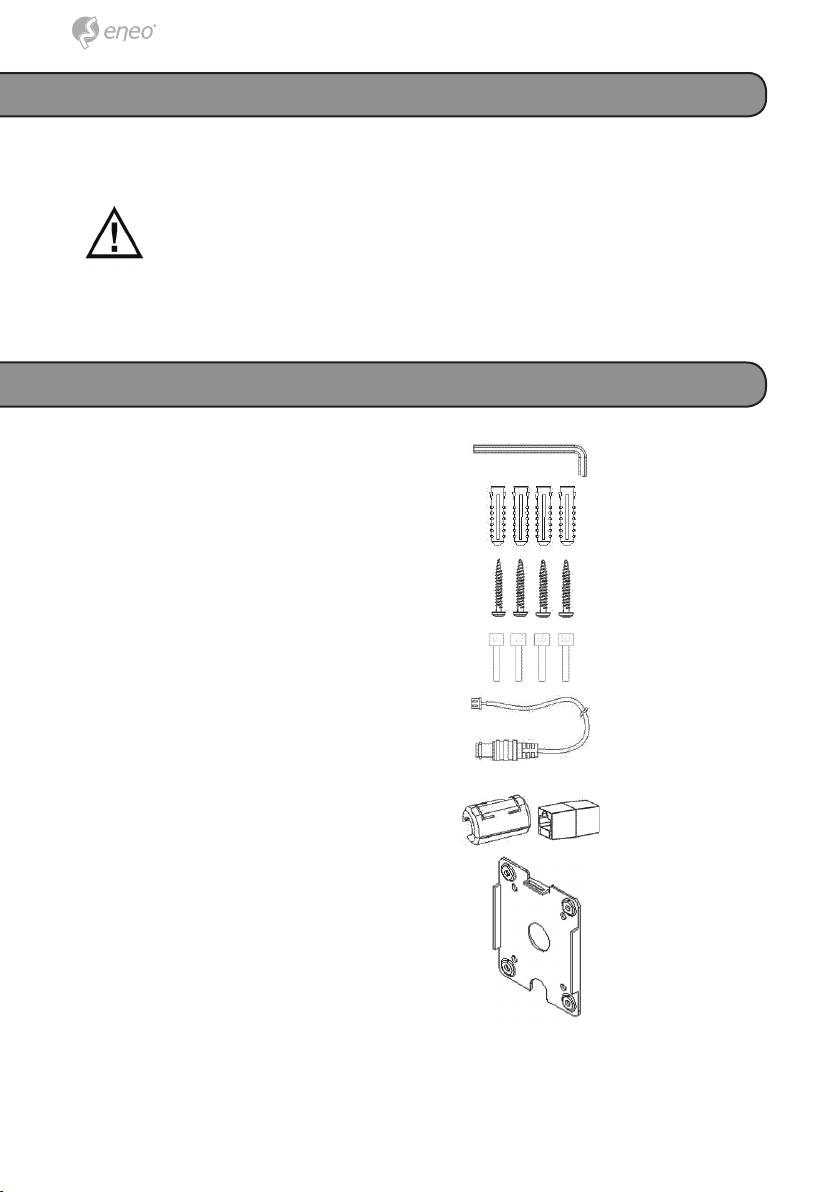

Notes on safety

Please also pay attention to the enclosed safety instructions, and carefully

read through this instruction guide before initial operation.

Important points of advice are marked with a caution symbol.

Scope of delivery

• 1x Thermal imaging network

camera

• 1x Installation and Operating

Instructions

• 1x Mounting template

• 1x Sunshield panel with fixing

screw for sunshield panel

• 1x Easy Bracket

• 1x 3mm Hex L-wrench

• 4x Anchors

• 4x Wall fixing screws

• 4x Wrench Bolts

• 1x Video Sub-out cable

• 1x USB cable

• 1x Coupler for RJ45 Cable

• 1x EMI Ferrite Core

18

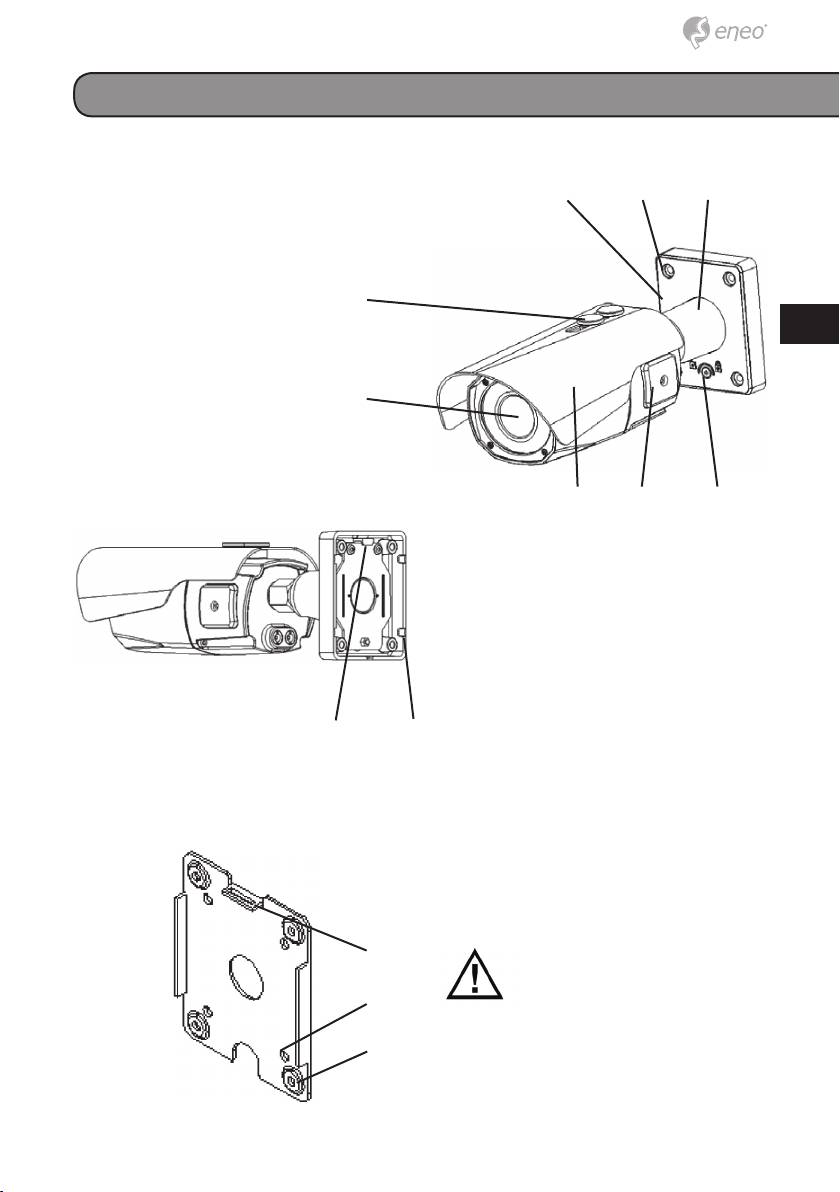

Product description and connections

ⓐ Fixing screw for sunshield (2x)

ⓑ Lens

ⓒ ⓓ ⓔ

ⓒ Bracket foot

ⓓ Foot mount hole (4x)

ⓔ Arm assembly

ⓕ Sunshield panel

DE

ⓖ Bracket lock

ⓐ

ⓗ OSD cover

EN

FR

ⓑ

PL

RU

ⓕ ⓗ ⓖ

ⓘ Hook for Easy Bracket

ⓙ Cable exits (5x)

ⓘ ⓙ

ⓚ Peg for Easy Bracket

ⓛ Wall mount hole (4x)

ⓜ Bracket foot fixing hole (4x)

ⓚ

CAUTION - Easy Bracket

cannot be installed on the

ⓛ

ceiling. When it is installed

on the wall, ⓚ Peg for Easy bracket

ⓜ

Hook must be placed upwardly.

19

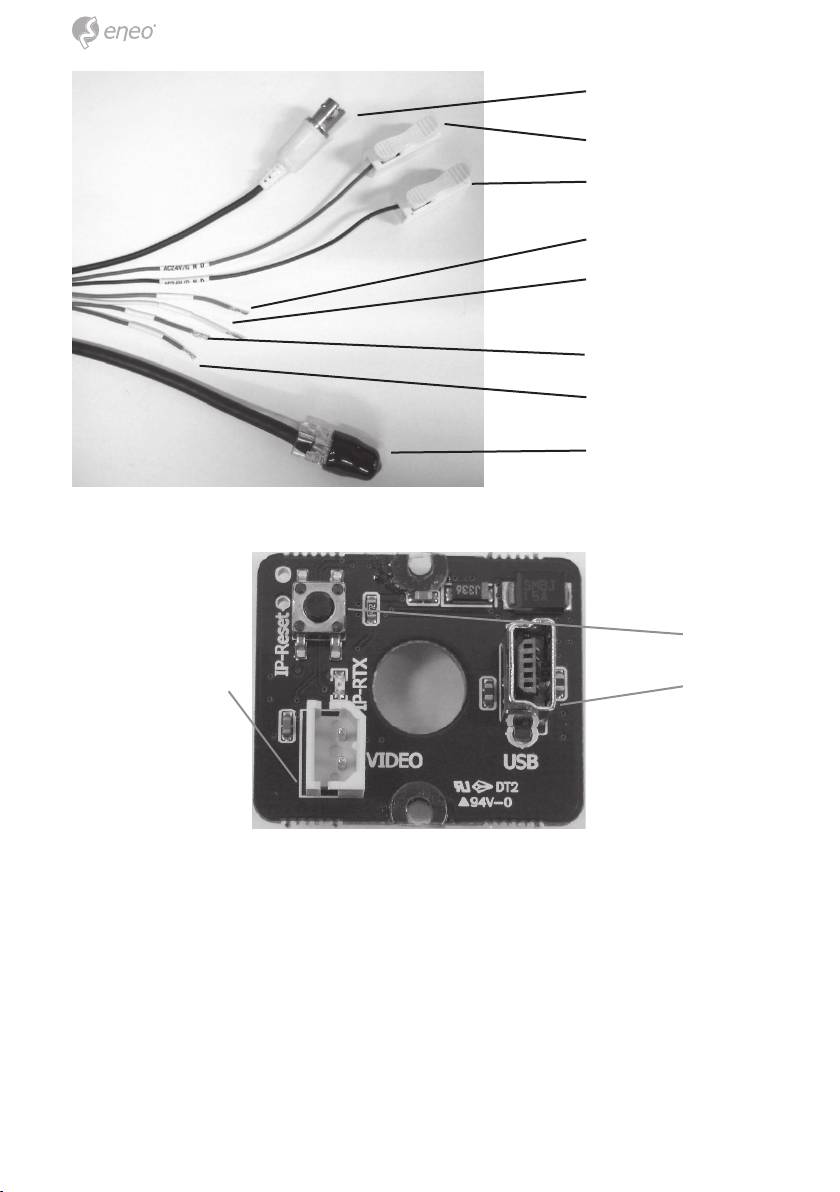

BNC

AC24V/DC12V

AC24V/GND

TX+ (gray)

TX- (white)

RX+ (yellow)

RX- (blue)

LAN CABLE with

RJ-45 and PRO-

TECTION CAP

IP Reset

VIDEO SUB-OUT

USB

connector

connector

Technical specifications

Protection rating (IP / IK):

IP67

Temperature range (operation):

-35°C ~ +50°C

Power consumption:

12W max.

Dimensions:

100mm x 107.8mm x 277mm

Weight:

1.5kg

20
