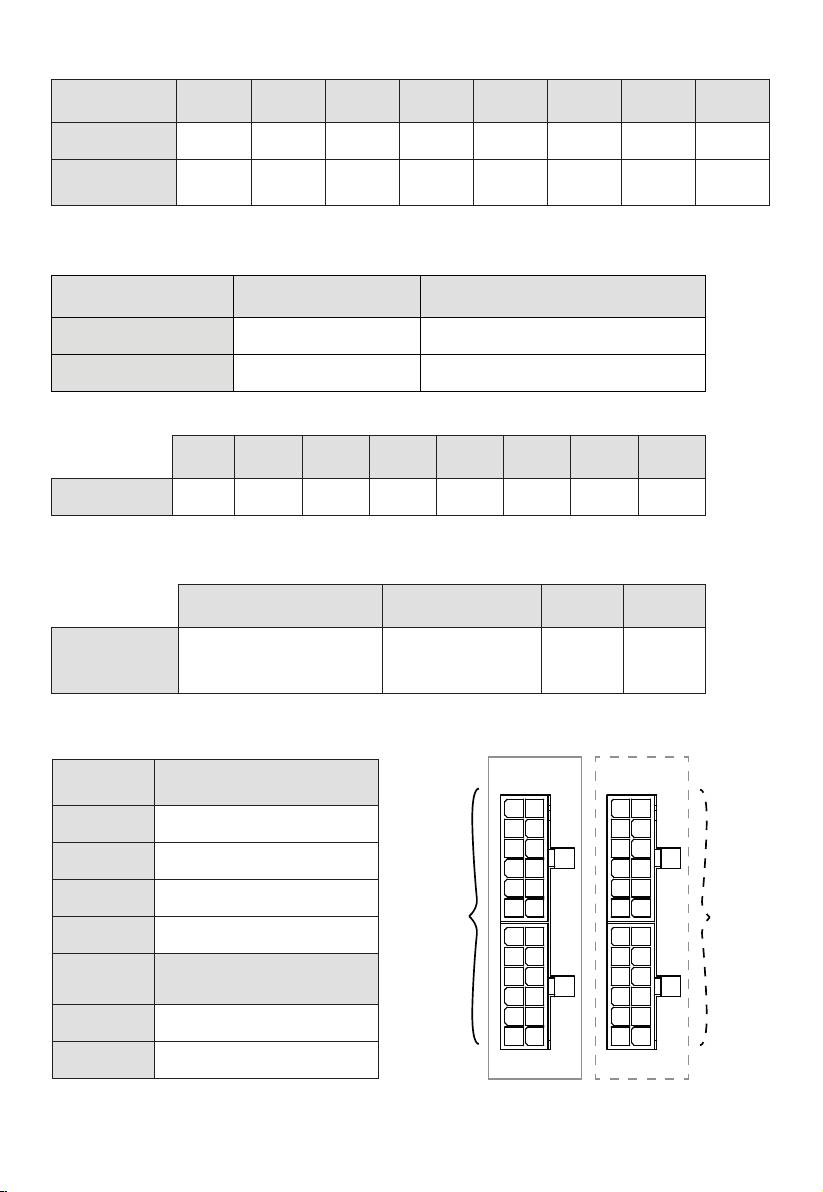

2. VOLTAGE REGULATION
DC Output 3�3V 5V 12V1 12V2 12V3 12V4 -12V 5VSB
Tolerance +/- 3% +/- 3% +/- 3% +/- 3% +/- 3% +/- 3% +/- 10% +/- 3%
Ripple/Noise
40mV 40mV 60mV 60mV 60mV 60mV 100mV 40mV
(max.)
3. OPERATING CONDITIONS
Environment Temperature Rel. Humidity
Operation 0 ~ 40°C up to 85% (non-condensing)
Storage -20 ~ 80°C up to 95% (non-condensing)
4. MINIMAL LOAD
3�3V 5V 12V1 12V2 12V3 12V4 -12V 5VSB
1200W - 550W 0A 0�5A 0�1A 0A 0A 0A 0A 0A
5. RAIL SPLITTINGS
12V1 12V2 12V3 12V4
CPU1 (P4 / P8)
1200W - 550W SATA, HDD, FDD, 24pin
PCIe 1/2 PCIe 3/4
CPU2 (P4 / P8)
6. PCI-E WIRING DIAGRAM (OPTIMAL)
Single
PCIe 4 PCIe 2
PCI-E slot
GPU
1 1
2 1, 3
3 1, 2, 3
12V4 12V3
4 1, 2, 3, 4
Strong
PCI-E slot
Dual GPU
1 1 + 3
2 1 + 3, 2 + 4
PCIe 1PCIe 3
40 41

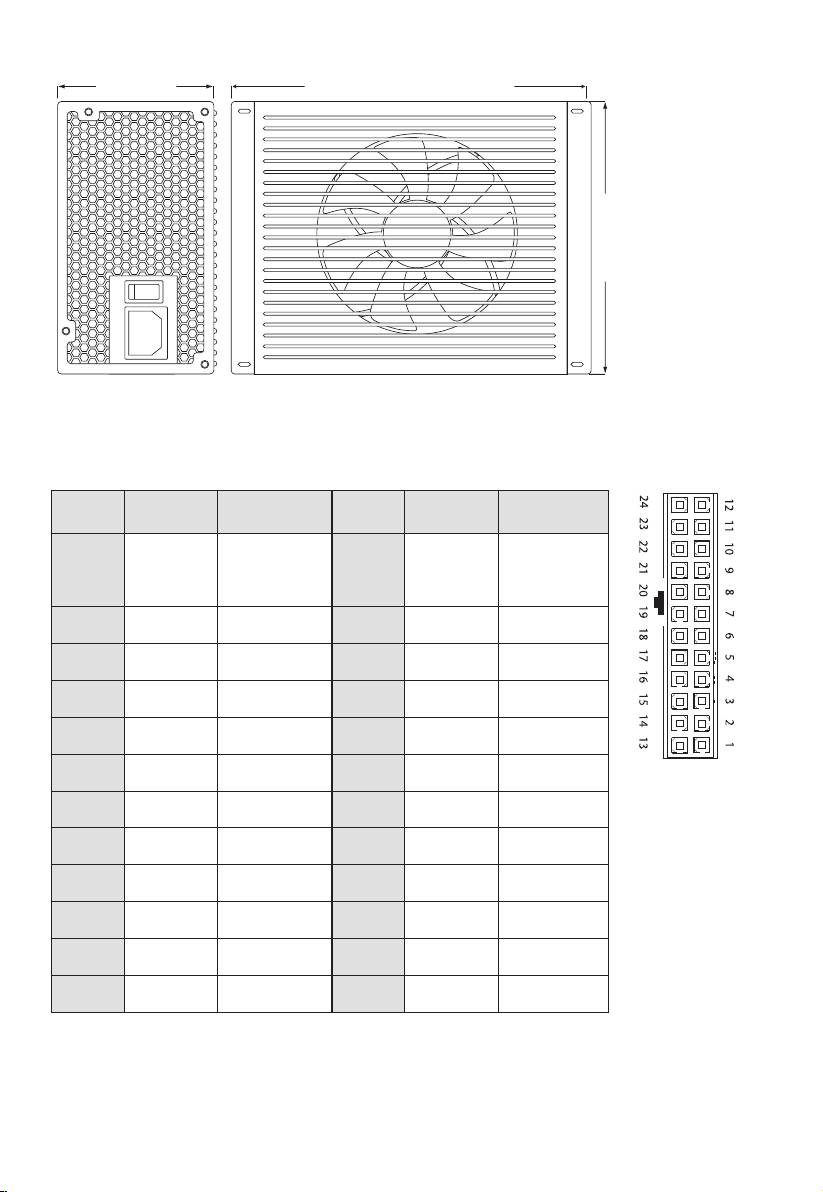

7. DIMENSIONS
8. DISTRIBUTION AND PIN ASSIGNMENT
24 PIN ATX power connector
Pin Color Signal Pin Color Signal
+3.3VDC
Orange
1 Orange +3.3VDC 13
+3.3Vdef.
Brown
sense
2 Orange +3.3VDC 14 Blue -12VDC
3 Black COM 15 Black COM
4 Red +5VDC 16 Green PS_ON/OFF
5 Black COM 17 Black COM
6 Red +5VDC 18 Black COM
7 Black COM 19 Black COM
8 Grey PWR_OK 20
9 Violet +5VSB 21 Red +5VDC
10 Yellow +12VDC 22 Red +5VDC
11 Yellow +12VDC 23 Red +5VDC
12 Orange +3.3VDC 24 Black COM
42 43
193mm / 180mm*
150mm
86mm
*1200W, 1000W, 850W: 193mm / 750W, 650W, 550W: 180mm
42 43
E PS +1 2 V PO W ER CONNEC T O R
Pin Color Signal Pin Color Signal
1
5
Yellow +12VDC
1
Black
COM
5
2
6
Yellow +12VDC
2
Black
COM
6
Yellow
+12VDC
3
Black
COM
7
7
Yellow
+12VDC
4
Black
COM
8
3
4
8
Yellow
Yellow
+12VDC
+12VDC
Yellow
+12VDC
Pin Color Signal Pin Color Signal
1
Black COM
4
2
Black COM
5
3
Black COM
6
Black COM
7
Black COM
8
PCI E XPRESS V G A CONNEC T O R
2
3
1
6
5
4
2
3
1
5
6
4
87
+12V power connector
Pin Color Signal Pin Color Signal
1 Black COM 5 Yellow +12VDC
2 Black COM 6 Yellow +12VDC
3 Black COM 7 Yellow +12VDC
4 Black COM 8 Yellow +12VDC
SATA power connector
Pin Color Signal Pin Color Signal
1 Orange 3�3V 4 Black COM
2 Black COM 5 Yellow +12VDC
3 Red +5VDC
Peripheral Devices & FDD power connector
Pin Color Signal Pin Color Signal
1 Red +5VDC 3 Black COM
2 Black COM 4 Yellow +12VDC
E PS +1 2 V PO W ER CONNEC T O R
Pin Color Signal Pin Color Signal
1
5
Yellow +12VDC
1
Black
COM
5
2
6
Yellow +12VDC
2
Black
COM
6
Yellow
+12VDC
3
Black
COM
7
7
Yellow
+12VDC
4
Black
COM
8
3
4
8
PCI E XPRESS V G A CONNEC T O R
Pin Color Signal Pin Color Signal
1
4
Yellow
+12VDC
1
Black COM
4
2
5
Yellow
+12VDC
2
Black COM
5
3
6
Yellow
+12VDC
3
Black COM
6
Black COM
7
Black COM
8
PCI express VGA connector
1
4
Pin Color Signal Pin Color Signal
2
5
3
6
1 Yellow +12VDC 4 Black COM
87
2 Yellow +12VDC 5 Black COM
3 Yellow +12VDC 6 Black COM
7 Black COM 8 Black COM

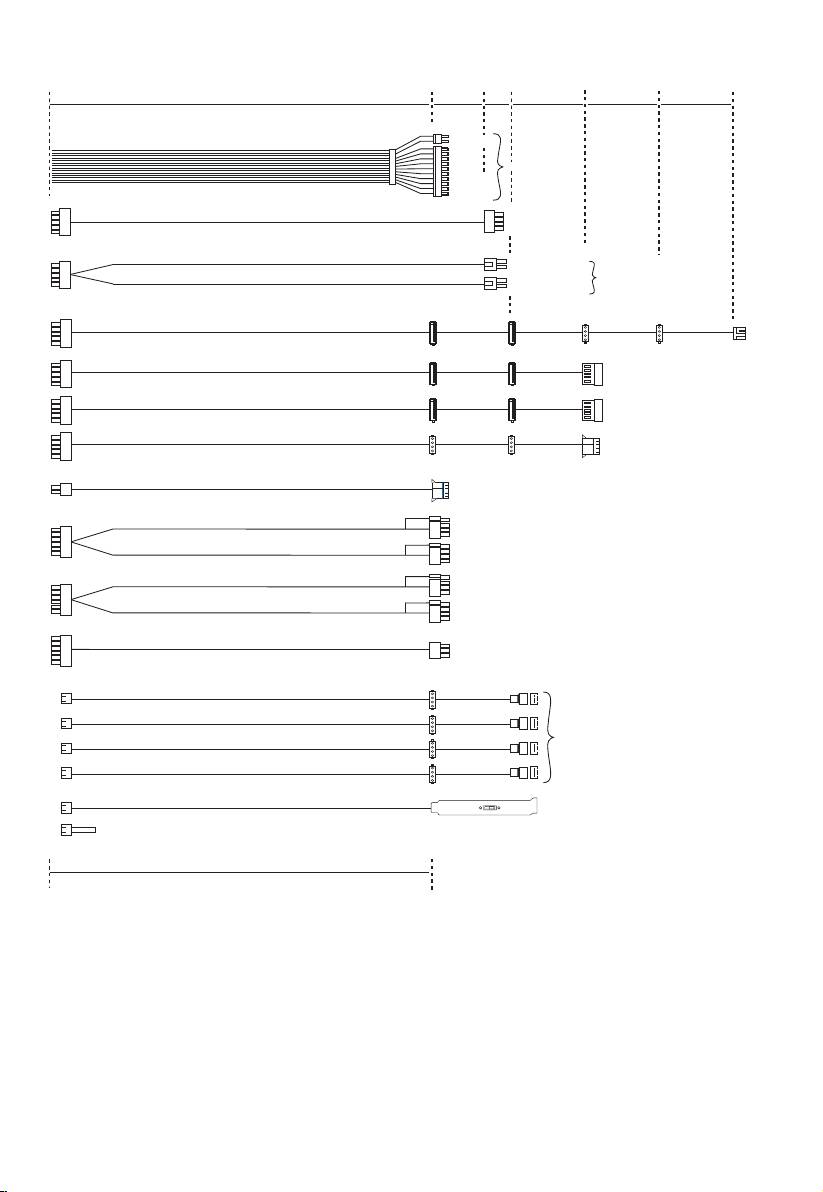

9. CONNECTIVITY AND CABLE LENGTHS
1200W / 1000W
50
600mm
100mm
mm
150mm 150mm 150mm
4-Pin
24-Pin
20-Pin
P8 connector
P4 connector
P8 connector
P4 connector
S-ATAS-ATA
HDD
HDD
FDD
S-ATA
S-ATA
S-ATA
S-ATA
S-ATA
S-ATA
S-ATA
S-ATA
HDD
HDD
HDD
HDDHDD
FDD
MB connector
PCIe 1 (6+2-Pin)
PCIe 2 (6+2-Pin)
PCIe 3 (6+2-Pin)
PCIe 4 (6+2-Pin)
PCIe 5 (6+2-Pin)
PCIe 6 (6+2-Pin)
PCIe 7 (6+2-Pin)
PCIe 8 (6+2-Pin)
PCIe 9 / MB (6 Pin)
External fan connectors
OCK = Overclocking key
OCK = Overclocking jumper
600mm
44 45

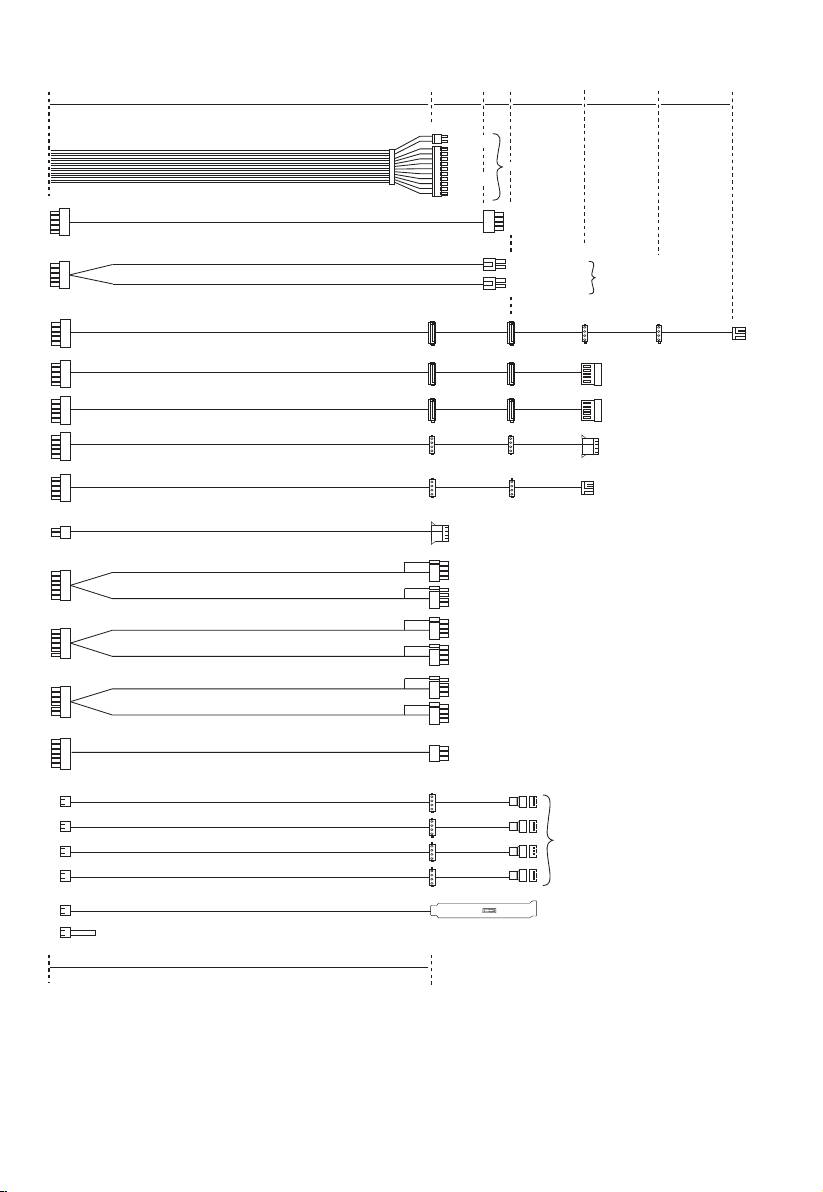

850W / 750W
50
600mm
100mm
mm
150mm 150mm 150mm
4-Pin
24-Pin
20-Pin
P8 connector
P4 connector
P8 connector
P4 connector
S-ATAS-ATA
HDD
HDD
FDD
S-ATA
S-ATA
S-ATA
S-ATA
S-ATA
S-ATA
HDD
HDD
HDD
HDDHDD
FDD
MB connector
PCIe 1 (6+2-Pin)
PCIe 2 (6+2-Pin)
PCIe 3 (6+2-Pin)
PCIe 4 (6+2-Pin)
PCIe 5 (6+2-Pin)
PCIe 6 (6+2-Pin)
PCIe 7 (6 Pin)
External fan connectors
OCK = Overclocking key
OCK = Overclocking jumper
600mm
44 45

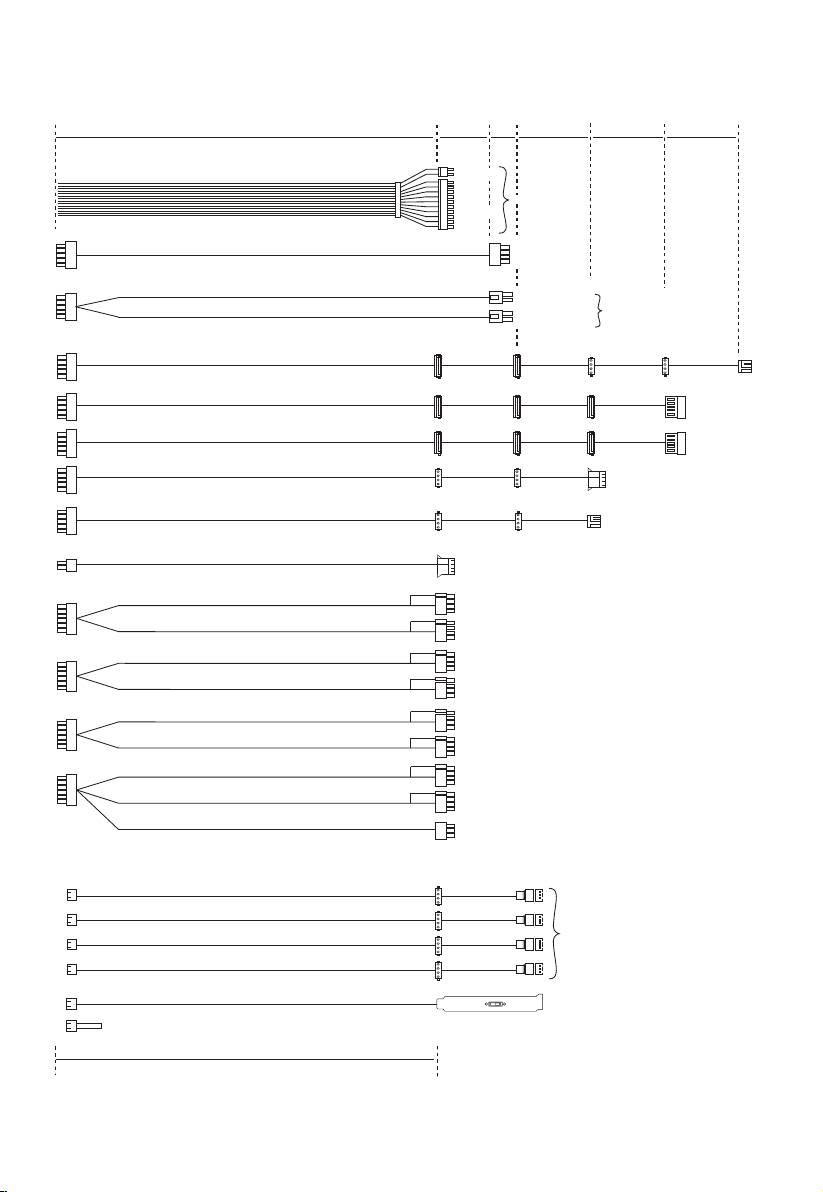

650W / 550W
50
600mm
100mm
mm
150mm 150mm 150mm
4-Pin
24-Pin
20-Pin
P8 connector
P4 connector
P8 connector
P4 connector
S-ATAS-ATA
HDD
HDD
FDD
S-ATA
S-ATA
S-ATA
S-ATA
S-ATA
S-ATA
HDD
HDD
HDD
MB connector
PCIe 1 (6+2-Pin)
PCIe 2 (6+2-Pin)
PCIe 3 (6+2-Pin)
PCIe 4 (6+2-Pin)
PCIe 5 (6 Pin)
External fan connectors
OCK = Overclocking key
OCK = Overclocking jumper
600mm
46 47
46 47
