chiliGREEN MS1761: CHAPTER 2

CHAPTER 2

Introductions

2-2

Introductions

Congratulations on becoming an user of this notebook, the finely designed notebook. This

brand-new exquisite notebook will give you a delightful and professional experience in using

notebook. We are proud to tell our users that this notebook is thoroughly tested and certified by

our reputation for unsurpassed dependability and customer satisfaction

.

Manual Map

This User’s Manual provides instructions and illustrations on how to operate this notebook. It is

recommended to read this manual carefully before using this notebook.

Chapter 1, Preface

, gives users the basic safety information and caution that is interrelated to using

this notebook. It is recommended to read these information or caution when using this notebook

for the first time.

Chapter 2, Introductions

, includes the descriptions of all the accessories of this notebook. It is

recommended to check out that if you have all the accessories included when you open the packing

box. If any of these accessories is damaged or missing, please contact the vendor where you

purchased this notebook. Also, this chapter provides the specification of this notebook, and

introduces the function buttons, quick launch buttons, connectors, LEDs and externals of this

notebook.

Chapter 3, Getting Started

, gives the basic operation instructions on using keyboard, touchpad,

hard disk drive, and optical storage drive. Beside, the steps of installing and uninstalling the

battery; and the procedures of connecting the various external devices, communication devices,

and so on, are also provided to help users getting familiar with this notebook.

2-3

Introductions

Chapter 4, BIOS Setup, provides information on BIOS Setup program and allows you to configure

the system for optimum use.

Unpacking

First, unpack the shipping carton and check all items carefully. If any item contained is damaged or

missing, please contact your local dealer immediately. Also, keep the box and packing materials in

case you need to ship the unit in the future. The package should contain the following items:

Notebook

Quick Start Manual

AC/DC adapter and AC power

High-capacity Li-ion battery

cord

Carry bag (optional)

These accessories listed

All-in-one application disk, containing the full version of user’s manual,

above may change without

drivers, utilities, and optional recovery function, etc..

notice.

2-10

Introductions

1. Webcam

This built-in Webcam can be used for picture taking, video recoding or conferencing, and

any other interactive applications.

2. Internal Microphone

This is the built-in microphone and its function is the same with microphone.

3. Quick Launch Sensors

Press the quick launch sensors to activate the specific applications or tools. The following

Quick Launch Sensors will only be functional in the Operating System with the S-Bar application

installed. Find the S-Bar application in the all-in-one disk that comes with the package for easy

and convenient operation. It is strongly recommended to install the S-Bar application.

 Touch this sensor to eject the disc tray of the optical device drive.

 Please Note: The ODD Eject sensor is functional under pure DOS

system. However, in an Operating System without the S-Bar

application installed, the Eject sensor will not be functional.

ODD Eject

In such a case, users can right-click the ODD in "My Computer"

and select "Eject" to eject the ODD tray.

 Touch this sensor to switch the display off instantly to economize

the power consumption.

Display Off

 Hit any key at the keyboard to switch on the display.

2-11

Introductions

 Touch this sensor repeatedly to turn the Bluetooth function on or

off recurrently.

Bluetooth

 Touch this sensor repeatedly to turn the WLAN function on or off

recurrently.

WLAN (WiFi)

 Touch this sensor repeatedly to switch ON or OFF the colorful flash

keyboard LEDs which are mounted beneath the keyboard.

Keyboard LED

 Refer to chapter 3 of this manual for further information.

Backlit Switch

 Touch this sensor to increase the fan speed to cool down the

overall temperature of the notebook.

 Touch this sensor repeatedly to turn this function on or off

Cooler Boost

recurrently.

 Touch this sensor to activate the Cinema Pro function which

enhances the playback quality from your display device and sound

Cinema Pro

system. Touch this sensor again to turn this function off.

2-12

Introductions

P1

 When AC power is connected, touch this sensor to activate the

Turbo Drive

TDE function. With this function activated, it will bring advanced

Engine (TDE)

Switch

calculating speed to enhance the system performance.

(optional)

 Touch this sensor to bring up the setting interface of

Keyboard LED

P1

Manager application (KLM).

KLM settings

 Refer to chapter 3 of this manual for further information.

(optional)

4. Stereo Speakers

Give high quality sound blaster with stereo system and Hi-Fi function supported.

5. Power Button / Power LED

Power Button

 Press the power button to turn the notebook power ON and OFF.

 Press the power button to awake the notebook from the sleep state.

Power/ Power Saving function LED

 Glowing white when the notebook power is turned on.

 LED goes off when this function is turned off.

2-13

Introductions

6. Touchpad

This is the pointing device of the notebook.

7. Touchpad Switch

Press this button to enable or disable the touchpad function. The touchpad indicator, if

equipped, glows when the touchpad function is disabled.

8. Keyboard

The built-in keyboard provides all the functions of a full-sized keyboard.

Quick Launch [Fn] Buttons

Use the [Fn] buttons on the keyboard to activate the specific applications or tools.

With the help of these quick launch buttons, users will be able to do work more efficiently.

 Press and hold the Fn button, and then press the F4 button to

+

launch the User Defined application.

User Defined

 Or, press and hold the Fn button, and then press the F4 button to

or

Windows Search

launch the Windows Search function.

(optional)

 Press and hold the Fn button, and then press the F5 button

repeatedly to switch among various power saving modes provided

+

ECO Engine

by ECO Engine, or to turn this function off recurrently.

The functions listed here

 Refer to chapter 3 of this manual for further information.

are for reference only.

(Power Saving)

2-14

Introductions

 Press and hold the Fn button, and then press the F6 button to turn

+

the Webcam function on. Press again to turn it off.

Webcam

 Press and hold the Fn button, and then press the F8 button

repeatedly to turn the Wireless LAN (WiFi) function on or off

+

recurrently.

WLAN (WiFi)

 Press and hold the Fn button, and then press the F9 button to turn

the Bluetooth function on. Press again to turn it off.

+

 This function button will not be available when the Bluetooth

Bluetooth

(optional)

function is not supported.

2-15

Introductions

Front Side View

1

1. Status LED

1. Status LED

Hard Disk/ Optical Drive Device In-use

Blinking amber when the system is accessing the hard disk drive or the optical

drive device.

Sleep State

 Blinking amber when the system is in Sleep state.

 LED goes out when the system is turned off.

Battery Status

 Glowing amber when the battery is being charged.

 Blinking amber if the battery fails and it is recommended to replace a new

battery.

2-16

Introductions

 Consult the local dealer for purchasing an equivalent type of battery

recommended by the manufacturer.

 Battery LED goes out when it is fully charged or when the AC/DC adapter

is disconnected.

Bluetooth

 Bluetooth LED indicator glows amber when Bluetooth function is enabled.

 Warning: For flight safety consideration, make sure this LED indicator

goes out when you are in flight.

Bluetooth

 Note: The Bluetooth Function may be optional supported depending on

the model users purchased.

 Contact the local distributor for further information if necessary.

Wireless LAN (WiFi)

 This LED indicator glows amber when Wireless LAN (WiFi) function is

enabled.

 LED indicator goes out when this function is disabled.

 Note: Functions listed here may be optional supported depending on the

WLAN(WiFi)

model users purchased.

 Warning: For flight safety consideration, make sure this LED indicator

goes out when you are in flight.

 Contact the local distributor for further information if necessary.

2-17

Introductions

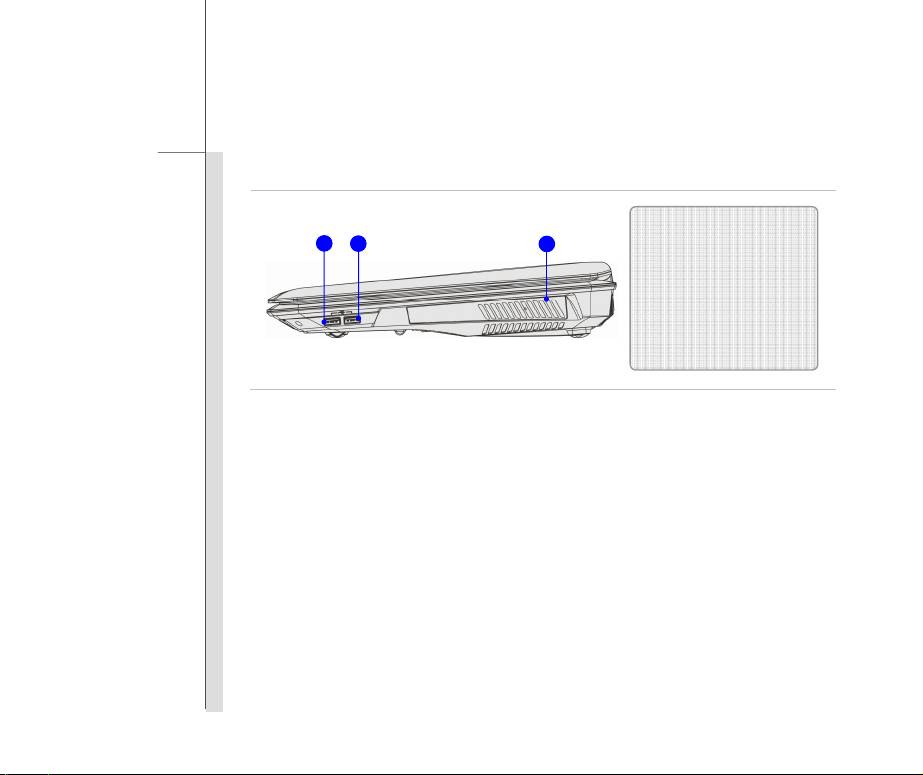

Right Side View

1

1

2

1. USB Ports

2. Optical Drive Device

1. USB 2.0/ 3.0 Ports (Optional)

The USB 2.0 port allows you to connect USB-interface peripheral devices, such as the mouse,

keyboard, modem, portable hard disk module, printer and more.

USB 3.0, the SuperSpeed USB, delivers the higher interface speeds for connecting various

devices, such as storage devices, hard drives, or video cameras, and offers more advantages

over high-speed data transferring.

2. Optical Drive Device

This notebook is equipped with an optical drive device. The actual device preinstalled in the

notebook depends on the model you purchased.

2-18

Introductions

Left Side View

1 32

1. Ventilator

2. Card Reader

3. Audio Port Connectors

4. USB Ports

44 4

1. Ventilator

The ventilator is designed to cool the system. DO NOT block the ventilator for air circulation.

2. Card Reader

The built-in card reader

may support various types of memory card, such as MMC (Multi-Media

Card), XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High Capacity), SDXC(SD

eXtended Capacity), MS (Memory Stick) or MS Pro (Memory Stick Pro) cards. Contact the

local dealer for further and correct information and be noted that the supported memory

cards may vary without notice.

2-19

Introductions

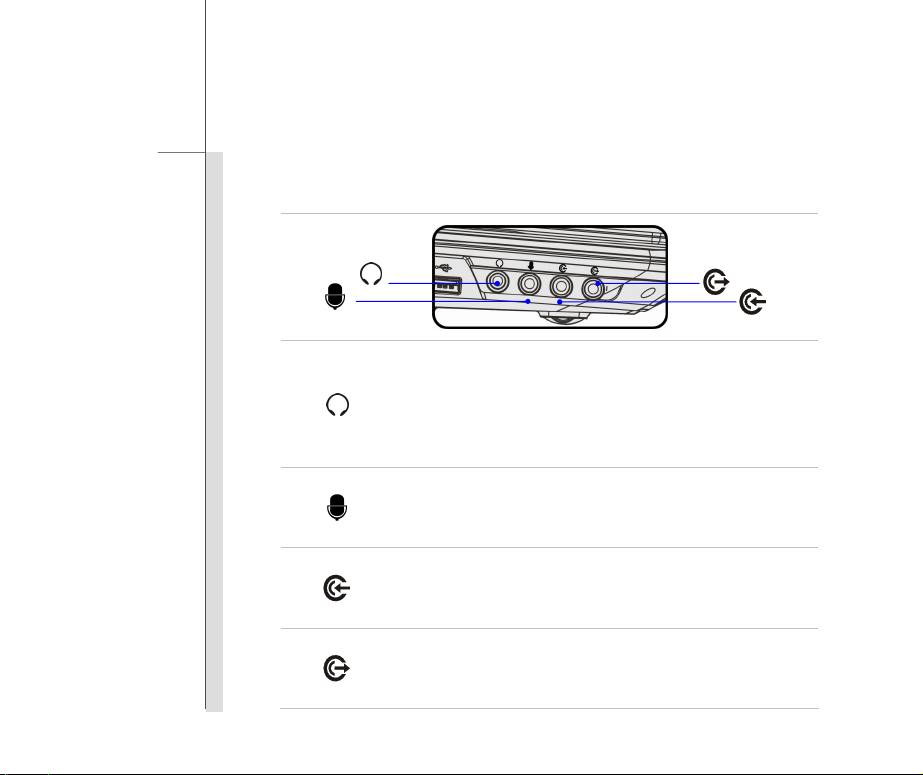

3. Audio Port Connectors

Make high quality sound blaster with stereo system and Hi-Fi function supported.

Headphone out/ SPDIF-out

 Used for speakers or headphones. The S/PDIF connector is also

provided for digital audio transmission to external speakers through

an optical fiber cable.

 Connect the Front speakers here.

Microphone

 Used for an external microphone.

 Connect the Center and Subwoofer speakers here.

Line In

 Used for an external audio device.

 Connect the Rear speakers here.

Line Out

 A connector for speakers.

 Connect the Surround speakers here.
