PPPoE is used to connect eneo products to PPPoE modem provided by

ISP. Since PPPoE needs verifi cation, ID and password are necessary to

access network. Type in ID and password.

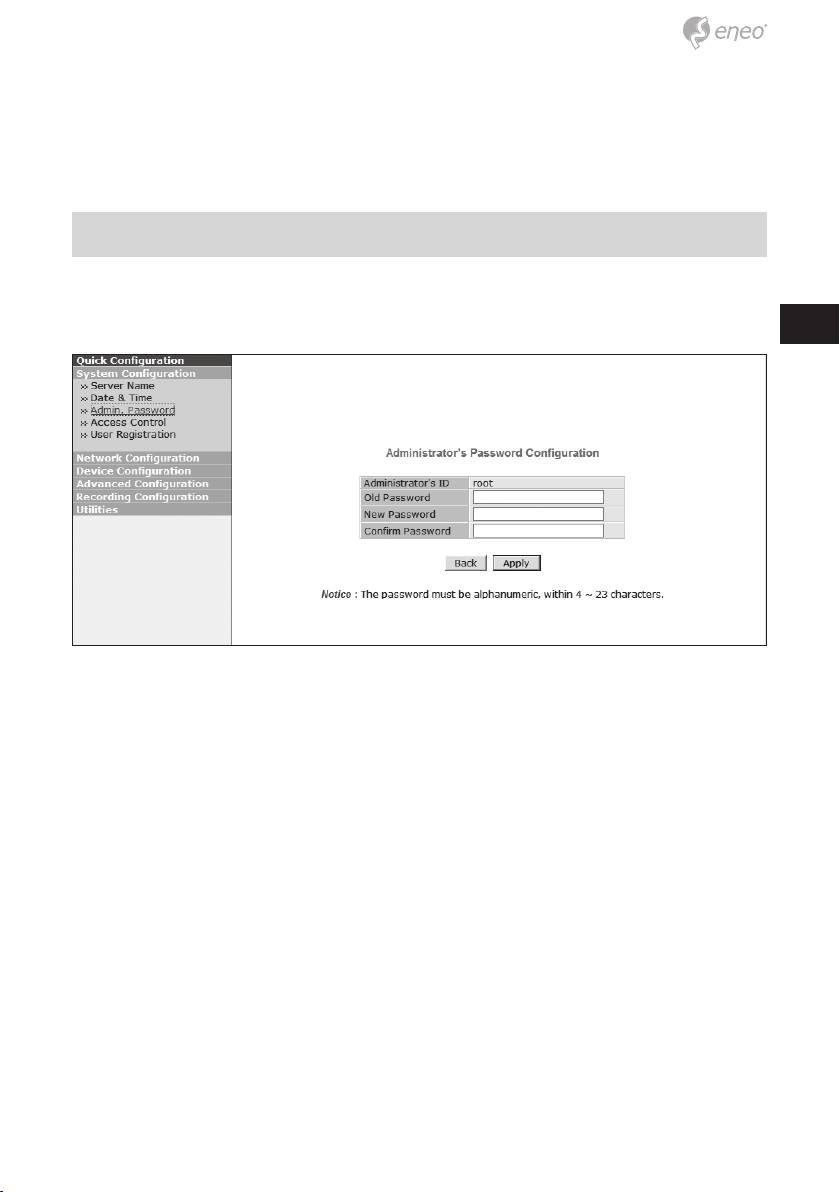

Administrator password

To change the password for the administrator, click Admin Password on

DE

System Confi guration menu.

EN

FR

PL

RU

Default ID for admin account is fi xed as “root” and not allowed to change.

In Old Password fi eld, enter the current password. In both New Password

and Confi rm Password fi elds, enter the same new password. The password

must be between 4 and 23 alphanumeric letters. Click Apply button to put it

into eff ect.

Because you have replaced the password with a new one, the existing

network connection made with old password now is lost. You will have to

reconnect using the new password.

27

Camera setup

Accessing the setup menu

The setup menu can be accessed and controlled either by using the USB

connector or by using the RS-422 interface.

To access the setup menu please install the „Camera Controller GUI“ soft-

ware from the enclosed CD-ROM. During the installation, you will be promp-

ted to install Silicon Laboratories drivers. This portion of the installation is

necessary for using a USB connection to the camera.

Make sure that the camera is properly connected to the PC before running

the GUI.

Please select „LWIR“ mode. When the GUI first opens, it will display “Not

Connected” on the bottom left.

Connect to the camera by selecting „Tools“ and then „Connection“.

28
