Operating instructions

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and

checked under the most meticulous quality control procedures, will provide you an

effective service.

For this, we recommend you to carefully read the entire manual of your product

before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.

• Read the manual before installing and operating your product.

• Follow the instructions, especially those for safety.

• Keep the manual in an easily accessible place as you may need it later.

• Besides, read also the other documents provided with your product.

Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

C Important information or useful usage tips.

A Warning against dangerous conditions for life and property.

B Warning against electric voltage.

This product is supplied with the selective sorting symbol for waste electrical

and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive

2002/96/EC in order to be recycled or dismantled to minimise its impact on

the environment. For further information, please contact your local or regional

authorities.

Electronic products not included in the selective sorting process are potentially

dangerous for the environment and human health due to the presence of

hazardous substances.

CONTENTS

1 Your Refrigerator 3

4 Preparation 11

2 Important Safety Warnings 4

5 Using your refrigerator 12

Intended use .....................................4

Indicator Panel .................................12

For products with a water dispenser; .6

Open door warning ..........................13

Child safety ........................................6

Icematic and ice storage container .. 15

HCA Warning ....................................6

Blue light .........................................15

Things to be done for energy saving ..7

Egg tray ...........................................16

Recommendations for freshfood

Sliding Body Shelves .......................16

compartment .....................................7

Chiller compartment ........................16

Crisper ............................................17

3 Installation 8

Freezing fresh food ..........................18

Points to be considered when re-

Recommendations for preservation of

transporting your refrigerator .............8

frozen food ......................................19

Before operating your refrigerator ......8

Placing the food ..............................19

Electric connection ............................8

Deep-freeze information ..................19

Disposing of the packaging ............... 9

Disposing of your old refrigerator .......9

6 Maintenance and

cleaning 20

Changing the illumination lamp .......10

Protection of plastic surfaces .......... 20

Adjusting the feet .............................10

Placing and Installation ....................10

7 Recommended solutions

for the problems 21

2

EN

3

EN

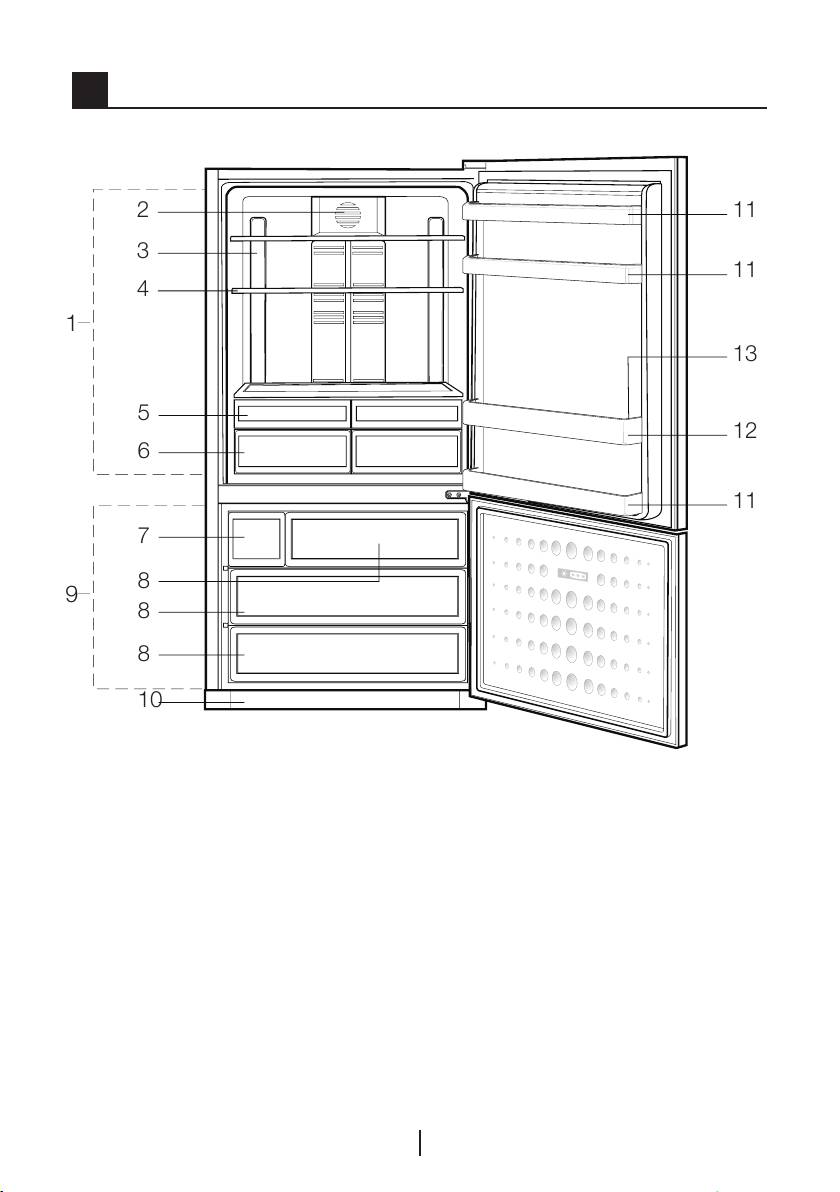

1 Your Refrigerator

1- Fridge compartment

7- Icematic

2- Diffuser cover

8- Freezing compartments

3- Illumination lens

9- Freezer compartment

4- Fridge compartment glass shelves

10- Ventilation lid

5- Chiller compartment

11- Fridge compartment door shelves

6- Crisper

12- Bottle shelf

C Figures that take place in this instruction manual are schematic and

may not correspond exactly with your product. If the subject parts are not

included in the product you have purchased, then it is valid for other models.

2 Important Safety Warnings

Please review the following

• For products with a freezer

information. Failure to observe this

compartment; Do not put bottled and

information may cause injuries or

canned liquid beverages in the freezer

material damage. Otherwise, all

compartment. Otherwise, these may

warranty and reliability commitments

burst.

will become invalid.

• Do not touch frozen food by hand;

The usage life of the unit you

they may stick to your hand.

purchased is 10 years. This is the

• Unplug your refrigerator before

period for keeping the spare parts

cleaning or defrosting.

required for the unit to operate as

• Vapor and vaporized cleaning

described.

materials should never be used in

cleaning and defrosting processes of

your refrigerator. In such cases, the

Intended use

vapor may get in contact with the

This product is intended to be used

electrical parts and cause short circuit

– indoors and in closed areas such as

or electric shock.

homes;

• Never use the parts on your

– in closed working environments such

refrigerator such as the door as a

as stores and offices;

means of support or step.

– in closed accommodation areas such

• Do not use electrical devices inside

as farm houses, hotels, pensions.

the refrigerator.

• This product should not be used

• Do not damage the parts, where

outdoors.

the refrigerant is circulating, with

drilling or cutting tools. The refrigerant

General safety

that might blow out when the gas

• When you want to dispose/scrap

channels of the evaporator, pipe

the product, we recommend you

extensions or surface coatings are

to consult the authorized service in

punctured causes skin irritations and

order to learn the required information

eye injuries.

and authorized bodies.

• Do not cover or block the ventilation

• Consult your authorized service for

holes on your refrigerator with any

all your questions and problems

material.

related to the refrigerator. Do not

• Electrical devices must be repaired

intervene or let someone intervene to

by only authorised persons. Repairs

the refrigerator without notifying the

performed by incompetent persons

authorised services.

create a risk for the user.

• For products with a freezer

• In case of any failure or during

compartment; Do not eat cone ice

a maintenance or repair work,

cream and ice cubes immediately

disconnect your refrigerator’s mains

after you take them out of the freezer

supply by either turning off the

compartment! (This may cause

relevant fuse or unplugging your

frostbite in your mouth.)

appliance.

4

EN

• Do not pull by the cable when pulling

• Never connect your refrigerator to

off the plug.

electricity-saving systems; they may

• Place the beverage with higher proofs

damage the refrigerator.

tightly closed and vertically.

• If there is a blue light on the

• Never store spray cans containing

refrigerator, do not look at the blue

flammable and explosive substances

light with optical tools.

in the refrigerator.

• For manually controlled refrigerators,

• Do not use mechanical devices

wait for at least 5 minutes to start the

or other means to accelerate the

refrigerator after power failure.

defrosting process, other than those

• This operation manual should be

recommended by the manufacturer.

handed in to the new owner of the

• This product is not intended to be

product when it is given to others.

used by persons with physical,

• Avoid causing damage on power

sensory or mental disorders or

cable when transporting the

unlearned or inexperienced people

refrigerator. Bending cable may cause

(including children) unless they are

fire. Never place heavy objects on

attended by a person who will be

power cable. Do not touch the plug

responsible for their safety or who will

with wet hands when plugging the

instruct them accordingly for use of

product.

the product

• Do not operate a damaged

refrigerator. Consult with the service

agent if you have any concerns.

• Electrical safety of your refrigerator

shall be guaranteed only if the earth

system in your house complies with

standards.

• Exposing the product to rain, snow,

• Do not plug the refrigerator if the wall

sun and wind is dangerous with

outlet is loose.

respect to electrical safety.

• Water should not be sprayed directly

• Contact authorized service when

on inner or outer parts of the product

there is a power cable damage to

for safety purposes.

avoid danger.

• Do not spray substances containing

• Never plug the refrigerator into

inflammable gases such as propane

the wall outlet during installation.

gas near the refrigerator to avoid fire

Otherwise, risk of death or serious

and explosion risk.

injury may arise.

• Never place containers filled with

• This refrigerator is intended for only

water on top of the refrigerator,

storing food items. It must not be

otherwise this may cause electric

used for any other purpose.

shock or fire.

• Label of technical specifications is

• Do not overload your refrigerator

located on the left wall inside the

with excessive amounts of food. If

refrigerator.

overloaded, the food items may fall

5

EN

down and hurt you and damage

Child safety

refrigerator when you open the door.

• If the door has a lock, the key should

Never place objects on top of the

be kept away from reach of children.

refrigerator; otherwise, these objects

• Children must be supervised to

may fall down when you open or

prevent them from tampering with the

close the refrigerator's door.

product.

• As they require a precise

temperature, vaccines, heat-sensitive

HCA Warning

medicine and scientific materials

If your product's cooling system

and etc. should not be kept in the

contains R600a:

refrigerator.

This gas is flammable. Therefore, pay

• If not to be used for a long time,

attention to not damaging the cooling

refrigerator should be unplugged. A

system and piping during usage and

possible problem in power cable may

transportation. In the event of damage,

cause fire.

keep your product away from potential

• The plug's tip should be regularly

fire sources that can cause the

cleaned; otherwise, it may cause fire.

product catch a fire and ventilate the

• The plug’s tip should be cleaned

room in which the unit is placed.

regularly with a dry cloth; otherwise, it

Ignore this warning if your

may cause fire.

product's cooling system contains

• Refrigerator may move if adjustable

R134a.

legs are not properly secured on the

Type of gas used in the product is

floor. Properly securing adjustable

stated in the type plate which is on the

legs on the floor can prevent the

left wall inside the refrigerator.

refrigerator to move.

Never throw the product in fire for

• When carrying the refrigerator, do not

disposal.

hold it from door handle. Otherwise, it

may be snapped.

• When you have to place your product

next to another refrigerator or freezer,

the distance between devices should

be at least 8cm. Otherwise, adjacent

side walls may be humidified.

For products with a water

dispenser;

Pressure of water mains should be

minimum 1 bar. Pressure of water

mains should be maximum 8 bars.

• Use only potable water.

6

EN

Things to be done for energy

Recommendations for

saving

freshfood compartment

• Do not leave the doors of your

* OPTIONAL

refrigerator open for a long time.

• Please do not let any foodstuff to

• Do not put hot food or drinks in your

come to contact with the temperature

refrigerator.

sensor in freshfood compartment.

• Do not overload your refrigerator so

In order to maintain freshfood

that the air circulation inside of it is not

compartment at ideal storage

prevented.

temperature, the sensor must not be

• Do not install your refrigerator

blocked by fodstuffs.

under direct sunlight or near heat

• Do not place hot foodstuff in your

emitting appliances such as ovens,

appliance.

dishwashers or radiators.

• Pay attention to keep your food in

closed containers.

• For products with a freezer

compartment; You can store

maximum amount of food items in

the freezer when you remove the

shelf or drawer of the freezer. Energy

consumption value stated for your

refrigerator has been determined

by removing freezer shelf or drawer

and under maximum load. There

is no harm to use a shelf or drawer

according to the shapes and size of

food to be frozen.

• Thawing frozen food in fridge

compartment will both provide energy

saving and preserve the food quality.

7

EN
