Hach-Lange POLYMETRON 9523 Basic User Manual: instruction

DOC023.98.93065

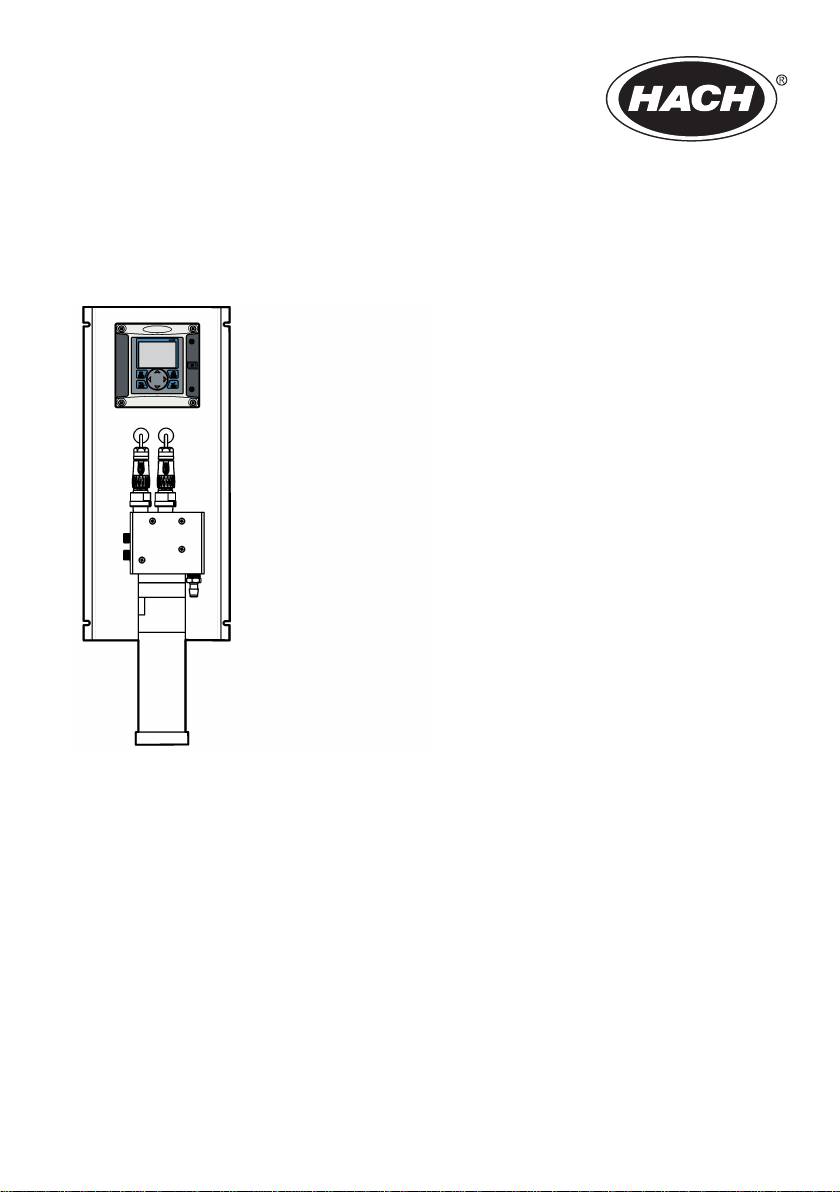

Polymetron 9523 pH Calculator

11/2013, Edition 3

Basic User Manual

Basishandbuch

Manuale dell'utente di base

Manuel d'utilisation de base

Manual básico del usuario

Manual de operações básicas

基本用户手册

Basisgebruikershandleiding

Podstawowa instrukcja obsługi

Peruskäyttöohje

Начальное руководство пользователя

English..............................................................................................................................3

Deutsch..........................................................................................................................25

Italiano............................................................................................................................48

Français.........................................................................................................................71

Español..........................................................................................................................94

Português....................................................................................................................118

中文...............................................................................................................................141

Nederlands.................................................................................................................160

Polski............................................................................................................................184

Suomi............................................................................................................................207

Русский........................................................................................................................229

2

Table of contents

Specifications on page 3 Operation on page 18

General information on page 5 Maintenance on page 22

Installation on page 8

User interface and navigation on page 17

Additional information

Additional information is available on the manufacturer's website.

Specifications

Specifications are subject to change without notice.

Analyzer

Specification Details

Dimensions 748 x 250 x 236 mm (29.4 x 9.8 x 9.3 in.)

Weight 7 kg (15.4 lb)

Sample flow rate 5—20 liters/hour

Ambient temperature 0—60 °C (32—140 °F)

Relative humidity 10—90%

Temperature sensor Pt100

Accuracy ± 1% of displayed value; temperature < ± 0.2 °C

Accuracy on conductivity measurement: ± 2%; Maximum difference calculated-theoretical

Calculated pH

value: 0.1 pH

NH

3

; 7 < pH < 10; 2.8 μS/cm < C1 < 28 μS/cm; C2 < 0.5 μS/cm

Display range

NaOH; 7 < pH < 10.7; 2.5 μS/cm < C1 < 125 μS/cm; C2 < 100 μS/cm

Display resolution Conductivity/resistivity: automatic point drift (minimum resolution 0.001 μS/cm) < 0.1 °C

Polyethylene or PTFE or FEP; 0.2 to 6 bars (3 to 90 psi); 5 to 50 °C (40 to 120 °F); Input:

Sample tubing

6-mm (standard) or 1/4-inch (with adapter); Output: 12-mm or 1/2-inch

Certifications EN 61326-1: 2006; EN 61010-1: 2010

Sensor

Specification Details

Sensor body material Black PSU

Conductivity electrodes, internal and external Stainless steel 316L

-1

Cell constant K 0.01 (cm

)

-1

Conductivity range 0.01—200 μS.cm

; Resistivity range: 5k Ω.cm—100 MΩ.cm

Maximum pressure 10 bar

Maximum temperature 125 °C (257 °F)

Accuracy < 2%

English 3

Specification Details

Temperature response < 30 seconds

Insulator PSU

Connector Glass polyester (IP65)

Controller

Specification Details

Component description Microprocessor-controlled and menu-driven controller that operates the sensor and

displays measured values.

Operating temperature -20 to 60 ºC (-4 to 140 ºF); 95% relative humidity, non-condensing with sensor load

<7 W; -20 to 50 ºC (-4 to 104 ºF) with sensor load <28 W

Storage temperature -20 to 70 ºC (-4 to 158 ºF); 95% relative humidity, non-condensing

1

Enclosure

NEMA 4X/IP66 metal enclosure with a corrosion-resistant finish

Power requirements AC powered controller: 100-240 VAC ±10%, 50/60 Hz; Power 50 VA with 7 W

sensor/network module load, 100 VA with 28 W sensor/network module load

(optional Modbus, RS232/RS485, Profibus DPV1 or HART network connection).

24 VDC powered controller: 24 VDC—15%, + 20%; Power 15 W with 7 W

sensor/network module load, 40 W with 28 W sensor/network module load (optional

Modbus, RS232/RS485, Profibus DPV1 or HART network connection).

Altitude requirements Standard 2000 m (6562 ft) ASL (Above Sea Level)

Pollution

Polution Degree 2; Installation Category II

degree/Installation

category

Outputs Two analog (0-20 mA or 4-20 mA) outputs. Each analog output can be assigned to

represent a measured parameter such as pH, temperature, flow or calculated

values. Optional module supplies three additional analog outputs (5 total).

Relays Four SPDT, user-configured contacts, rated 250 VAC, 5 Amp resistive maximum for

the AC powered controller and 24 VDC, 5A resistive maximum for the DC powered

controller. Relays are designed for connection to AC Mains circuits (i.e., whenever

the controller is operated with 115 - 240 VAC power) or DC circuits (i.e., whenever

the controller is operated with 24 VDC power).

Dimensions ½ DIN—144 x 144 x 180.9 mm (5.7 x 5.7 x 7.12 in.)

Weight 1.7 kg (3.75 lb)

2

Compliance information

CE approved (with all sensor types). Listed for use in general locations to UL and

CSA safety standards by ETL (with all sensor types).

Certain AC mains powered models are listed for use in general safety locations to

UL and CSA safety standards by Underwriters Laboratories (with all sensor types).

Digital communication Optional Modbus, RS232/RS485, Profibus DPV1 or HART network connection for

data transmission

Data logging Secure Digital Card (32 GB maximum) or special RS232 cable connector for data

logging and performing software updates. The controller will keep approximately

20,000 data points per sensor.

Warranty 2 years

1

Units that have the Underwriters Laboratories (UL) certification are intended for indoor use only and do not

have a NEMA 4X/IP66 rating.

2

DC powered units are not listed by UL.
