Eneo VMC-22LED: TFT LCD MONITOR VMC-27LEDM VMC-32LEDM VMC-42LED
TFT LCD MONITOR VMC-27LEDM VMC-32LEDM VMC-42LED: Eneo VMC-22LED
QUICK MANUAL
Installation and Operating Instructions
TFT LCD MONITOR
VMC-27LEDM
VMC-32LEDM
VMC-42LED

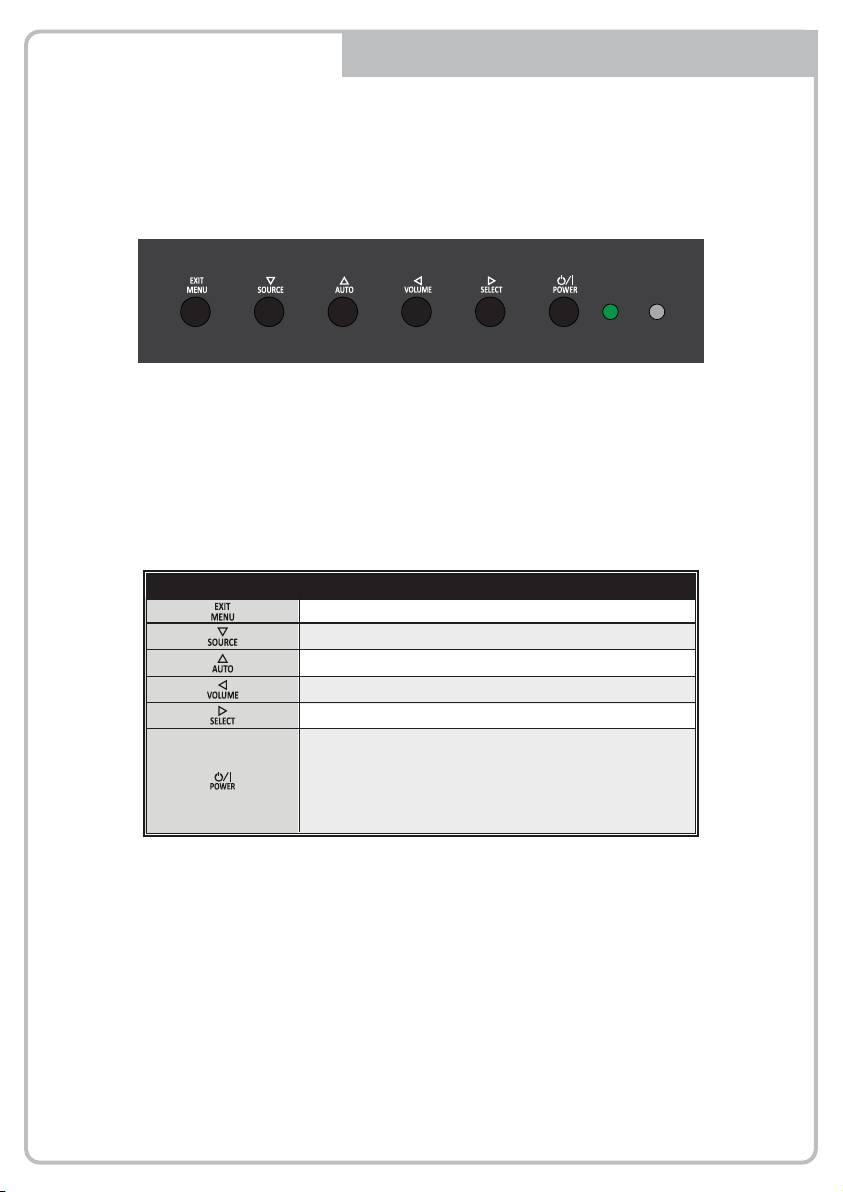

KEY BUTTON
SHORT KEY FUNCTION
OSD Key Function
Activates and exit the OSD
Select input source, and select the OSD menu
Move the OSD menu and auto adjustment of RGB source
Decrease the level of volume and move the previous menu
Increase the level of volume and select rhe OSD menu
Turns the power ON or OFF. There will be a few seconds
delay before the display appears.The power LED (next to the
power switch) lights with green when the power is turned ON.
The power is turned off by pressing the power switch again
and the power LED goes red.

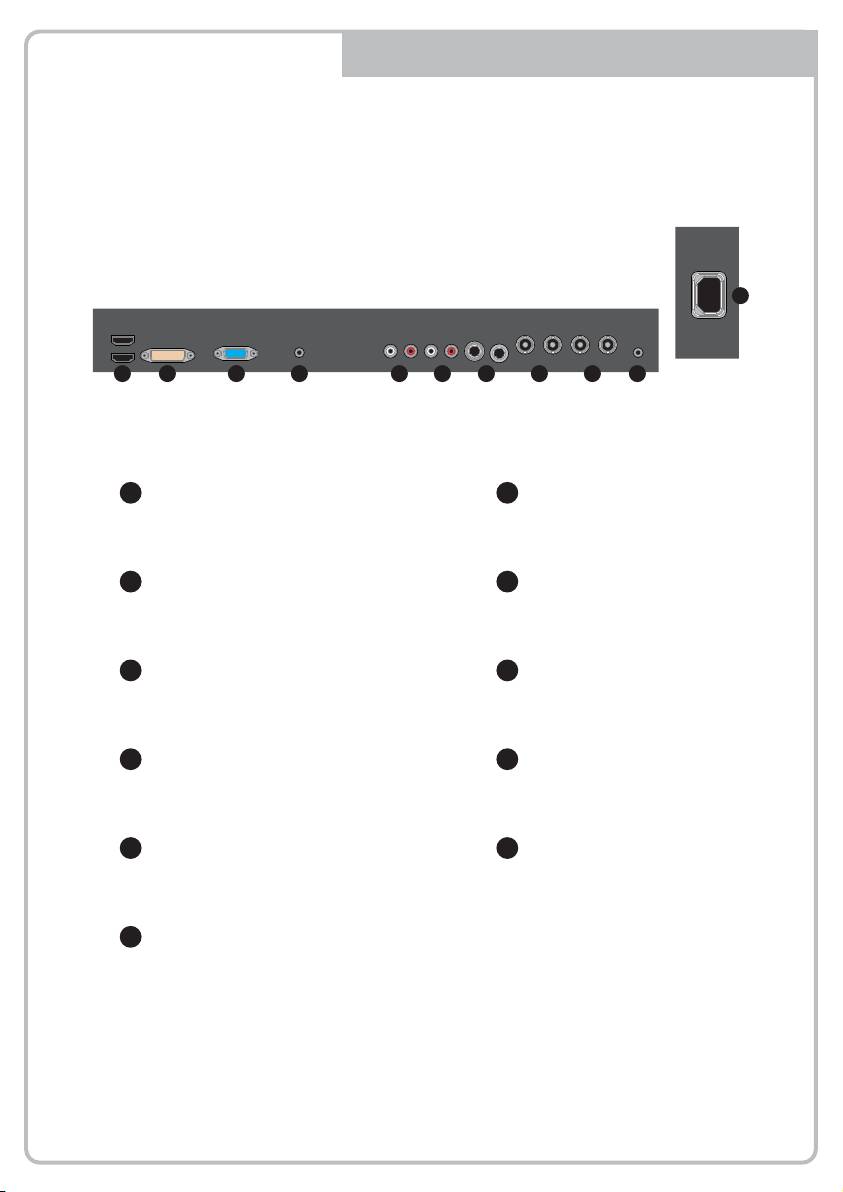

CONNECTION
11
1 2 3 4 5 6 7 8 9 10
1
HDMI
7
S-VIDEO IN / OUT
HDMI signal 1 / 2 input
S-VIDEO signal input / looping out
2
DVI
8
VIDEO-2 IN / OUT
DVI signal input
VIDEO-2 signal input / looping out
3
VGA
9
VIDEO-1 IN / OUT
VGA (PC RGB) signal input
VIDEO-1 signal input / looping out
4
AUDIO (PC)
10
TRIGGER
Stereo audio input for VGA
TRIGGER signal input
5
AUDIO (VIDEO-2)
11
AC POWER
Stereo audio input for VIDEO-2 AC100~240V input
6
AUDIO (VIDEO-1 / S-VIDEO)
Stereo audio input for VIDEO-1 or S-VIDEO

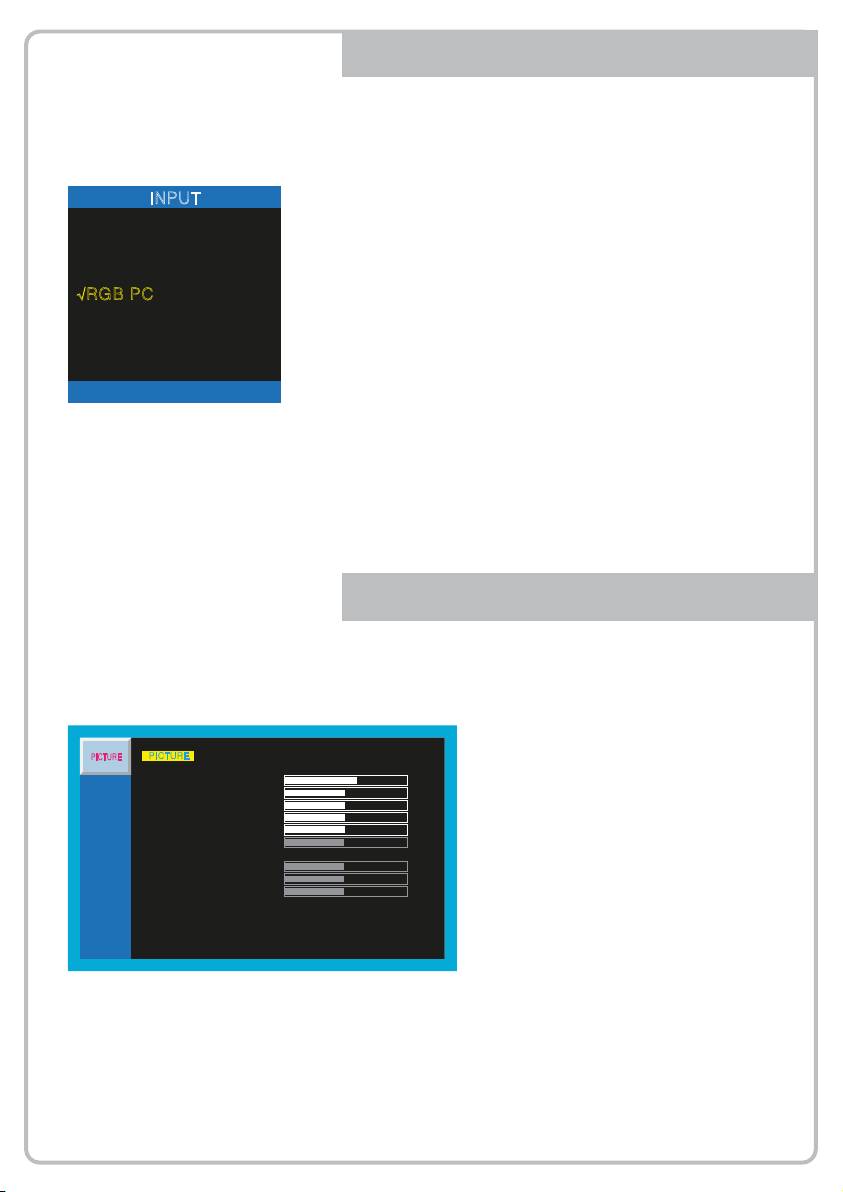

MODE SETTING
INPUT
VIDEO1
VIDEO2
VIDEO1
Select VIDEO1 mode
Select VIDEO2 mode
VIDEO2
S-VIDEO
RGB PC
S-VIDEO
Select S-VIDEO mode
Select VGA mode
√
RGB PC
DVI
HDMI1
DVI
Select DVI mode
Select HDMI1 mode
HDMI 1
HDMI 2
HDMI2
Select HDMI2 mode
▼/▲:MOVE ▶:ENTER
Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC, DVI, HDMI1, HDMI2 mode
PICTURE MENU
CONTRAST : Adjust visual color contrast
BRIGHTNESS : Adjust color brightness
CONTRAST
60%
SCREEN
BRIGHTNESS
50%
COLOR : Adjust visual color of screen
COLOR
50%
TINT
50%
TINT : Adjust tint of color
SETUP
SHARPNESS
50%
PEAKING CONTROL
50%
SHARPNESS : Adjust sharpness of screen
COLOR TEMP ◀ MEDIUM
▶
RGB
RED
50%
SETUP
COLOR TEMP : Switch color temperature of
GREEN
50%
BLUE
50%
screen
CYCLE
MODE SELECT ◀ 1080P
▶
SETUP
MODE SELECT : Adjust mode of screen
(DVI, HDMI mode only)
TRIGGER
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

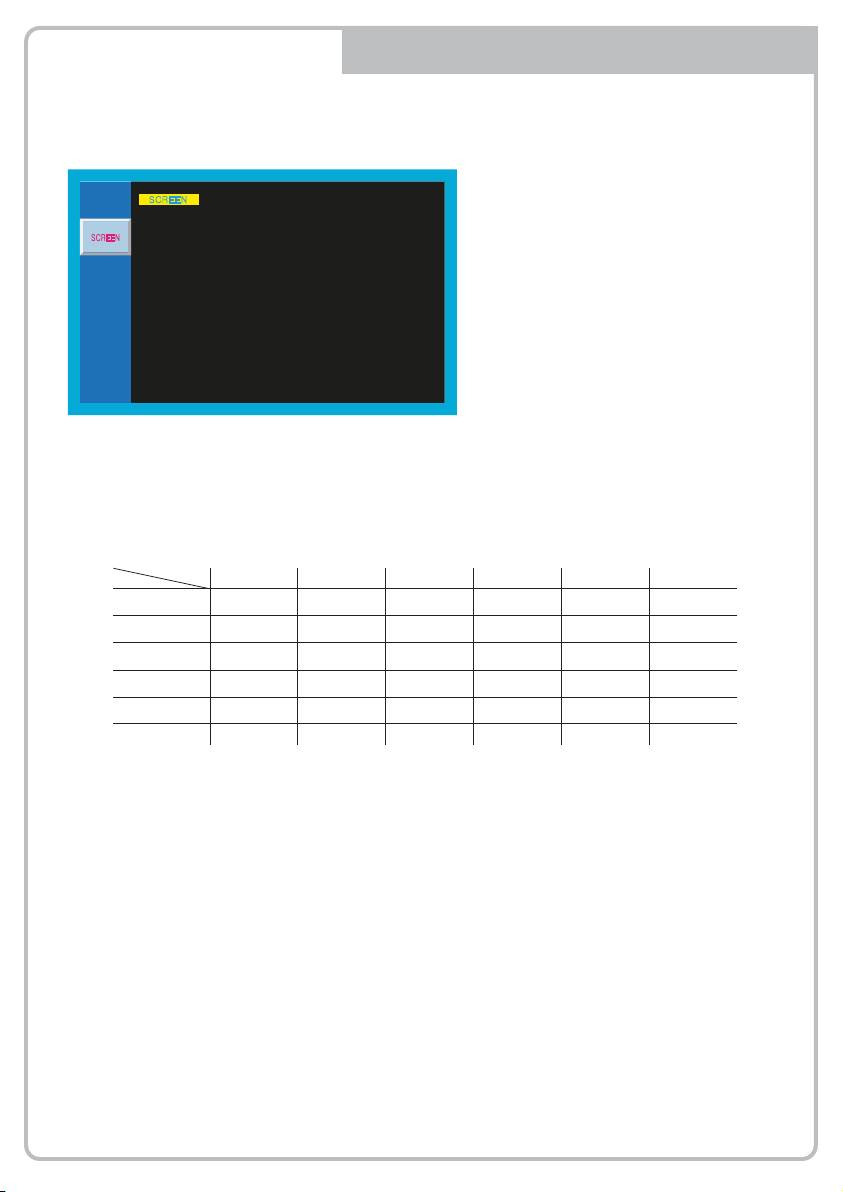

SCREEN MENU
SCREEN
SCAN MODE : Select the scan mode of screen
SCAN MODE
◀ FULL
▶
PIP : Activates PIP/PBP mode
SCREEN
PIP
◀ OFF
▶
PIP INPUT
◀ VIDEO2
▶
PIP SWAP
▶
SETUP
PIP SIZE
◀ SMALL
▶
PIP R/T
◀ R/B
▶
RGB
SETUP
CYCLE
SETUP
TRIGGER
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
PIP, PBP - COMBINATION OF SIGNAL INPUT
SUB
VIDEO-1 VIDEO-2 S-VIDEO VGA DVI HDMI
MAIN
VIDEO-1
X O O X X X
VIDEO-2
O X O X X X
S-VIDEO
O O X X X X
VGA
O O O X X X
DVI
O O O X X X
HDMI
O O O X X X
SETUP MENU
INPUT : Select an input source for main screen
SETUP
LANGUAGE : Set to different language mode
INPUT
◀ VIDEO1
▶
SCREEN
LANGUAGE
◀ ENGLISH
▶
SOUND MUTE : Turn on/off the sound
SOUND MUTE
◀ OFF
▶
BUTTON LOCK
◀ OFF
▶
BUTTON LOCK : Locking the button
SETUP
NOISE REDUCTION
◀ ON
▶
OSD TIME
15s
NOISE REDUCTION : Set a noise reduction mode
DEFAULT
▶
RGB
LINE SHIFT ◀ ON
▶
SETUP
NO OPERATION ◀ OFF
▶
OSD TIME : Set a time duration of OSD menu
CYCLE
DEFAULT : Factory default setting
SETUP
LINE SHIFT : Move a little to protect the screen
TRIGGER
NO OPERATION : Set a no operation mode
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
RGB SETUP MENU
RGB SETUP
H-POSITION : Adjust horizontal position of monitor
H-POSITION
100%
V-POSITION : Adjust vertical position of monitor
SCREEN
V-POSITION
0%
CLOCK
0%
CLOCK : Adjust clock of monitor
PHASE
0%
PHASE : Adjust phase of monitor
SETUP
AUTO ADJUST
▶
POWER SAVING
◀ OFF
▶
AUTO ADJUST : Auto adjust position of screen
AUTO REPEAT
◀ OFF
▶
RGB
SETUP
POWER SAVING : Power saving mode
AUTO REPEAT : Adjust auto repeat of monitor
CYCLE
SETUP
TRIGGER
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*

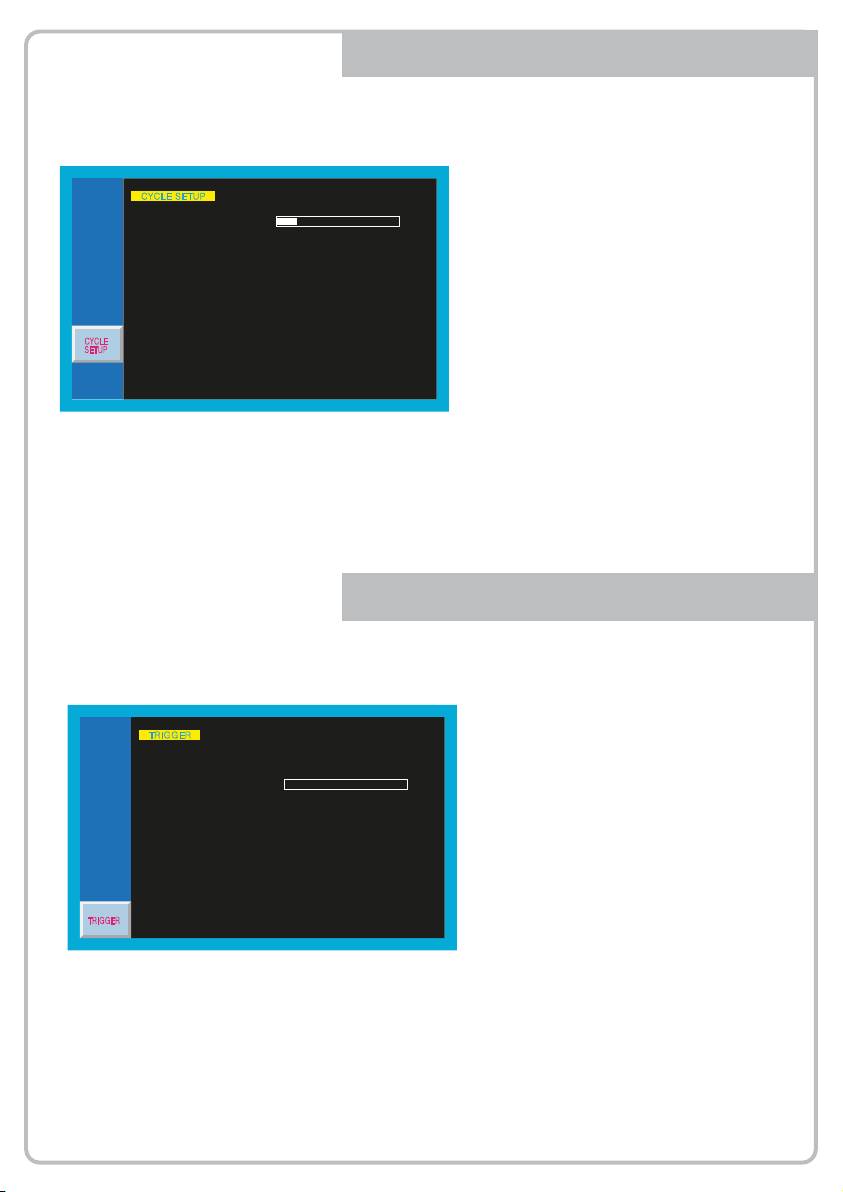

CYCLE SETUP MENU
CYCLE TIME : Adjust cycle time to displayed on
CYCLE SETUP
the screen
CYCLE TIME
10s
SCREEN
CYCLE
◀ OFF
▶
CYCLE : Selected mode keep change continuously
VIDEO1
◀ OFF
▶
VIDEO2
◀ OFF
▶
SETUP
S-VIDEO
◀ OFF
▶
RGB PC
◀ OFF
▶
DVI
◀ OFF
▶
RGB
HDMI 1 ◀ OFF
▶
SETUP
HDMI 2 ◀ OFF
▶
CYCLE
SETUP
TRIGGER
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
TRIGGER MENU
TRIGGER MODE : Set the trigger mode
TRIGGER
TRIGGER INPUT : Select the input source of
TRIGGER MODE
◀ OFF
▶
SCREEN
TRIGGER INPUT
◀ VIDEO1
▶
trigger mode
TRIGGER DWELL
10s
TRIGGER DWELL : Set the display time of
SETUP
trigger mode
RGB
SETUP
CYCLE
SETUP
TRIGGER
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
®
eneo
is a registered trademark of Videor E. Hartig GmbH
Exclusive distribution through specialised trade channels only.
Videor E. Hartig GmbH
Carl-Zeiss-Straße 8 • 63322 Rödermark, Germany
Tel. +49 (0) 6074 / 888-0 • Fax +49 (0) 6074 / 888-100
www.videor.com
Technical changes reserved.
www.eneo-security.com
© Copyright by Videor E. Hartig GmbH 12/2014
