TABLE OF CONTENTS

WHAT DOES MR HANDSFREE GENIUS INCLUDE?..........2

INSTALLATION.........................................................................2

OPERATION OF MR HANDSFREE GENIUS............................6

TROUBLE-SHOOTING ............................................................7

MAINTENANCE........................................................................9

M_Genius_GB_2.pmd 21.03.2005, 11:531

Dear mr Handsfree Genius owner,

Congratulations on your purchase of one of the most sophisticated and

easy to use car kits! This model provides you with the highest quality full-

duplex voice communication. Now you can enjoy the safest telephone

conversations in your car without any inconveniences.

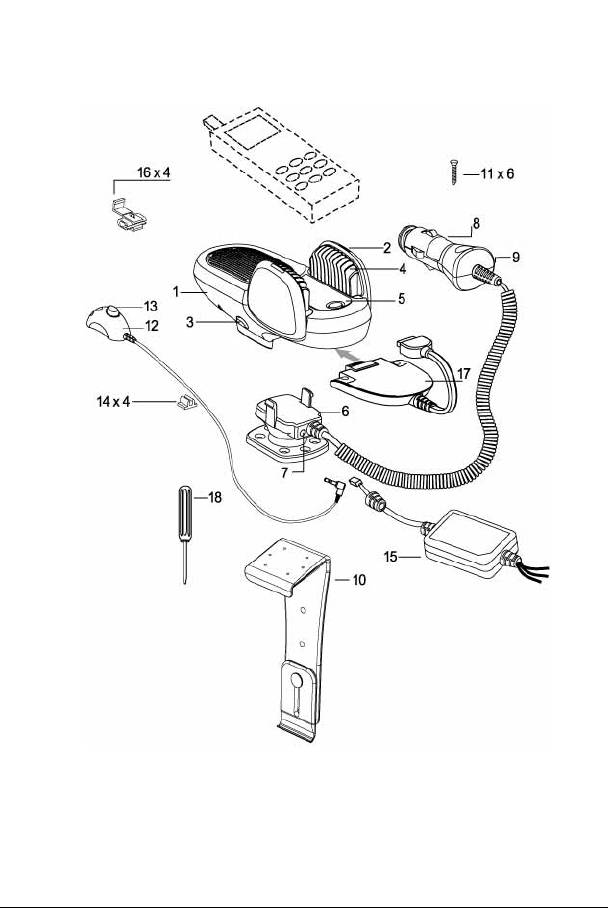

WHAT DOES MR HANDSFREE GENIUS INCLUDE?

1. Main Unit with built-in speaker.

2. TALK mode LED indicators.

3. Buttons for releasing the Main Unit from the Main unit holder.

4. Holder for Mobile phone.

5. Button to release the cramps of the Holder.

6. Main unit holder.

7. Microphone jack.

8. Power adapter for cigarette plug:

8.1. Curled cord.

8.2. Removable fuse.

9. LED indicator of Power Adapter.

10. Mounting bracket.

11. Long screws (15mm) for fastening the Mounting Unit to the dashboard of

your car.

2

3

12. Microphone.

13. Button for microphone sensitivity.

14. Clips for guiding the microphone cord.

15. Adapter for connection to car power supply and Mute cord of Car Radio (CRM).

16. Contact clips for connecting the cords.

17. Connector for connecting Mobile Phone to the Main Unit (not included).

18. Screw driver.

INSTALLATION

MOUNTING MR HANDSFREE GENIUS

• Select the place where you want to install the Genius main unit. The place

for the main unit has to be easily accessible for your hands, clearly visible

for the phone’s display and safe enough in case of accidents and for the

operation of Airbags. Under no circumstances should the appliance prevent

the driver from controlling or operating the car in any way.

• The mounting for the Genius main unit (this is also the phone holder) has to

be done by using a mounting bracket. The Genius main unit has to be

removed from the main unit holder. This holder is already screwed to the

universal mounting bracket.

2English

M_Genius_GB_2.pmd 21.03.2005, 11:532

INSTALLATION

Mounting the Genius main unit holder

3

2

The Genius main unit can be mounted in two ways:

A. You can mount the universal mounting bracket with the supplied screw

s, or:

B. • Remove the universal mounting bracket from the main unit holder

by unscrewing the 6 screws.

• Screw the main unit holder to the dashboard or a bracket that is

designed for your type of car.

How to fix the universal mounting bracket?

In most cars, the universal mounting bracket is placed on the right side of the

gear-control console. Make sure that the mounting bracket does not block any

airbags!

1. Check for a location in your car (close to the gear-control console) where the

mounting bracket fits and where it is comfortable for use.

2. Make sure that the location in your car where you want to install your mr

Handsfree Genius is free from dust and dirt. Remove the cover of the

adhesive tape on the mounting bracket.

3. Put the upper part of the mounting bracket , with the adhesive tape, over the

edge of the console. Put the lower part of the mounting bracket , with the

angle, under the edge of the console.

4. Press both parts of the mounting bracket together until the face of the upper

part is in a horizontal position. Insert the screw in the appropriate hole.

Tighten the screw. Place the enclosed cap over the nut.

5. You have now successfully installed the universal mounting bracket.

English

3

M_Genius_GB_2.pmd

3

21.03.2005, 11:53

Connecting the electrical wires for power and mute function

A. When you want to use the cigarette plug with the curled cord, you

have to insert this plug in the cigarette lighter of your car

.

B. You can also change the curled cord of the cigarette plug into the

straight

cord. This way you can hide the cables easily and use the mut

e functions for

your car radio. This mute function

has to comply with the standard.

• Unscrew the 4 screws on the main unit holder

.

• Unplug the curled cord and plug the straight cord in the socket.

• Screw the cover plate back on the main unit holder

.

• Connect the wires of the cord with the radio by using the supplied

cable connectors.

Remark:

We recommend to connect the + wire to the continuous

power supply. This makes it able to use the car kit also when your

engine is turned off. To prevent your car’s battery from getting low

, we

recommend taking your phone out of the car kit when you leave the car

.

• The wires are color coded. They are

listed in Table 1 and each

wire should be connected to the corresponding item listed in the column B.

Table 1.

A

B

Red wire The + voltage of the car’s power supply

Black wire The negative GND connection

Brown wire Used for Car Radio muting (CRM)

and is

connected to Car Radio.

Warning: Connect only to a negative ground electrical system and

a +12

Volts power system.

English

4

M_Genius_GB_2.pmd

4

21.03.2005, 11:53

MICROPHONE CONNECTION

• For optimum performance, the microphone should be located at least 75

cm from the Genius main unit and 40-50 cm from the driver’s mouth. Make

sure that the holes of the microphone are directed towards the driver and

not towards the Genius main unit.

• Place the microphone on its location using V

elcro.

• Use the supplied clips to guide the microphone cord.

• Insert the microphone plug into the socket of the Genius main unit holder

.

• By default, the button on the microphone is in OUT

-position (unpressed

position). Only for some telephones it is necessary to put the button in the

ON-position.

ADJUSTMENT OF THE PHONE HOLDER

• Turn the big screw in the centre of the main unit holder to the left to make

movements possible.

• Put the main unit holder in the preferred position.

• Fasten the big screw to the right to fix the main unit holder in the preferred

position.

Warning: Do not move the main unit holder without unfastening the big screw.

This will damage the fixation rubber inside!

CONNECTING A CONNECTOR TO THE GENIUS MAIN UNIT

• Take the Genius main unit of the Genius main unit holder

.

• Connect the Genius connector to the Genius main unit.

• Place the Genius main unit back on the main unit holder

.

English

5

M_Genius_GB_2.pmd

5

21.03.2005, 11:53

HOW TO USE THE UNIVERSAL HOLDER?

• Release the cramps of the Genius main unit by pushing the button between

the cramps.

• Put your telephone between the cramps.

• Close the cramps in a way that they hold the telephone and it therefore

cannot fall.

• Take the telephone out of the holder without releasing the cramps by sliding

the telephone to the top side.

• To insert the telephone, you slide it from the top side between the cramps of

the Genius.

• You only have to adjust the cramps to the size of your telephone once.

CONNECTING THE PHONE TO THE CONNECTOR CABLE

• Activate the power supply to the Genius by starting the engine and connecting

the cigarette plug (if applicable).

• Connect the Genius connector to the mobile phone after the power supply

is activated.

• Charging function is activated now (if applicable).

Important:

During installation always make sure that the power cord is inserted into

the cigarette lighter and power provided before connecting your mobile

6

phone. The connection of your mobile phone should ALWAYS be the LAST

step of complete mr Handsfree installation.

HOW TO USE THE ANTI-THEFT SYSTEM

The Genius main unit can be released from the holder. When the two buttons

are pressed together, the main unit can be taken of the Genius main unit

holder. This way you can remove all important electronics and avoid being robbed.

IMPORTANT!

• Always read the ‘TROUBLE-SHOOTING’ chapter carefully.

• The mr Handsfree ‘Special Brand’ mobile phone connector can be

obtained by mail or directly from your local supplier.

• Due to the ‘Special Brand’ mobile phone connector which can be ordered

separately for each mobile phone model (Nokia, Ericsson etc.), your mr

Handsfree Genius is suitable for any type of mobile phone.

OPERATION OF MR HANDSFREE GENIUS

HOW TO SWITCH ON YOUR GENIUS WHILE USING THE CIGARETTE

PLUG?

• Insert your mr Handsfree power cord into the cigarette lighter of your car to

switch mr Handsfree in ON-position. Please note that for several brands of

cars the engine has to be turned on before the cigarette plug is activated.

• LED indicator lights on the cigarette plug.

• To switch off, you simply plug out your power cord from the cigarette lighter.

When the Built-in cable is used, and connected to the continuous power, the

Genius is always switched on.

6English

M_Genius_GB_2.pmd 21.03.2005, 11:536

HOW TO ANSWER A CALL?

• Answer incoming calls as normal on your mobile phone. For most phones

it is possible to enable the ‘auto answer’ function. In this case the phone will

answer the call automatically.

• You can start the conversation immediately by speaking into the microphone.

• Adapt to the appropriate speaker-volume by using your mobile phone control

panel.

HOW TO PLACE A CALL?

• Dial the telephone number on your mobile phone as normal.

• You can start the conversation immediately after being connected by speaking

into the microphone.

HOW TO END A CALL?

At the end of your conversation hang up your mobile phone as normal.

HOW TO USE VOICE DIALING?

If your telephone supports the voice dialing function, you can pronounce the

name of the person you want to call after activating the voice dialing function.

TROUBLE-SHOOTING

6

Problem Reason Elimination

The device does not

There is a bad connec-

You should remove main unit

charge, you don’t

tion between the main

from the holder and connect it

hear the caller, the

unit and the holder.

again. If you made the connec-

caller does not hear

tion correctly, you will hear a click.

you, and the MUTE

function does not

work.

Sometimes a high-

It is possible that your

Please place the mr Handsfree

frequency noise can

car radio does not have

Genius at least 20 cm from the

be heard in the car

enough RF distortions

car radio.

radio.

protection.

English
