Operating Instructions
1 Safety
The safety aspects of this appliance comply with accepted technical
standards and the German Appliance Safety Law. However, as manu-
facturers we also believe it is our responsibility to familiarise you with
the following safety instructions.
Electrical Safety
• The installation and connection of the new appliance must only be
carried out by qualified personnel.
• Repairs to the appliance are only to be carried out by approved
service engineers. Repairs carried out by inexperienced persons
may cause injury or serious malfunctioning. If your appliance needs
repairing, please contact your local customer center or your dealer.
Please follow these instructions, otherwise the warranty is void in the
3
event of damages.
• Flush-mounted appliances may only be operated following installa-
tion in suitable installation cabinets and workplaces which conform
to the relevant standards. This ensures sufficient protection against
contact for electrical units as required by the VDE [Association of
German Electrical Engineers].
• If your appliance malfunctions or if fractures, cracks or splits appear:
– switch off all cooking zones,
– disconnect the hob from the electricity supply.
Child Safety
The cooking zones will become hot when you cook. Therefore, always
keep small children away from the appliance.
22
Safety During Use
• This appliance may only be used for normal cooking and frying in
the home. It is not designed for commercial or industrial purposes.
• Do not use the hob to heat the room.
• Take care when plugging electric appliances into mains sockets
near the hob. Connection leads must not come into contact with the
hot surface.
• Overheated fats and oils catch fire quickly. You should supervise
cooking when preparing foods in fat or oil (e.g. chips).
• Switch off the cooking zones after use.
Safety When Cleaning
• For safety reasons do not clean the appliance with a steam jet or
high pressure cleaner.
• Clean the hob in accordance with the maintenance and cleaning in-
structions in this manual.
23
To Avoid damaging your appliance
• Do not use the hob as a work surface or for storage.
• Do not operate the cooking zones when there is no pan or the pans
are empty.
• Glass ceramic is insensitve to temperature shock and very robust;
however it is not unbreakable. Especially sharp and hard objects
that fall on the cooking surface can damage it.
• Do not use cast iron pans or pans with a rough, burred or damaged
base. Scratching may occur if the pans are slid across the surface.
• Do not place any pans on the hob frame. Scratching and damage to
the paint may occur.
• Make sure that no acidic liquids, e.g. vinegar, lemon or descaling
agents, are spilt onto the hob frame, since these cause dull spots.
• If sugar or a preparation with sugar comes into contact with the hot
cooking zone and melts there it must be cleaned off immediately
with a scraper while it is still hot. If it cools, the surface may be dam-
aged when it is removed.
• Keep all items and materials that can melt away from the ceramic
glass surface, e.g. plastics, aluminium foil, or oven foils. If some-
thing of this nature should melt onto the ceramic glass surface, it
must also be removed immediately using the scraper.
24
2 Disposal
Disposing of the packaging material
• All parts of the packaging can be fully recycled; foil and expanded
polyurethane parts are appropriately identified. Please dispose of
packaging material and, if appropriate, your old appliance properly.
• Please follow the national and regional regulations and material
identification (material separation, refuse collection, waste disposal
sites).
Information on disposal
• The appliance must not be disposed of with household rubbish.
• You can obtain information about collection dates or public refuse
disposal sites from your local refuse department or council.
• Warning! Before disposing of old appliances make them inoperable.
Remove the mains lead.
25
The Key Features of Your ApplianceAppliance
• Ceramic glass cooking surface: The appliance has a ceramic
glass cooking surface and 4 rapid response cooking zones. The par-
ticularly powerful radiant heater elements significantly shorten the
amount of time taken for the zones to heat up.
• Cleaning: The advantage of the glass ceramic cooking surface is its
easy cleaning. The smooth surface is easy to keep clean (see sec-
tion: “Cleaning and care”).
• Double-ring cooking zone: The cooking surface possesses a dou-
ble-ring cooking zone. This provides the appliance with a cooking
zone with a variable size, for instance for smaller pots. This is a sav-
ing in energy.
• Frying zone: The hob has a special frying zone. This can be set to
either the round or the oval shape, for example when using a fryer.
• Residual heat indicator: The residual heat indicator lights up if the
cooking zone becomes so hot that there is a risk of burning.
Description of the hob

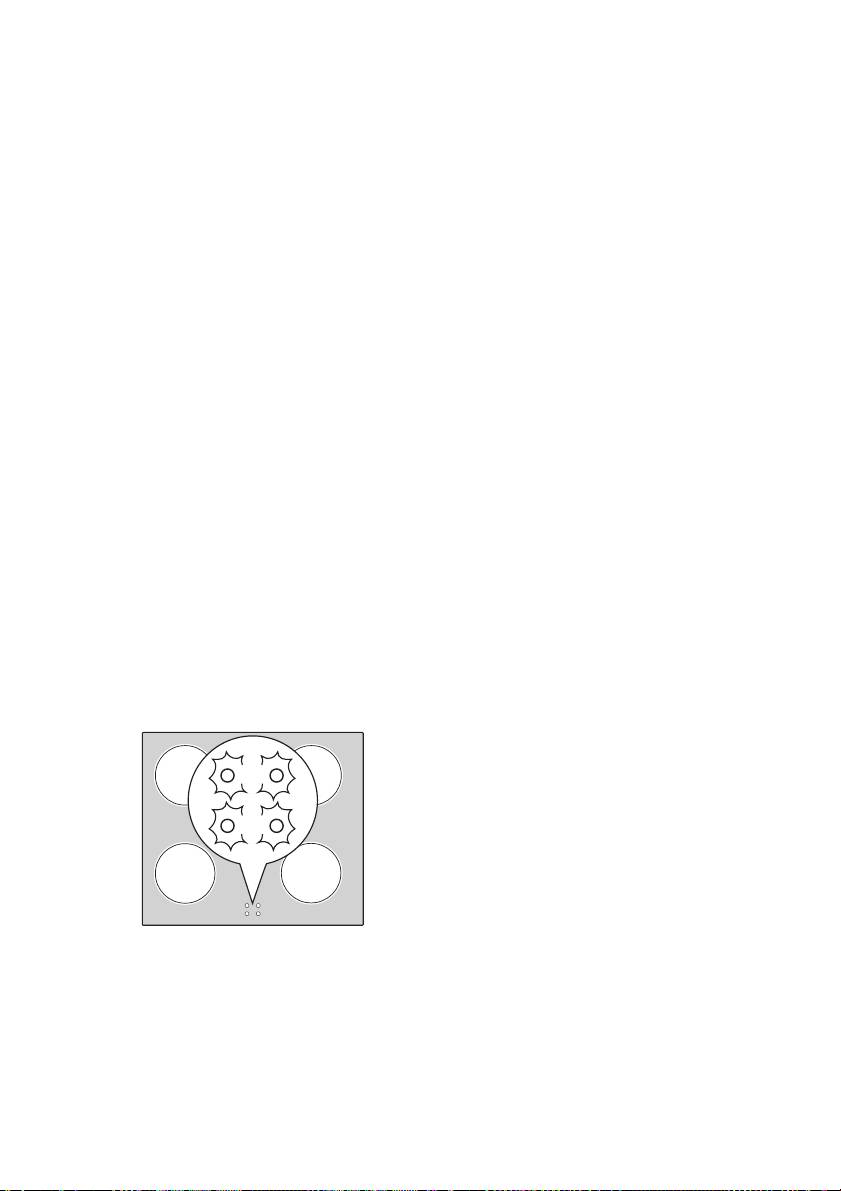

Cooking surface layout
Single ring cooking zone
Casserole zone
1200 W
2400 W
180 mm
Residual heat
Double ring cooking zone
Single ring cooking zone
display
2200 W
1800 W
26
Before Using for the First Time
Initial Cleaning
Wipe the ceramic glass surface with a damp cloth.
Important: Do not use any caustic, abrasive cleaners! The surface
1
could be damaged.
27
Operating the Hob
When a cooking zone is switched on, it may hum briefly. This is a
3
characteristic of all glass ceramic cooking zones and does not impair
either the function or the life of the appliance.
The cooking zones are operated and multiple ring zones activated
3
using the ring switches on the cooker or switch box as described
in the relevant set of instructions.
Residual heat indicator
The ceramic glass hob is equipped with a residual heat indicator, a
control lamp is allocated to each cooking zone. This lights up as soon
the corresponding cooking zone is hot and warns against inadvertant
contact.
The remaining heat lamp only goes out when the cooking zone has
cooled down even when the cooking zone is switched Off.
You can use the residual heat for melting and keeping food warm.
2
Important! As long as the residual heat indicator is illuminated, there
1
is a risk of burns.
Important! If the power supply is interrupted the residual heat indica-
1
tor also go out and information about residual heat will no longer be
available. However, it is still possible to burn yourself. This can be
avoided by being particularly attentive.
28
Uses, Tables and Tips
Pans
The better the pan, the better the results.
• You can recognise good pans by their bases. The base should be as
thick and flat as possible.
• Pay particular attention when buying new pans to the diameter of
the base. Manufacturers often give only the diameter of the upper
rim.
• Pots with aluminium or copper bases can cause metallic discolour-
ing on the ceramic glass surface, which is very difficult or impossible
to remove.
• Do not use cast iron pans or pans with a rough, burred or damaged
base. This can produce permanent scratching if the pan is slid
across the surface.
• When cold, pan bases are normally bowed slightly
inwards (concave). They should never be bowed
outwards (convex).
• If you wish to use special types of pan (e.g. a
pressure cooker, simmering pan, wok, etc.),
please observe the manufacturer's instructions.
Energy saving tips
2
You can save valuable energy by observing the following points:
• Always position pots and pans before switching on the cooking
zone.
• Dirty cooking zones and pan bases increase
power consumption.
• Whenever possible always position the lids firmly
on pots and pans to cover completely.
• Switch off the cooking zones before the end of the
cooking time to use the residual heat such as to
keep foods warm or for melting.
• The base of the pan should be
the same size as the cooking
zone.
• Using a pressure cooker reduces
cooking times by up to 50%.
29
Settings for Cooking on the Rings
The setting position required for cooking processes is dependent on
the quality of the pots and on the type and amount of the food.
Switch
Cooking method Examples
position
Starting of cooking and roasting, cooking of large
9 Parboiling
quantities of liquid, then switch-back to appropri-
ate setting
Frying
French fries, pan-cakes
7-9
Quick frying
Fillet of pork and beef, steaks goulash
Roasting
Frying of meat, schnitzel, cutlets, meat-balls,
6-7
Frying without
sausages, liver, fish-fillet in deep fat, Frying eggs
crust
or chops
Boiling
Boiled potatoes, stews, soups, hot-pot, sauces in
4-5
Braising
large quantities
Simmering of vegetables, braising of meat, lightly
Simmering
3-4
cooking
Stewing
small amount of fruit with little liquid
Simmering of rice and food with milk (sometimes
Gentle
2-3
stirring), Stewing of smaller amount of potatoes or
simmering
vegetables, Warming up of prepared meal
Omelette, fried eggs, Hollandaise sauce, Keeping
1-2 Melting
warm a meal or small amount of hot-pot
Melting of butter, chocolate, gelatine.
0 Residual heat, OFF-position
When heating up or frying, we recommend heat setting “9", and then
3
continue cooking foods at an appropriate lower heat setting.
30
Cleaning and Care
Hob
Important: Cleaning agents must not come into contact with the hot
1
ceramic glass surface! All cleaning agents must be removed with
plenty of clean water after cleaning because they can have a caustic
effect when the rings are next heated!
Do not use any aggressive cleaners such as grill or oven sprays,
coarse scourers or abrasive pan cleaners.
Clean the ceramic glass surface after each use when it is warm to the
3
touch or cold. This will avoid spillages becoming burnt on.
Remove scale and water marks, fat spots and discolouration with
a metallic shimmer using a commercially available ceramic glass or
stainless steel cleaner such as “Hob Brite”.
Light Soiling
1. Wipe the ceramic glass surface with a damp cloth and a little washing
up liquid.
2. Then rub dry with a clean cloth. Remnants of cleaner must not be
left on the surface.
3. Thoroughly clean the entire ceramic glass cooking surface once a
week with a commercially available ceramic glass or stainless steel
cleaner.
4. Then wipe the ceramic glass surface using plenty of clean water
and rub dry with a clean fluff-free cloth.
Stubborn Soiling
1. To remove food that has boiled
over or stubborn splashes, use a
glass scraper.
2. Place the glass scraper at an angle
to the ceramic glass surface.
3. Remove soiling by sliding the
blade.
You can obtain glass scrapers and
3
ceramic glass cleaners from spe-
cialist retailers.
31
1 Problem Dirt
1. Remove burnt-on sugar, melted
plastic, aluminium foil or other melta-
ble materials with a glass scraper
immediately and while still hot.
Important: There is a risk of burning
1
yourself when the glass scraper is
used on a hot cooking zone!
2. Then clean the hob normally when it
has cooled down.
If the cooking zone on which
3
something has melted has already
cooled down, warm it up again for cleaning.
Scratches or dark marks on the glass ceramic surface, caused for ex-
ample by a pan base with sharp edges, cannot be removed. However,
they do not impair the function of the hob.
Hob Frame
Important! Do not put vinegar, lemon-juice or scale removers on the
1
hob frame, otherwise dull spots will appear.
1. Wipe the frame with a damp cloth and a little washing up liquid.
2. Soften dried dirt with a wet cloth. Then wipe off and rub dry.
32
What to do if ...
Rectifying faults
It is possible that faults have been caused by a minor error, which you
can correct yourself with the help of the following instructions. Do not
attempt any further repairs if the following instructions do not help in
each specific case.
Warning! Repairs to the appliance are only to be carried out by ap-
1
proved service engineers. Improperly effected repairs may result in
considerable risk to the user. If your appliance needs repairing, please
contact your specialist dealer or customer service.
What to do when …
.... the cooking zone does not function?
Check whether
– the fuses in the house installation (fuse box) are intact. If the fuses
switch off, or blow, several times, please call an authorized electrical
technician.
– the corresponding cooking zone is switched ON and the desired de-
gree of heat has been set.
– for cooking zones with several rings, whether the heating circle has
been switched On.
If it is desired to contact the customer services because of incorrect
operation, then the visit of the customer service technician during the
guarantee time will not be free of charge.
33
Installation Instructions
Important! The new appliance may only be installed and connected
1
by qualified personnel.
Please observe this instruction, otherwise the warranty will not cover
any damage that may occur.
Technical Data
Appliance dimensions
Width 572 mm
Depth 502 mm
Height 49 mm
Worktop cut-out dimensions
Width 560 mm
Depth 490 mm
Corner radius R5
Power consumption
Front left dual-ring cooking zone
ø 120/210 mm 1000/2200 W
Rear left cooking zone ø 145 mm 1200 W
Rear right multipurpose cooking zone
ø 170/265 mm 1500/2400 W
Front right cooking zone ø 180 mm 1800 W
Heating element voltage 230 V ~50 Hz
Total l o a d 7,6 kW
34
Regulations, Standards, Directives
This appliance meets the following standards:
• EN 60 335-1 and EN 60 335-2-6
relating to the safety of electrical appliances for household use and
similar purposes and
• EN 60350, or DIN 44546 / 44547 / 44548
relating to the operating features of electric cookers, hobs, ovens,
and grills for household use.
• EN 55014-2 / VDE 0875 part 14-2
• EN 55014 / VDE 0875 part 14/1999-10
• EN 61000-3-2 / VDE 0838 part 2
• EN 61000-3-3 / VDE 0838 part 3
relating to basic requirements for electro-magnetic compatibility
protection (EMC).
This appliance complies with the following EU Directives:
;
• 93/68/EWG CE Labelling Directive
• 73/23/EWG dated 19.02.1973 (Low Voltage Directive) including
Amending Directive 90/683/EWG
• 89/336/EWG dated 03./05.1989 (EMC Directive
including Amending Directive 92/31/EWG).
35
1 Safety Instructions for the Installer
• A device must be provided in the electrical installation which allows
the appliance to be disconnected from the mains at all poles with a
contact opening width of at least 3 mm.
Suitable isolation devices include line protecting cut-outs, fuses
(screw type fuses are to be removed from the holder), earth leakage
trips and contactors.
• In respect of fire protection, this appliance corresponds to type Y
(EN 60 335-2-6). Only this type of appliance may be installed with a
high cupboard or wall on one side.
• Drawers may not be fitted underneath the hob.
• The installation must guarantee shock protection.
• The kitchen unit in which the appliance is fitted must satisfy the sta-
bility requirements of DIN 68930.
• For protection against moisture, all cut surfaces are to be sealed
with a suitable sealant.
• On tiled work surfaces, the joints in the area where the hob sits must
be completely filled with grout.
• On natural, artificial stone, or ceramic tops, the snap action springs
must be bonded in place with a suitable artificial resin or mixed ad-
hesive.
• Ensure that the seal is correctly seated in the frame and that it is
seated against the work surface without leaving any gaps. Addi-
tional silicon sealant must not be applied; this will make removal
more difficult when servicing.
• The hob must be pressed out from below when removed.
36
Electrical Connection
• Before connection, check whether the nominal voltage of the appli-
ance, the voltage stamped on the nameplate, is in agreement with
the available supply voltage and the nominal voltage of the combi-
nation appliance. The nameplate is situated on the under-covering
of the cooking surface.
• Bring the connection plug of the cooking unit together with the cor-
responding parts of the built-in stove or switchbox and connect
them tightly. Press the connection cable into the side of the oven
door.
• Following connection to the mains supply, all cooking zones must
1
be switched on, at the maximum setting, one after the other for ap-
prox. 30 seconds to check that they function correctly.

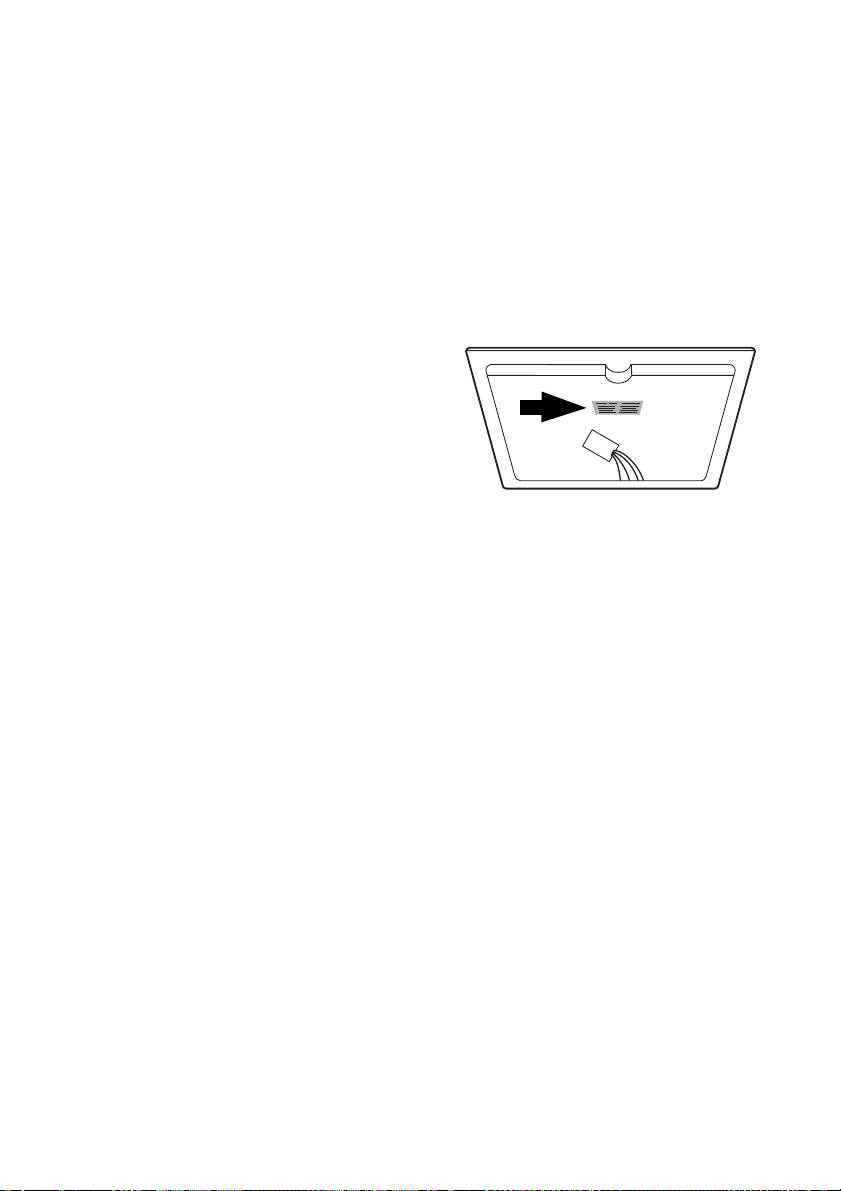

Rating Plate
37
38
Service
In the “What to do if …” section a number of malfunctions are listed
that you can rectify yourself Look there first if a fault occurs.
Is it a technical fault?
If so, please contact your customer service centre. (You will find
addresses and telephone numbers in the section “Customer Service
Centres”.)
Always prepare in advance for the discussion. This will make diagno-
sis of the problem easier and also make it easier to decide if a custo-
mer service visit is necessary:
Please make a note of the following
information as accurately as pos-
sible:
• What form does the fault take?
• Under what circumstances does
the fault occur?
Prior to the telephone call it is impor-
tant that you make a note of the fol-
lowing appliance code numbers that
are given on the rating plate:
• PNC code (9 digits),
• S No code (9 digits).
We recommend that you record the code numbers here so that you al-
ways have them to hand:
PNC . . . . . . . . .
S No . . . . . . . . .
When do you incur costs even during the warranty period?
• if you could have remedied the fault yourself using the fault table
(see section “What do I do if ...”),
• if the customer service technician has to make several journeys be-
cause he was not provided with all the relevant information before
his visit and therefore, forexample, has to fetch spare parts. These
multiple trips can be avoided if you prepare your phone call as de-
scribed above.
39
Arvoisa asiakas,
Lue tämä käyttöohje huolellisesti läpi.
Kiinnitä erityistä huomiota ensimmäisillä sivuilla olevaan “Turvallisuus-
ohjeita” -kappaleeseen. Säilytä tämä käyttöohje myöhempää käyttöä
varten. Anna käyttöohje laitteen mukana mahdolliselle uudelle omista-
jalle.
Tekstissä käytetään seuraavia symboleita:
Turvallisuusohjeet
1
Varoitus: Oman turvallisuutesi kannalta tärkeät ohjeet.
Huomautus: Ohjeet, jotka auttavat välttämään laitteen vioittumista.
Ohjeita ja käytännön vinkkejä
3
Ympäristöä koskevia tietoja
2
1. Nämä numerot ohjaavat sinua vaiheittain laitteen käytössä.
2. ...
3. ...
Painettu ympäristöystävällisesti valmistetulle paperille.
Ekologisesti ajatteleva toimii myös ekologisesti ...
40
